Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Remove the retainer (3) from the brake pedal pin.
  3. Unsnap the switch (2) and pushrod (4) from the brake pedal (1) pin.

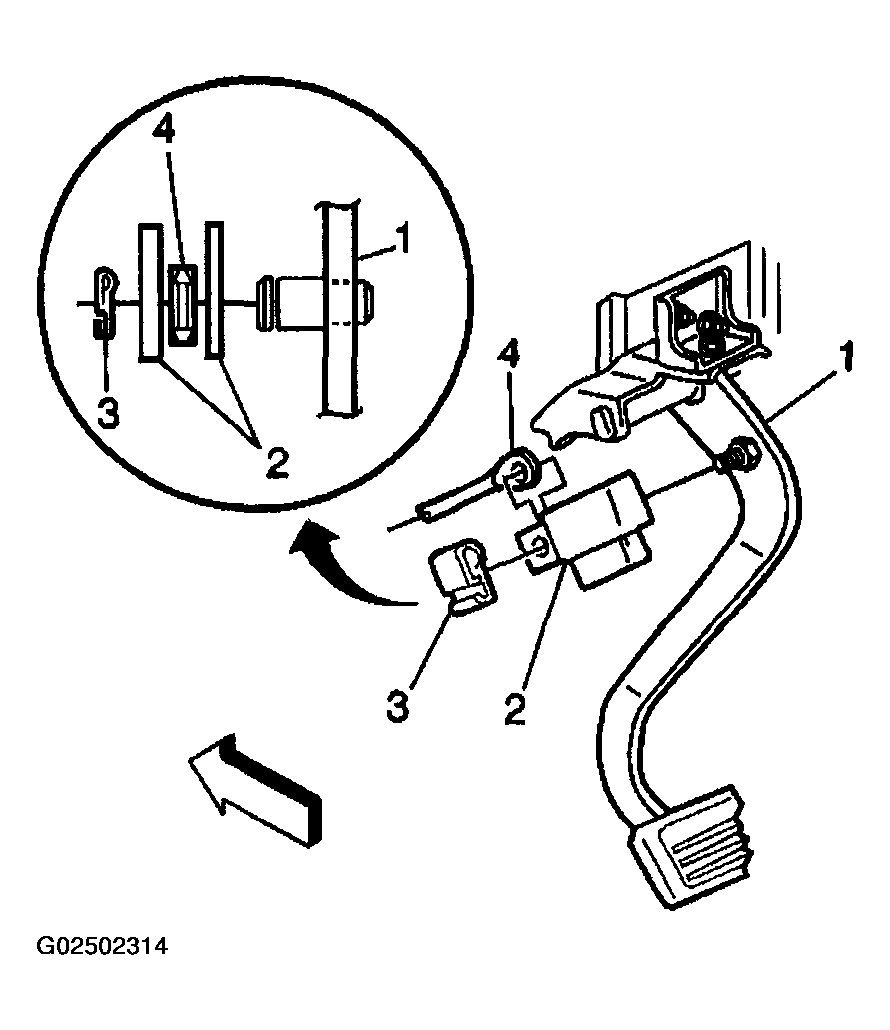

    Fig 1: Replacing Stop Lamp Switch
    G02502314Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector.

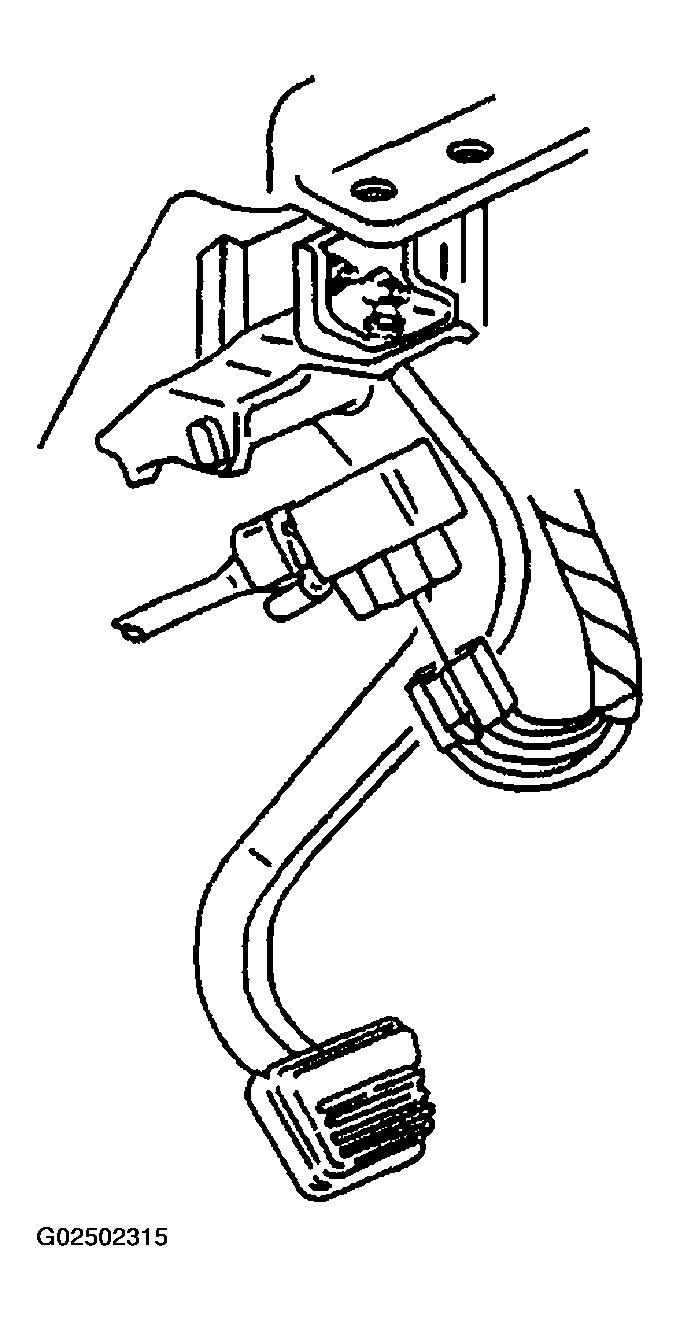

    Fig 2: Stop Lamp Switch Electrical Connector
    G02502315Courtesy of GENERAL MOTORS CORP.
