Disassembly Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the master cylinder from the vehicle. Refer to Master Cylinder Replacement .
  2. Secure the master cylinder in a vise. Do not clamp the master cylinder body, secure only at the flange.

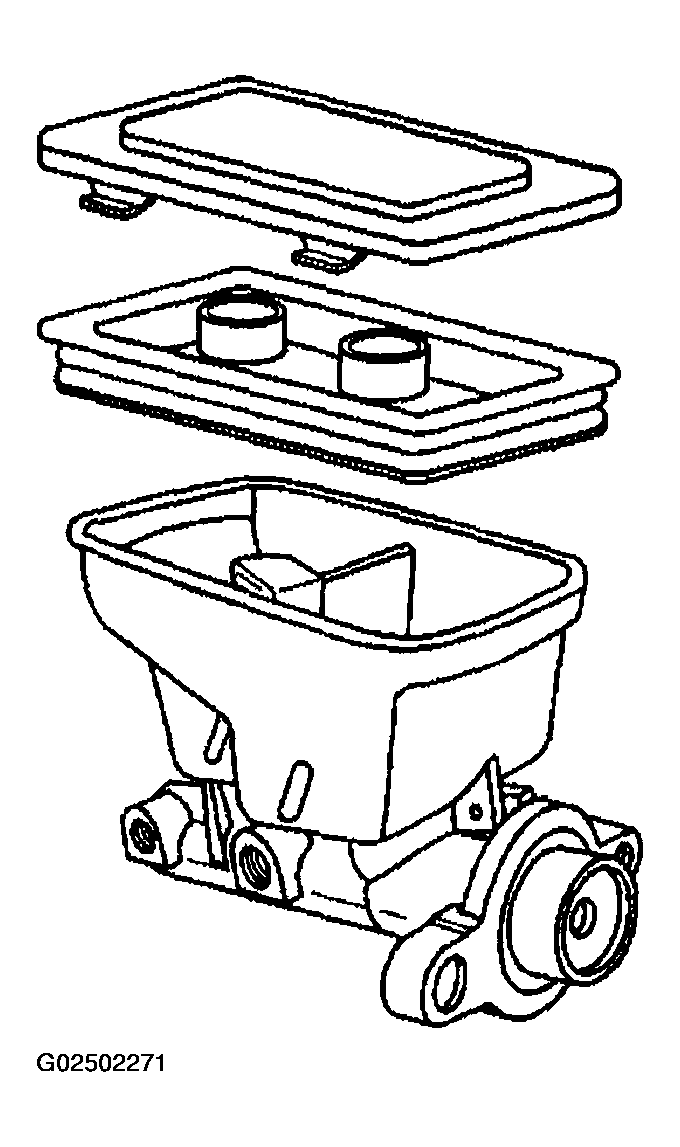

    Fig 1: Master Cylinder Reservoir
    G02502271Courtesy of GENERAL MOTORS CORP.
  3. Carefully tap out the reservoir retaining pins.

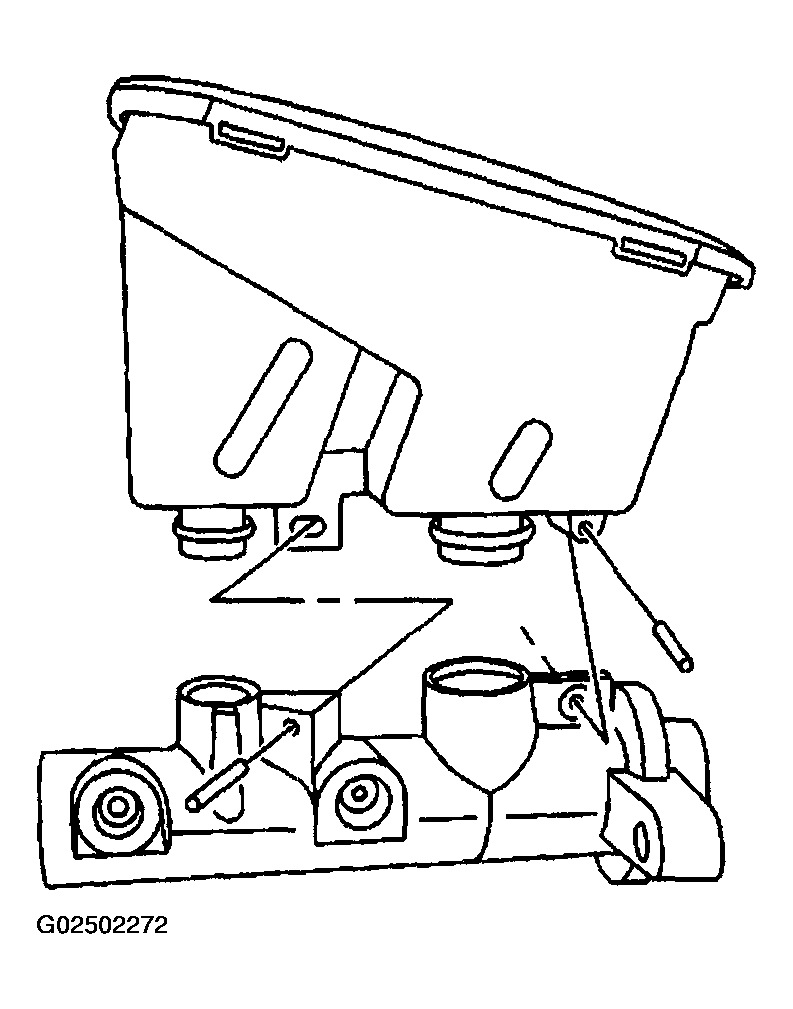

    Fig 2: Master Cylinder Reservoir Retaining Pins
    G02502272Courtesy of GENERAL MOTORS CORP.
  4. Remove the reservoir from the master cylinder by pulling the reservoir straight up and away from the cylinder.
  5. Remove the seals from the master cylinder.

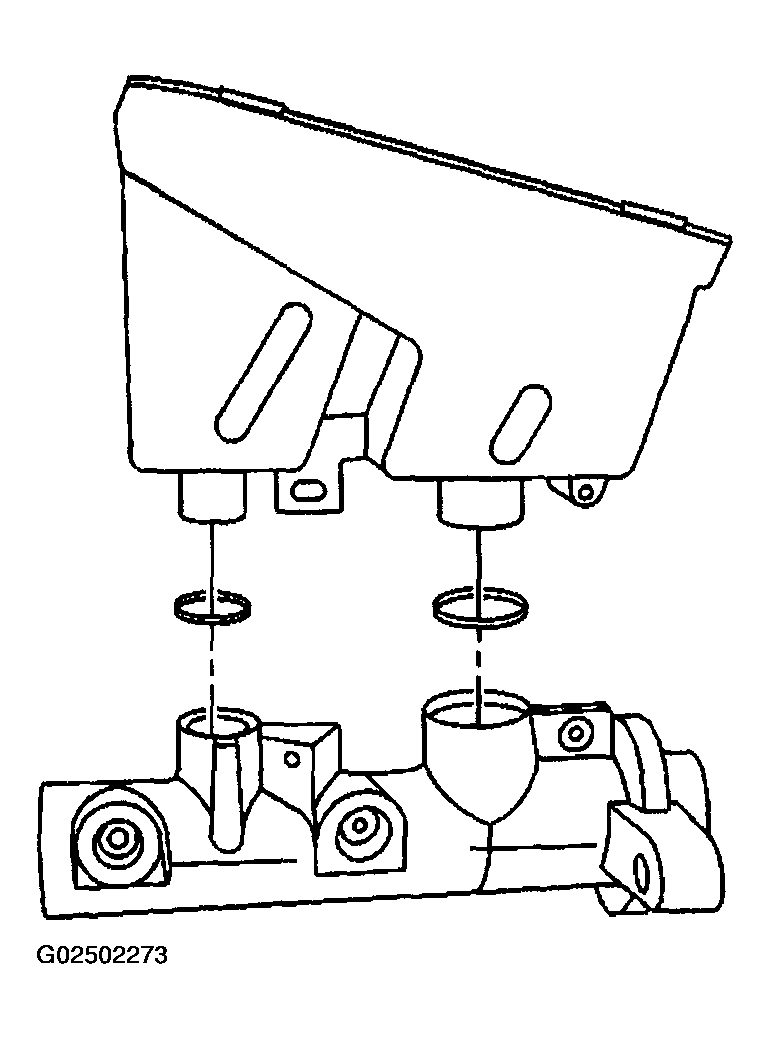

    Fig 3: Master Cylinder Reservoir Seals
    G02502273Courtesy of GENERAL MOTORS CORP.
