Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake and block the wheels.
  2. Disconnect the brake pipes from the master cylinder.

    Important:  Install a rubber cap or plug to the exposed brake pipe fitting ends in order to prevent brake fluid loss and contamination.

  3. Plug the open brake pipe ends.

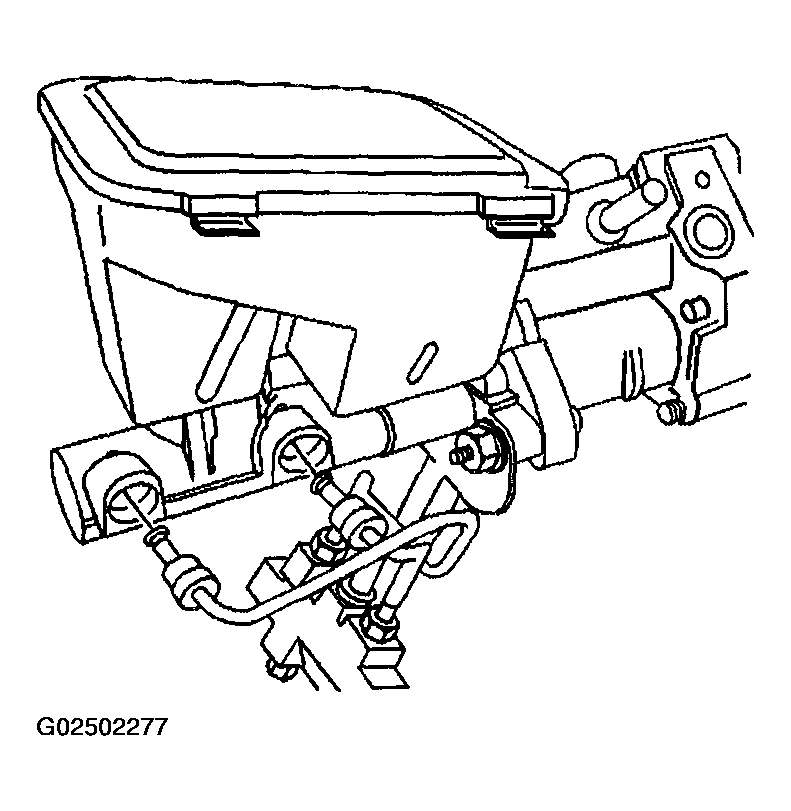

    Fig 1: Disconnecting Brake Pipes From Master Cylinder
    G02502277Courtesy of GENERAL MOTORS CORP.
  4. Remove the master cylinder nuts and bolts.
  5. Remove the combination valve bracket.
  6. Remove the master cylinder from the vehicle.
  7. Drain the master cylinder of all brake fluid.
