Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Clean all dirt and foreign material from the brake hoses and brake pipe fitting.

    Important:  Install a rubber cap or plug to the exposed brake pipe fitting ends in order to prevent brake fluid loss and contamination.

  3. Use a backup wrench on the hose fitting, disconnect the brake pipe fittings from the junction block, then cap or plug the brake pipe fitting ends. Do not bend the brake pipe or the bracket.

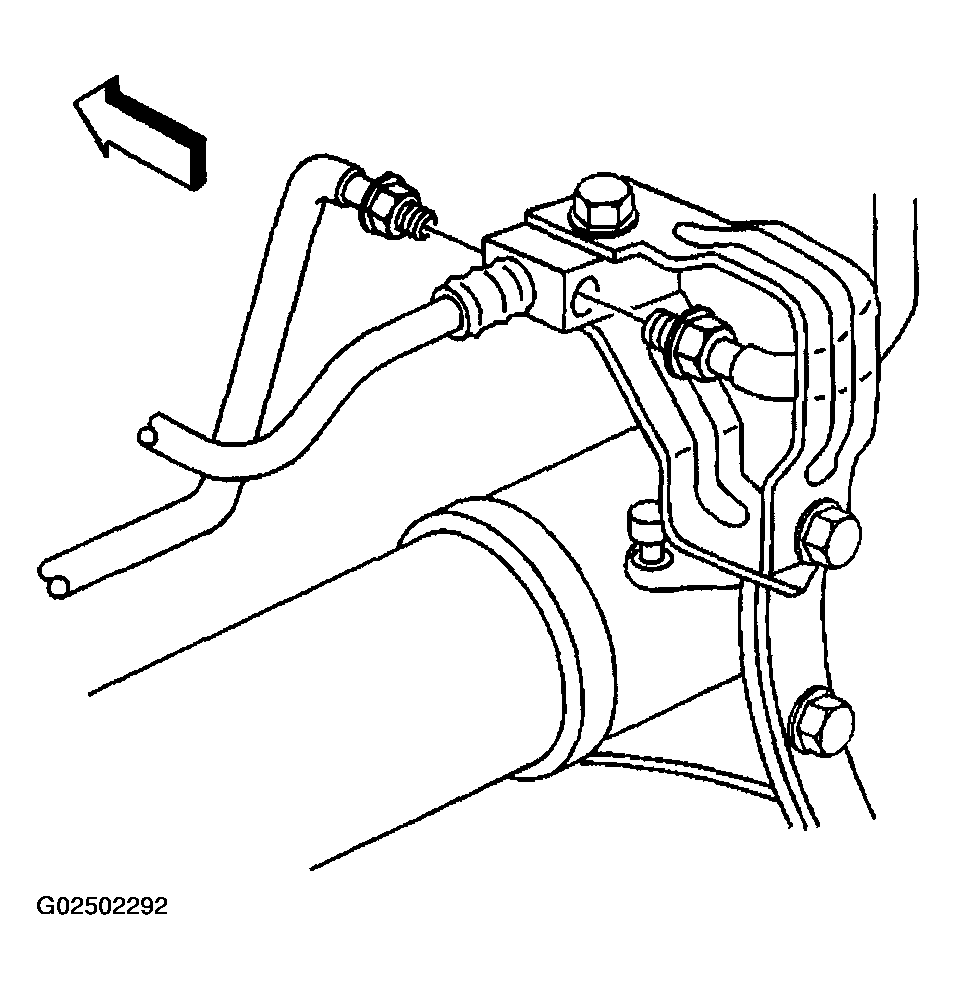

    Fig 1: Brake Pipe Fittings At Junction Block
    G02502292Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the brake pipe fitting (9).
  5. Remove the brake hose retaining clip (2).
  6. Remove the junction block bolt (5).
  7. Remove the rear brake hose (4).

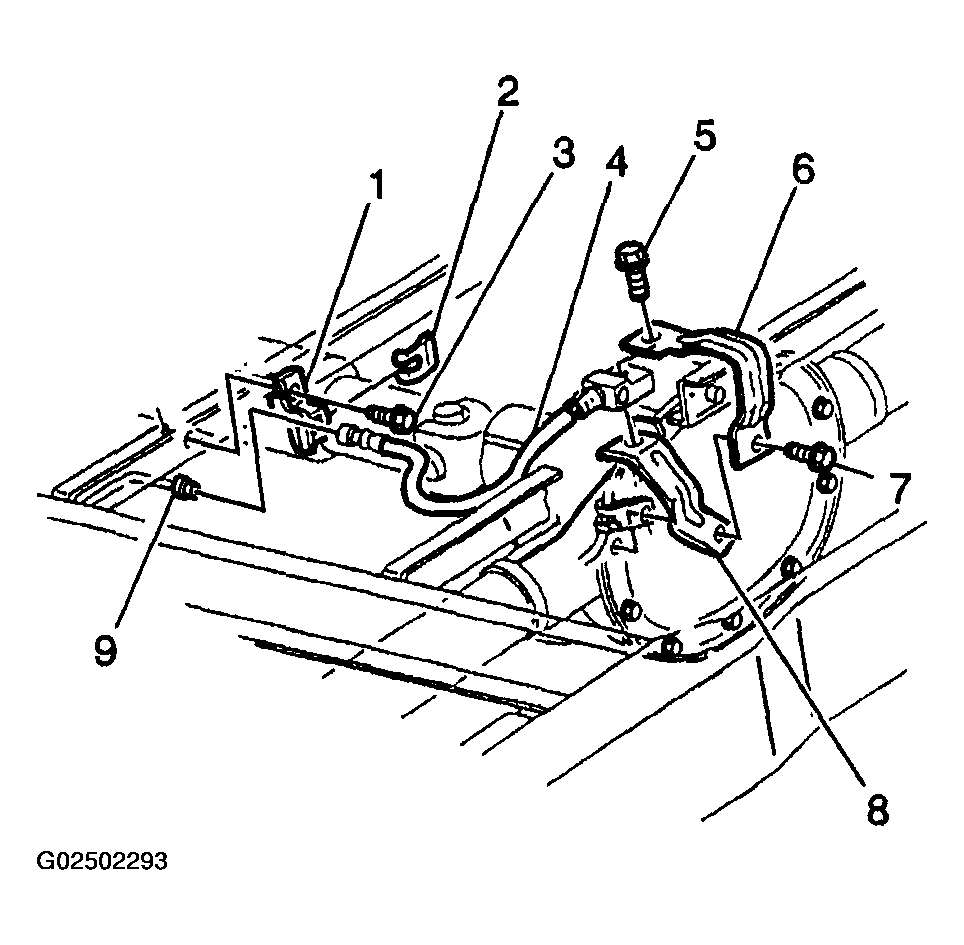

    Fig 2: Brake Hose Replacement - Rear
    G02502293Courtesy of GENERAL MOTORS CORP.
