Test Description

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table:

18) - Drum brake backing plates that come in contact with brake drums may cause brake system noise.

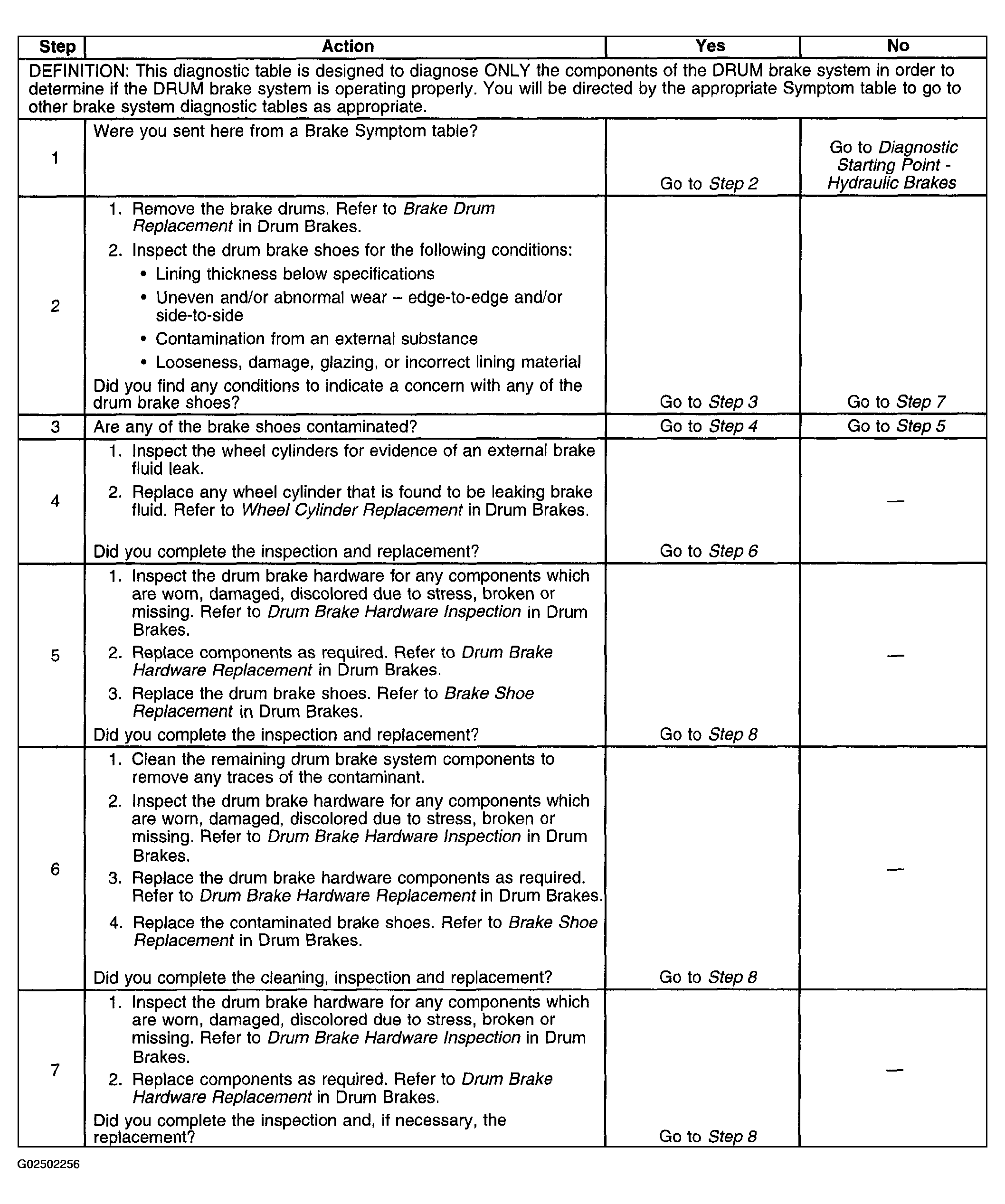

Fig 1: Drum Brake System Diagnosis (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

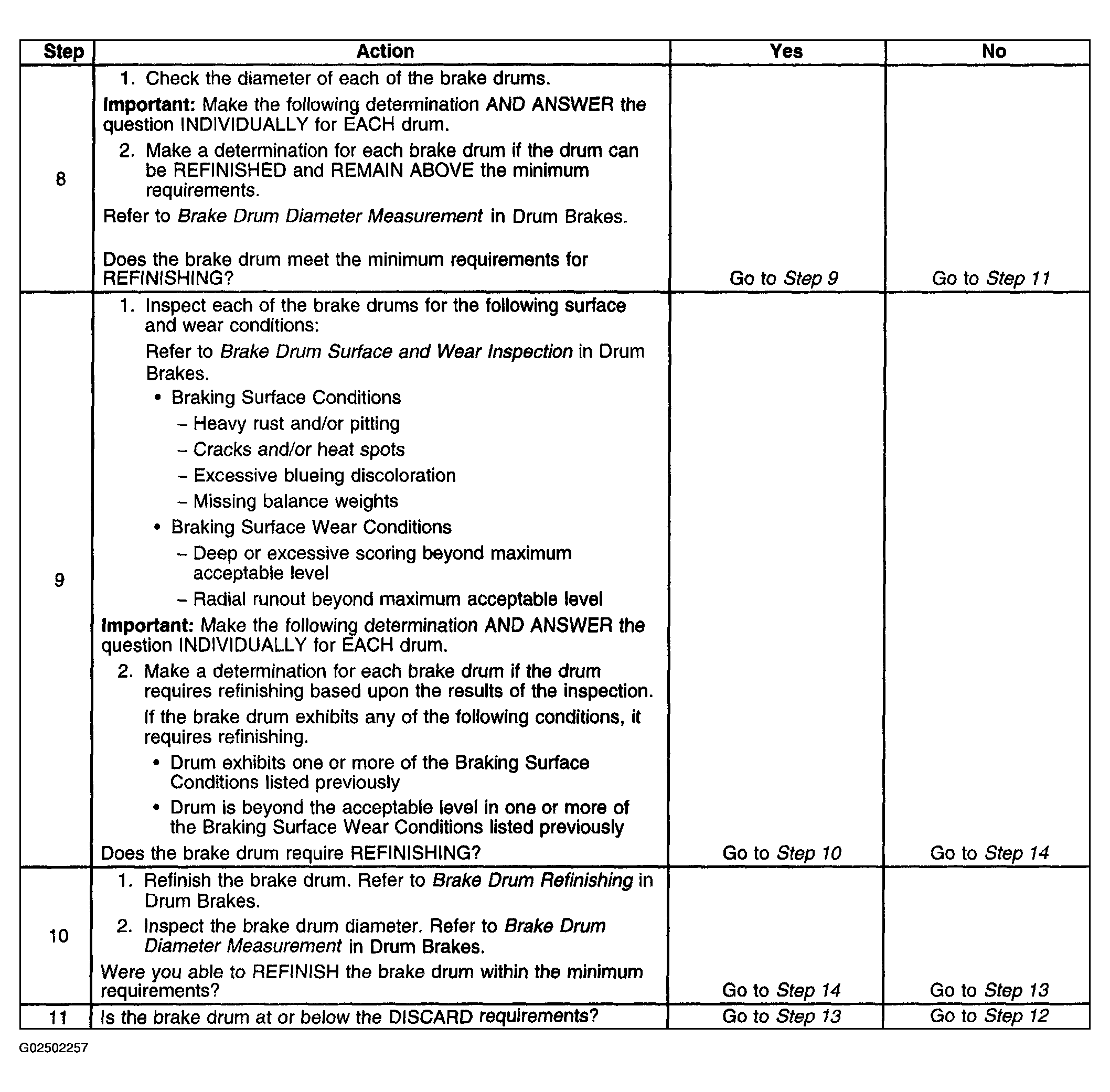

Fig 2: Drum Brake System Diagnosis (Steps 8-11)

Courtesy of GENERAL MOTORS CORP.

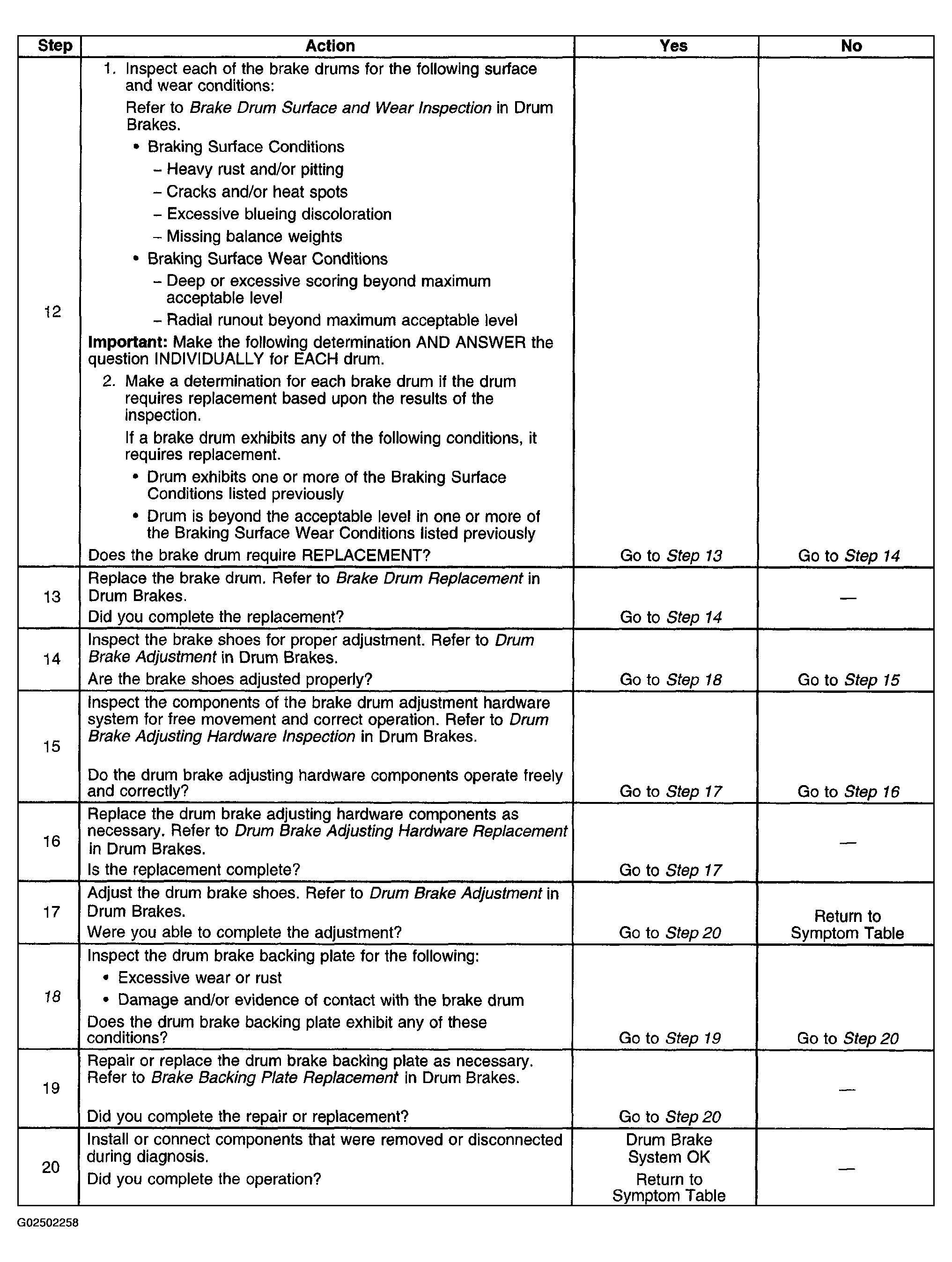

Fig 3: Drum Brake System Diagnosis (Steps 12-20))

Courtesy of GENERAL MOTORS CORP.
