WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

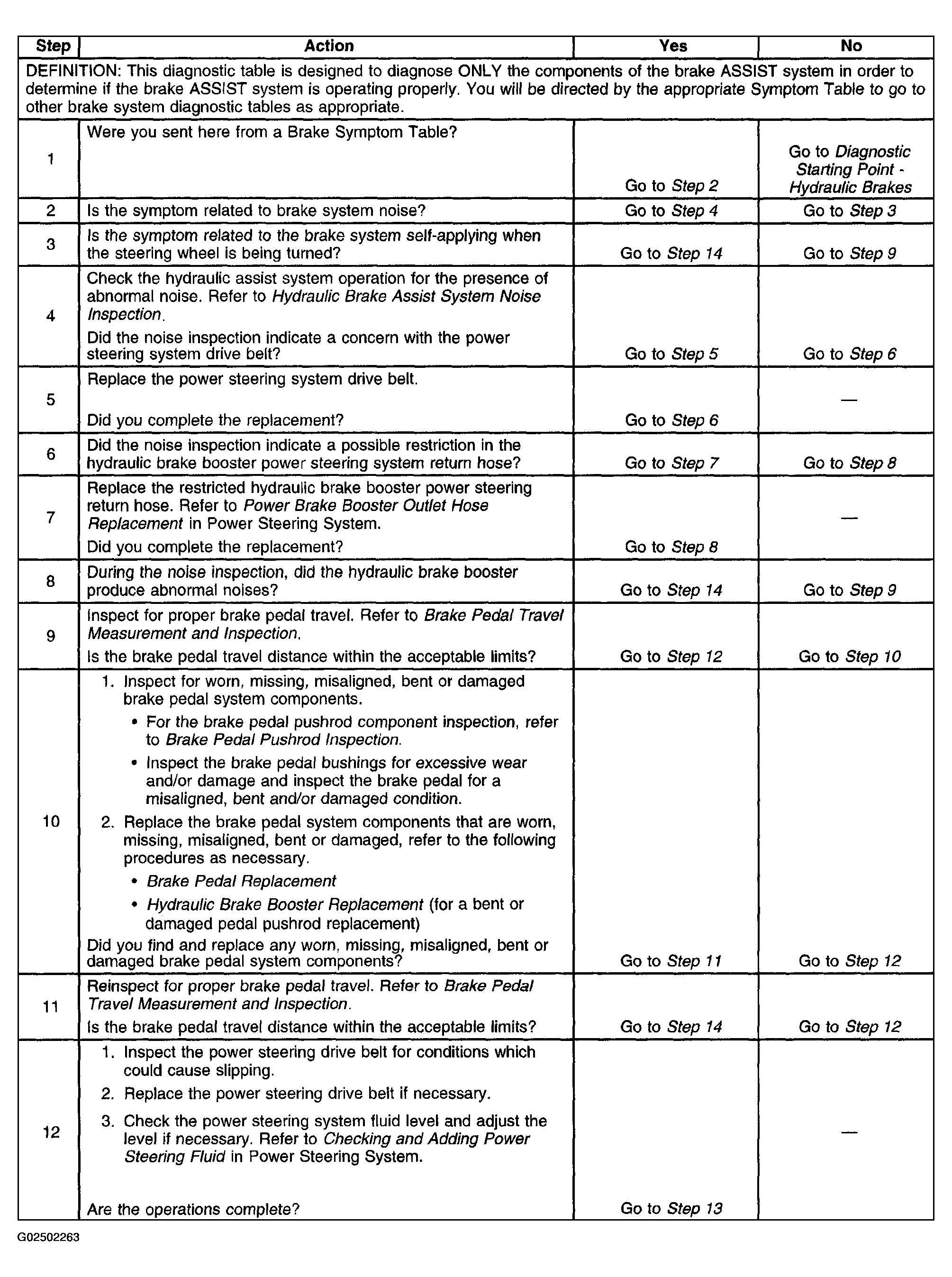

Fig 1: Brake Assist System Diagnosis (Steps 1-12)
Courtesy of GENERAL MOTORS CORP.

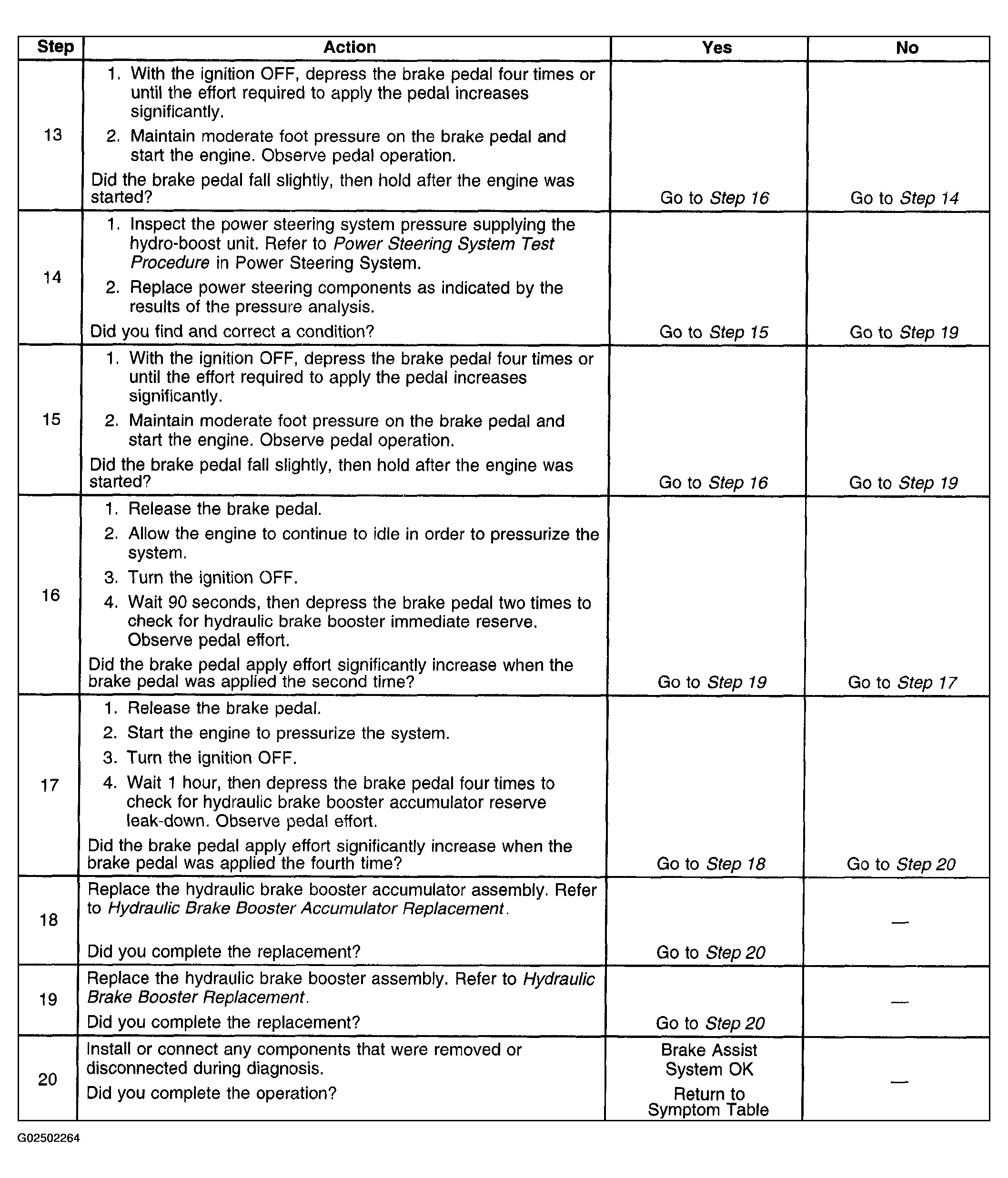

Fig 2: Brake Assist System Diagnosis (Steps 13-20)
