Section 770 (General Hydraulic Brake System)
>>
Component Locator
>>
Hydraulic Brakes Connector End Views
Hydraulic Brakes Connector End Views
WARNING:
This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Brake Pressure Differential Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

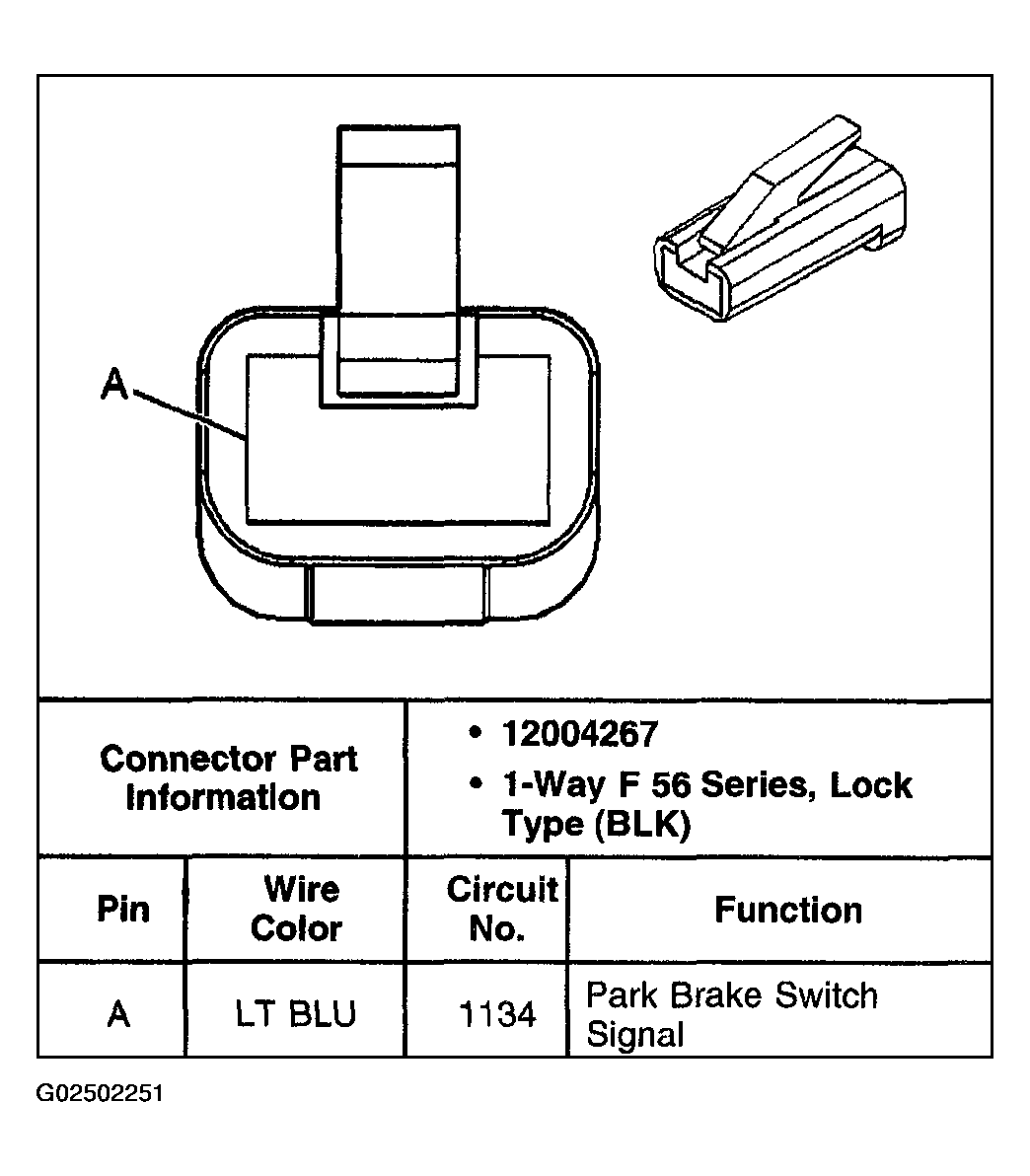

Fig 2: Identifying Park Brake Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
