Power & Grounding Connector End Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

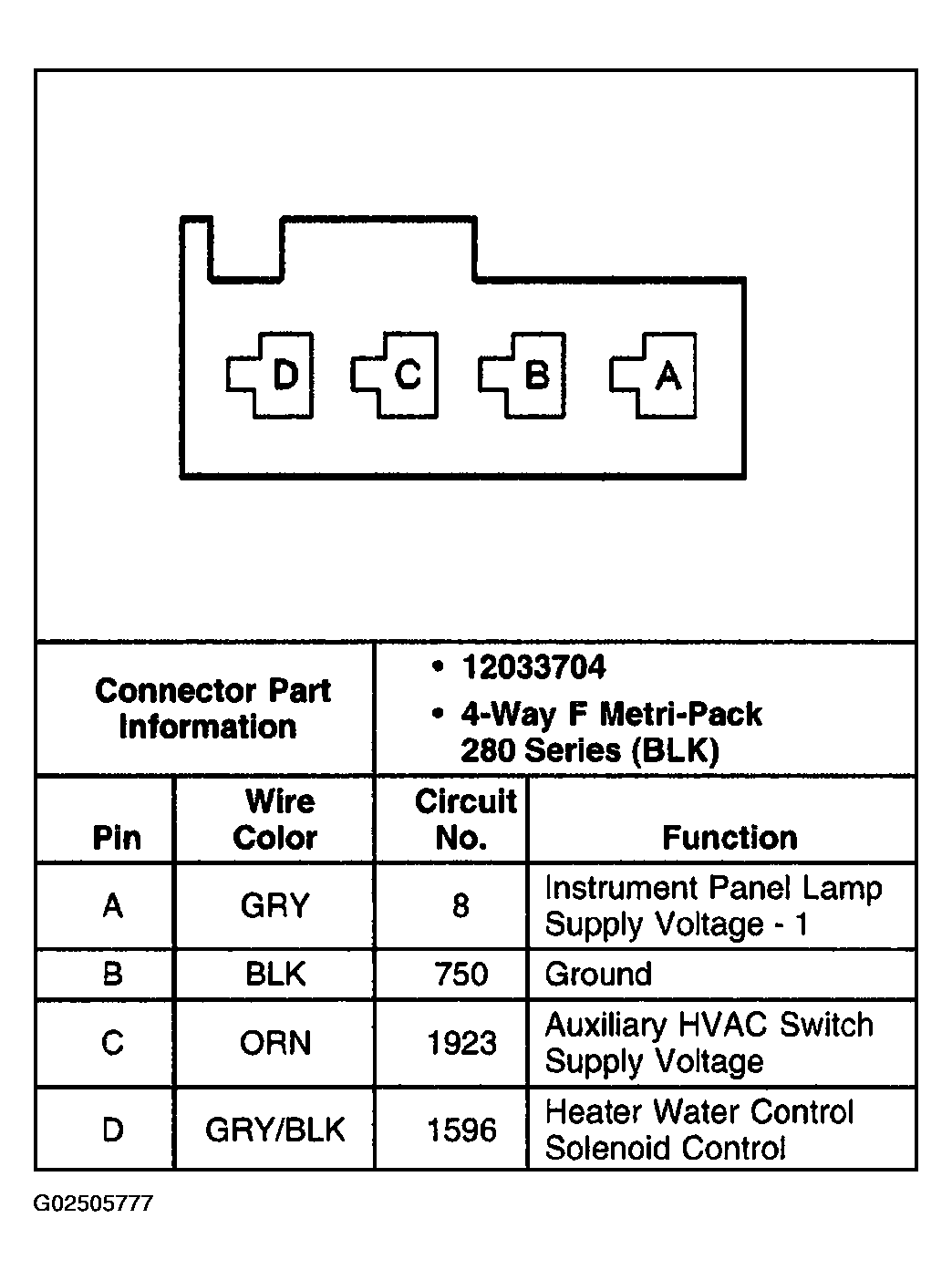

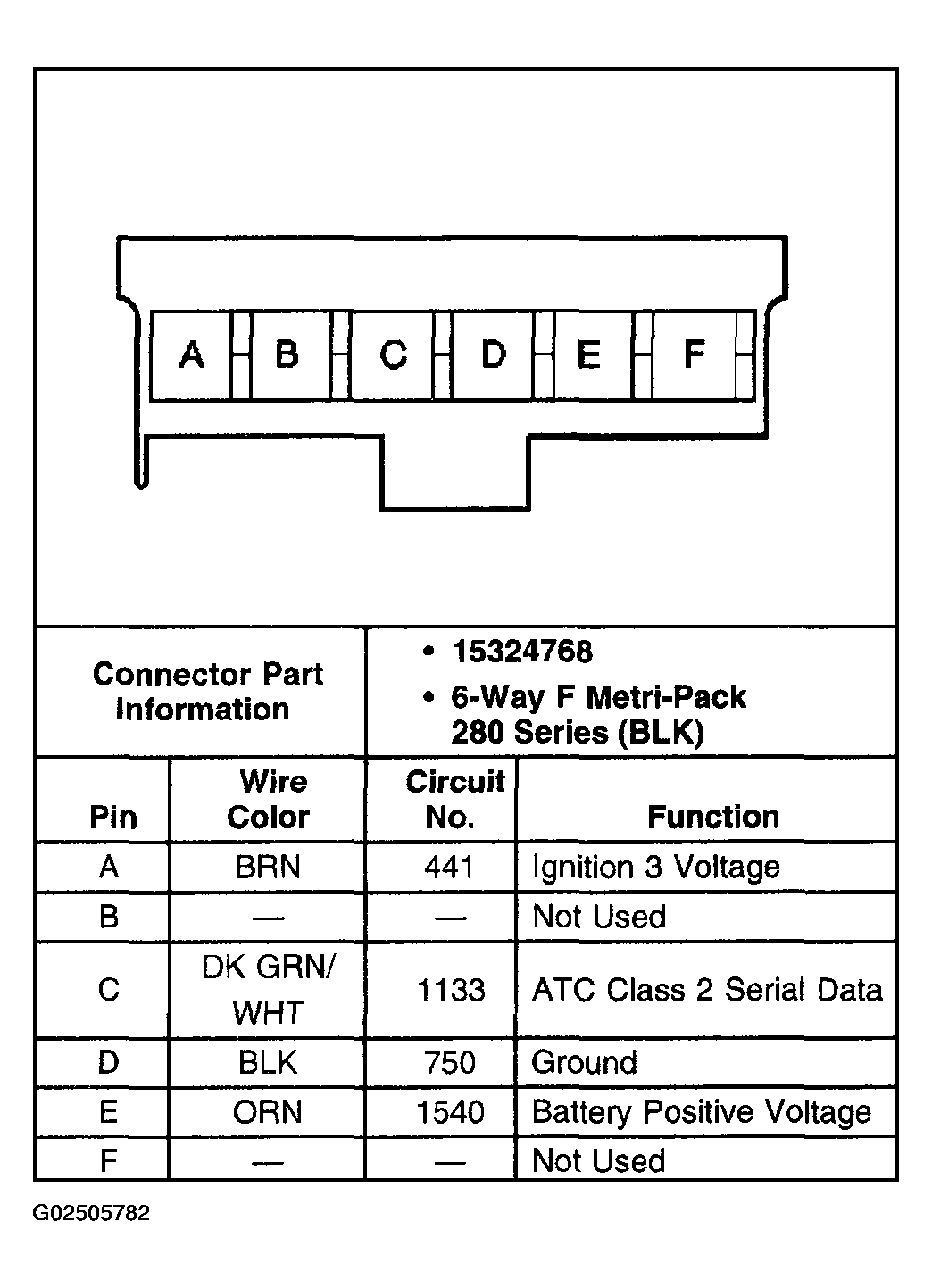

Fig 1: Identifying Auxiliary Power Outlet - Front No. 1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

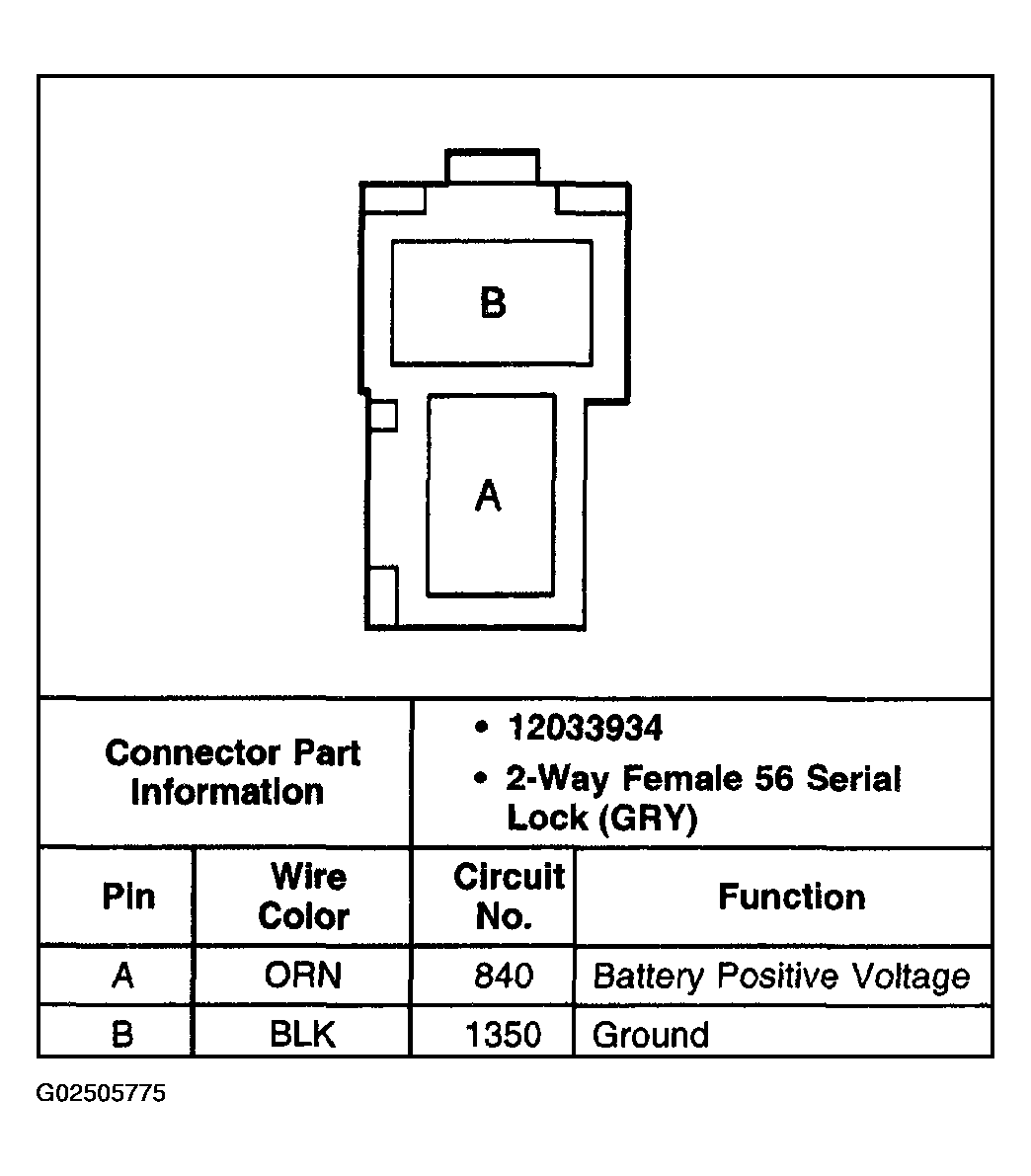

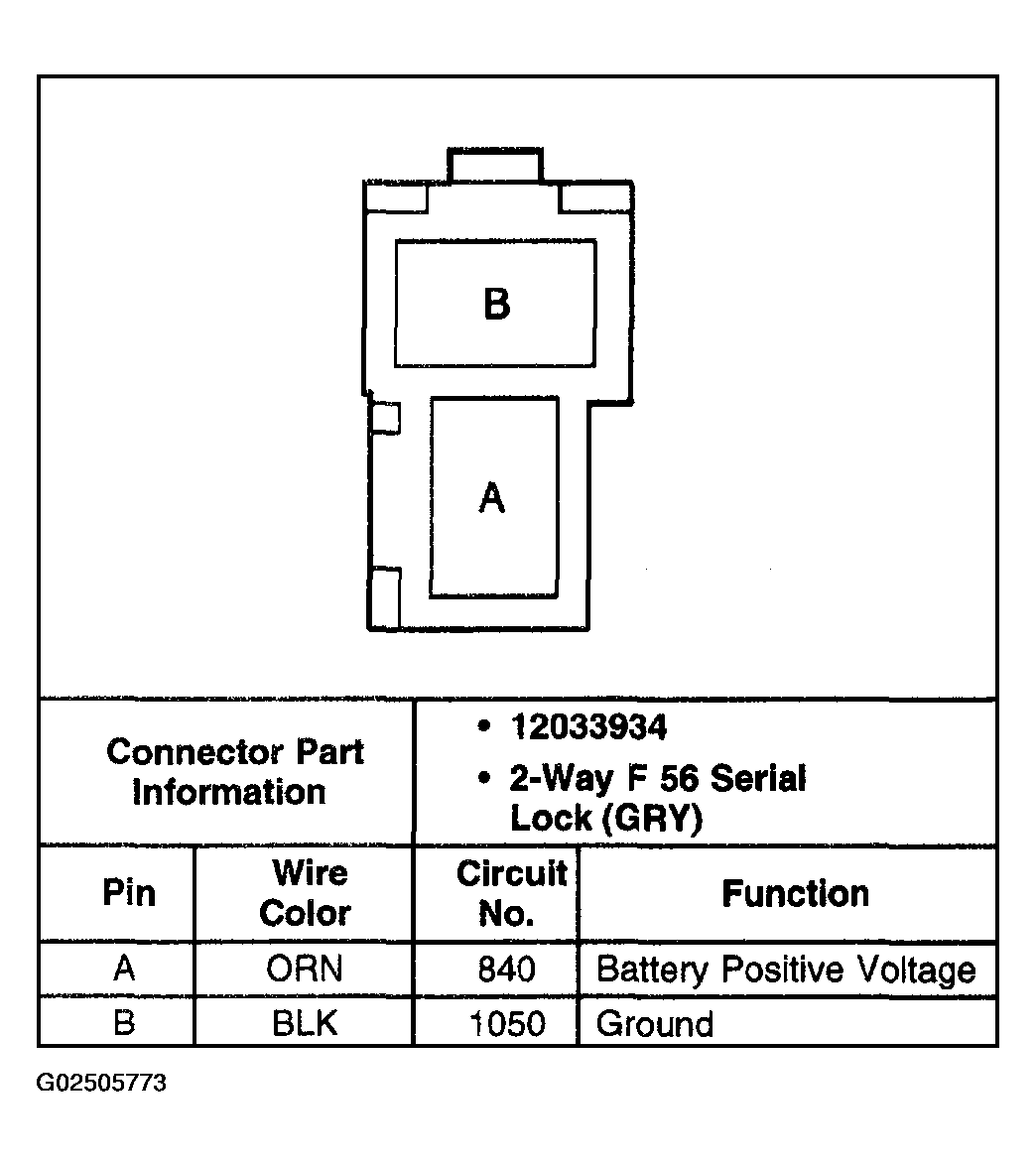

Fig 2: Identifying Auxiliary Power Outlet - Front No. 2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

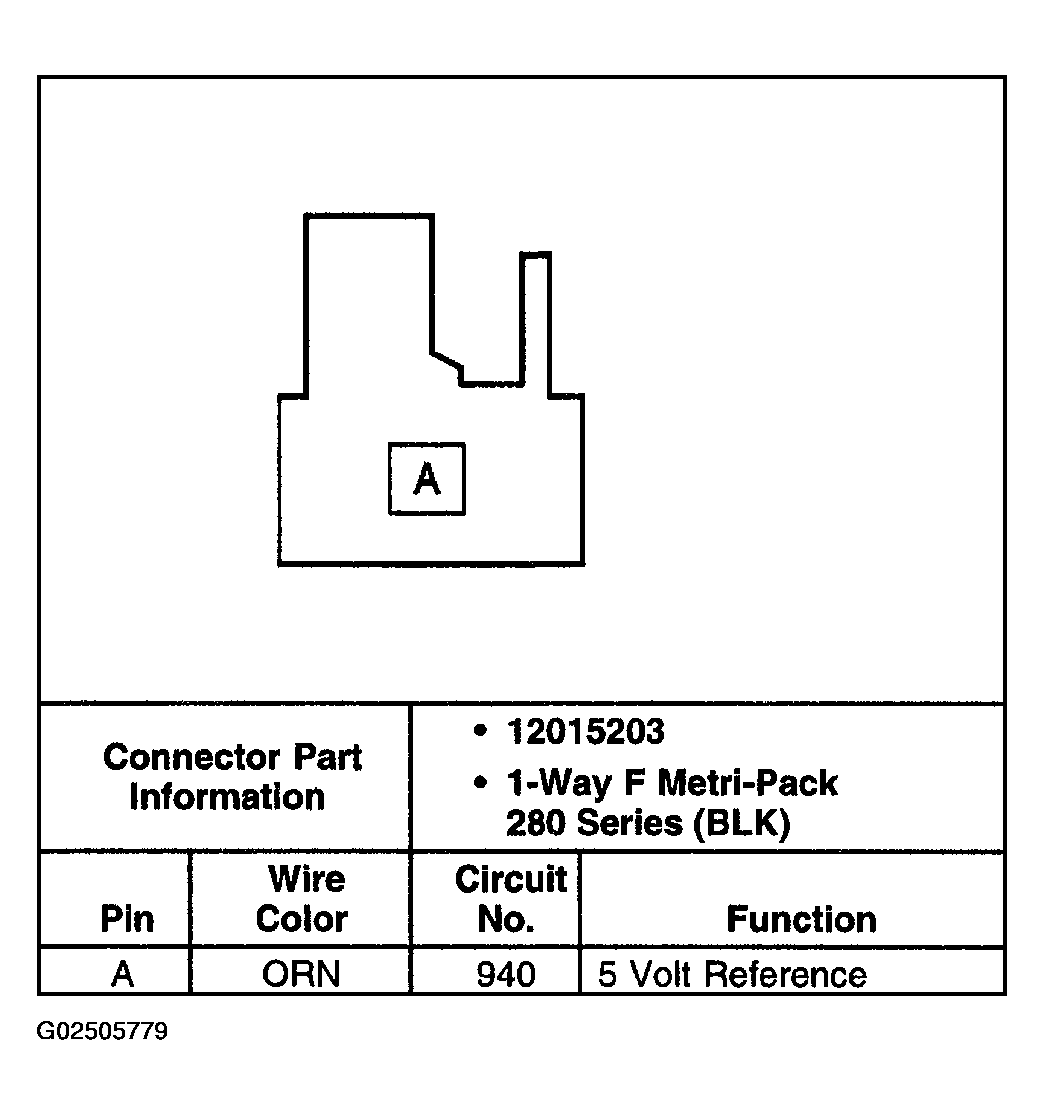

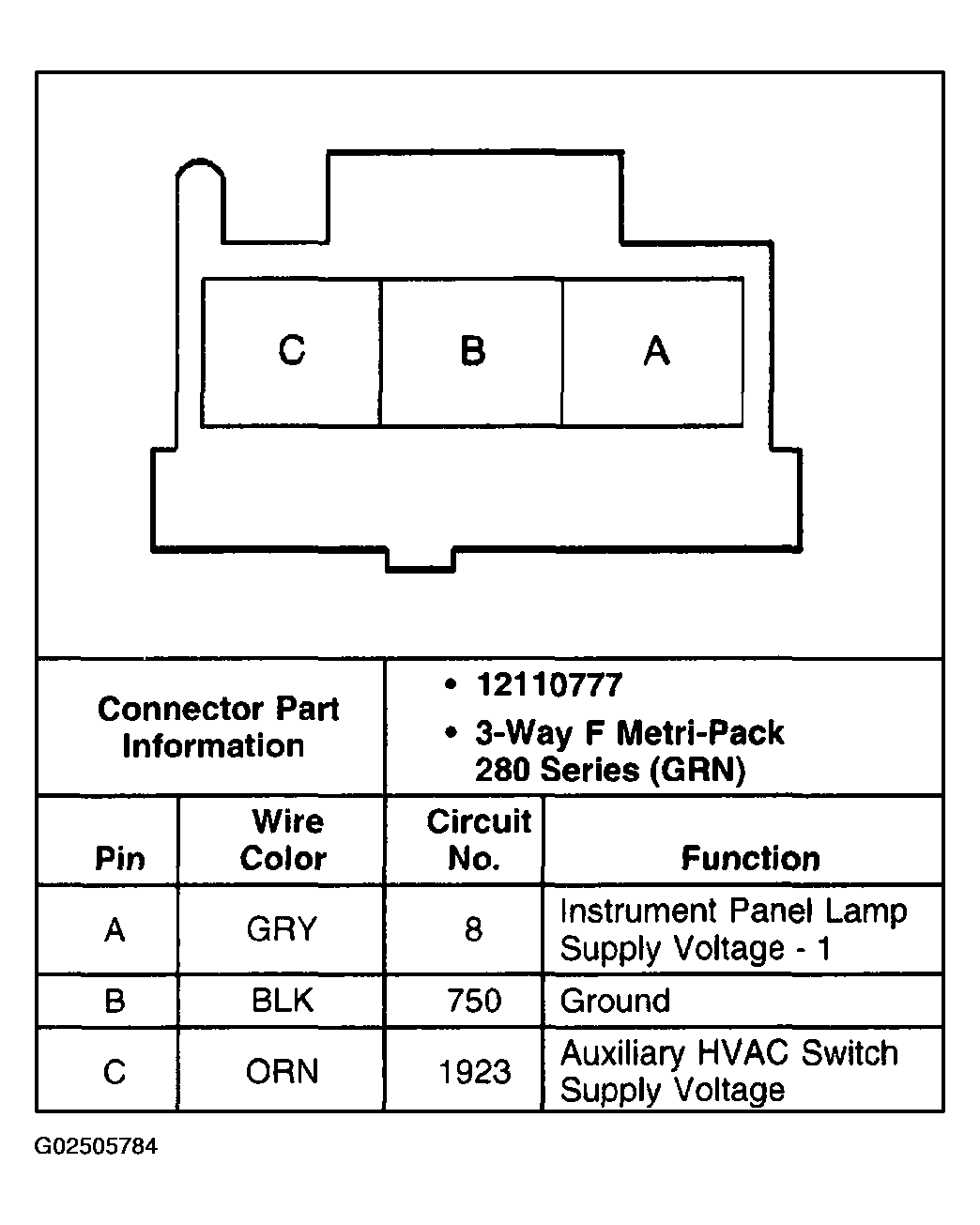

Fig 3: Identifying Auxiliary Power Outlet - Rear Connector Terminals

Courtesy of GENERAL MOTORS CORP.

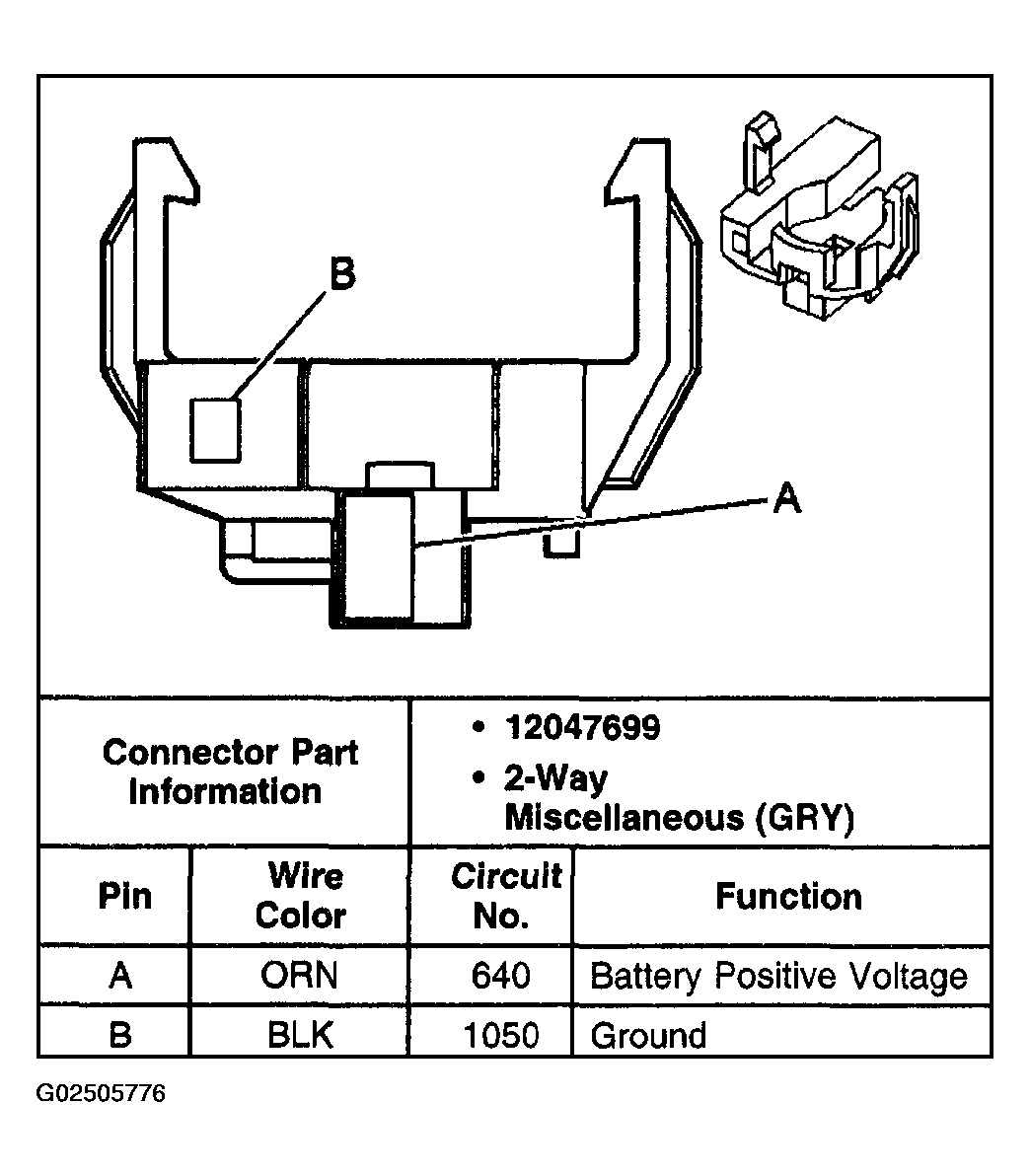

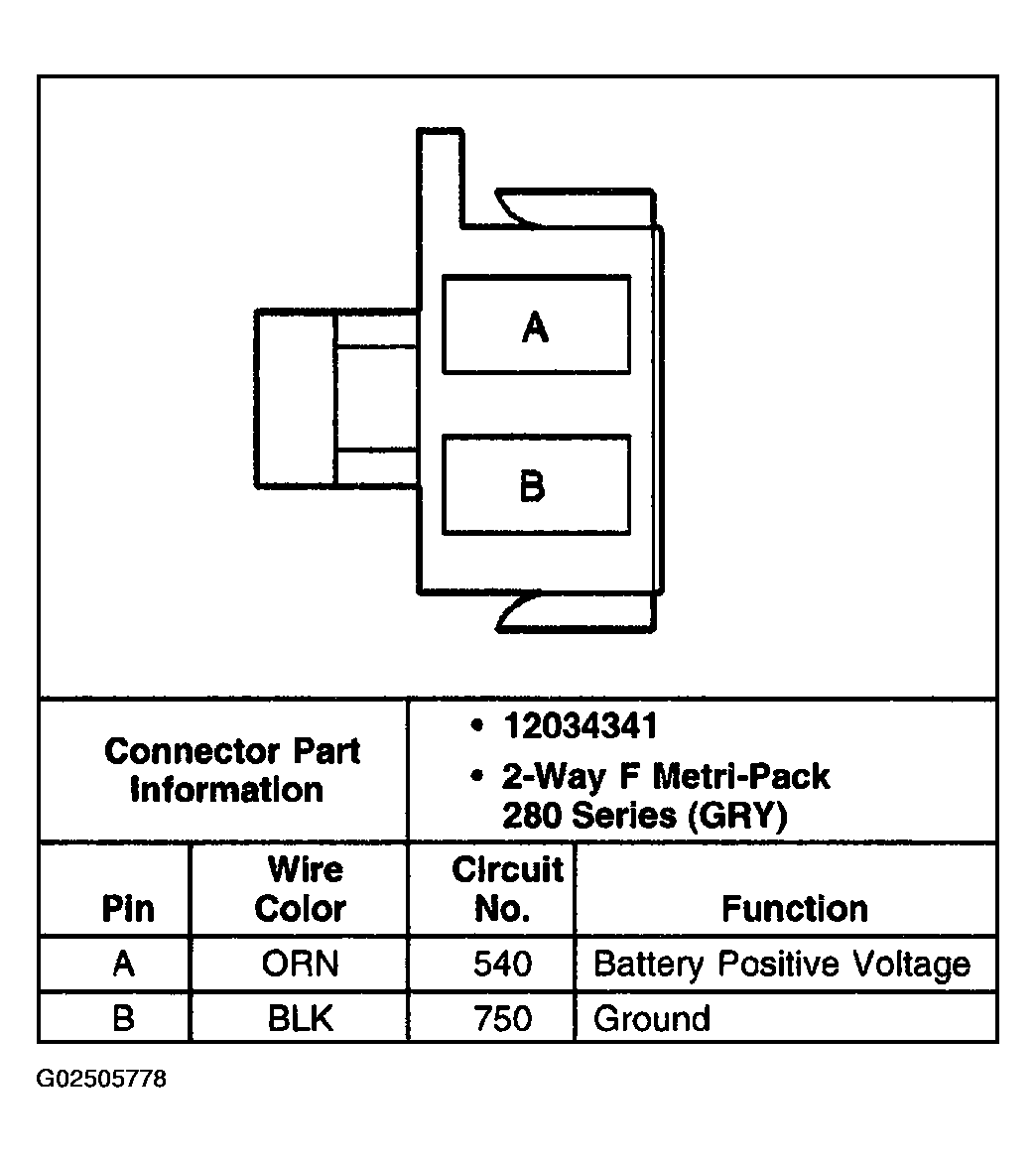

Fig 4: Identifying Cigar Lighter Connector Terminals

Courtesy of GENERAL MOTORS CORP.

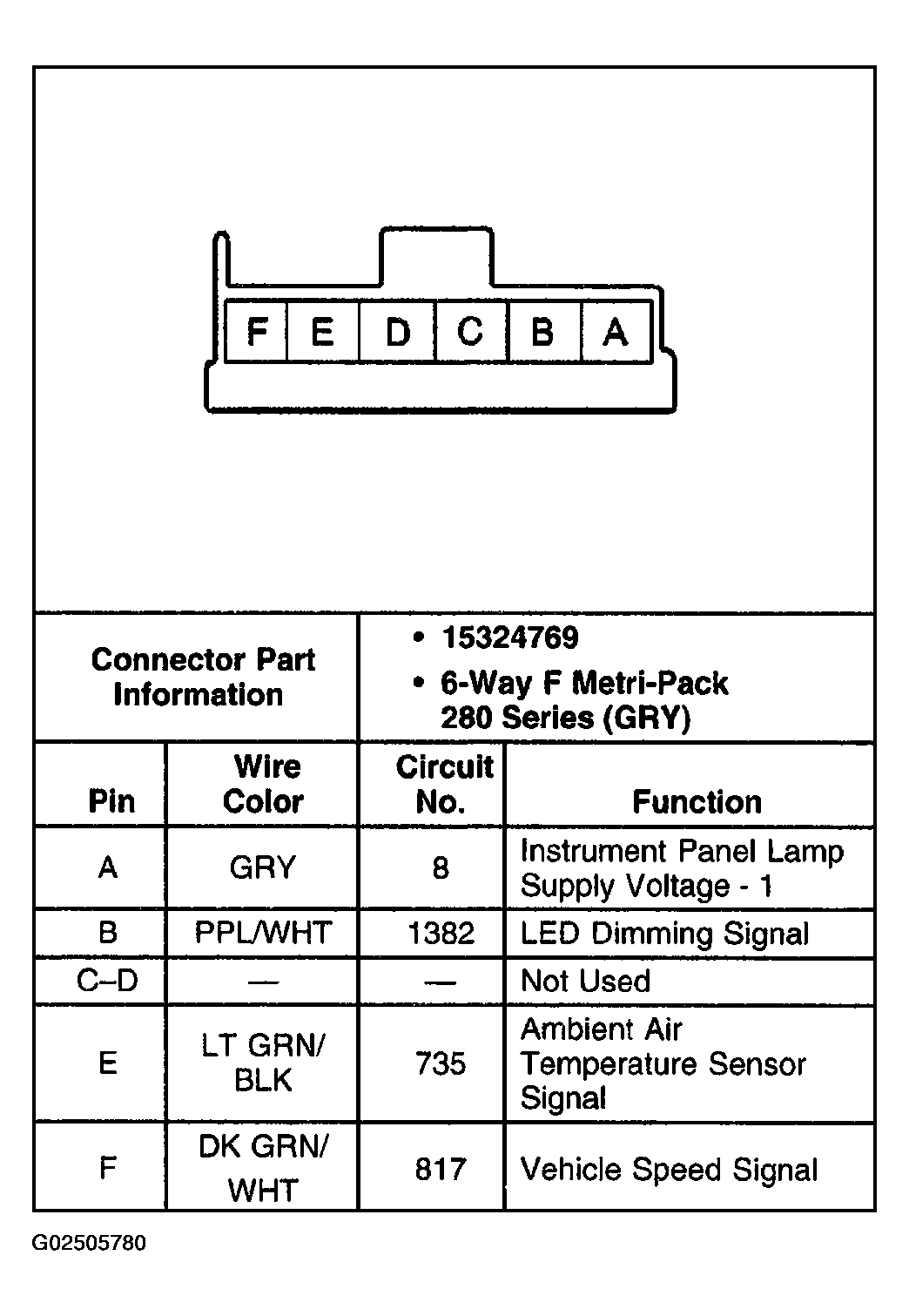

Fig 5: Identifying Convenience Center C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

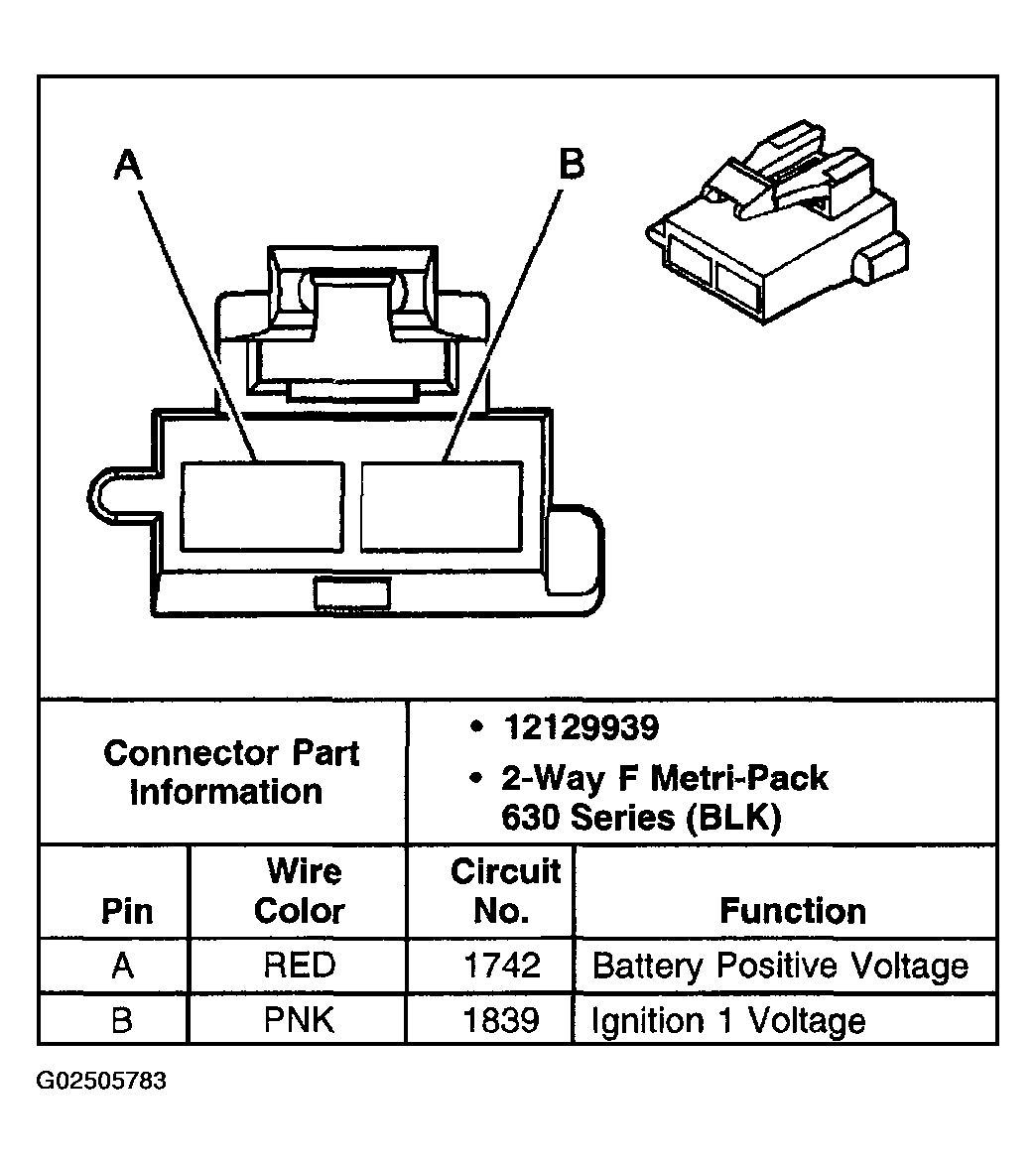

Fig 6: Identifying Convenience Center C3 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

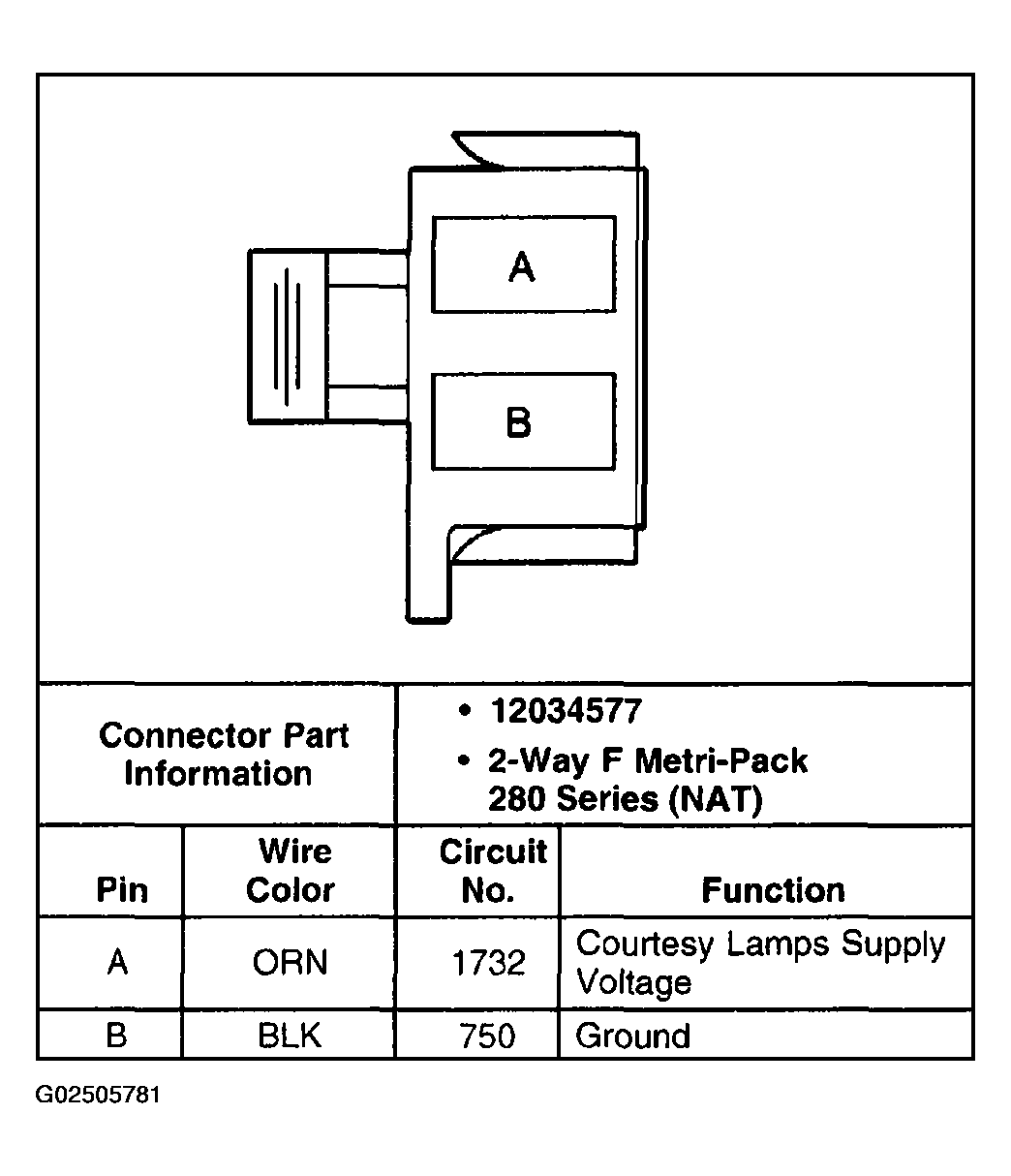

Fig 7: Identifying Convenience Center C4 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

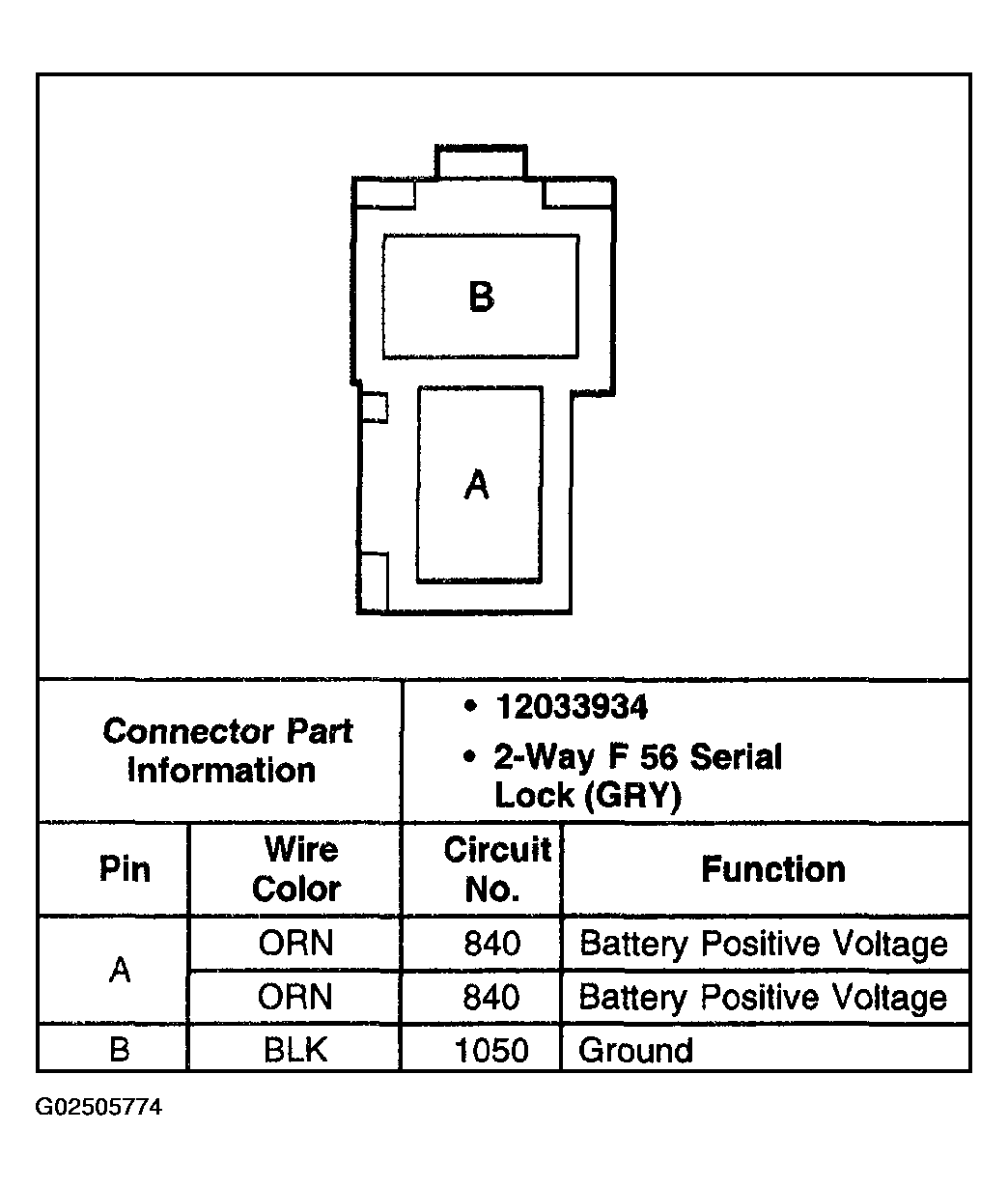

Fig 8: Identifying Convenience Center C5 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Convenience Center C6 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Convenience Center C8 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Convenience Center C9 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Convenience Center C10 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
