Inline Harness Connector End Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

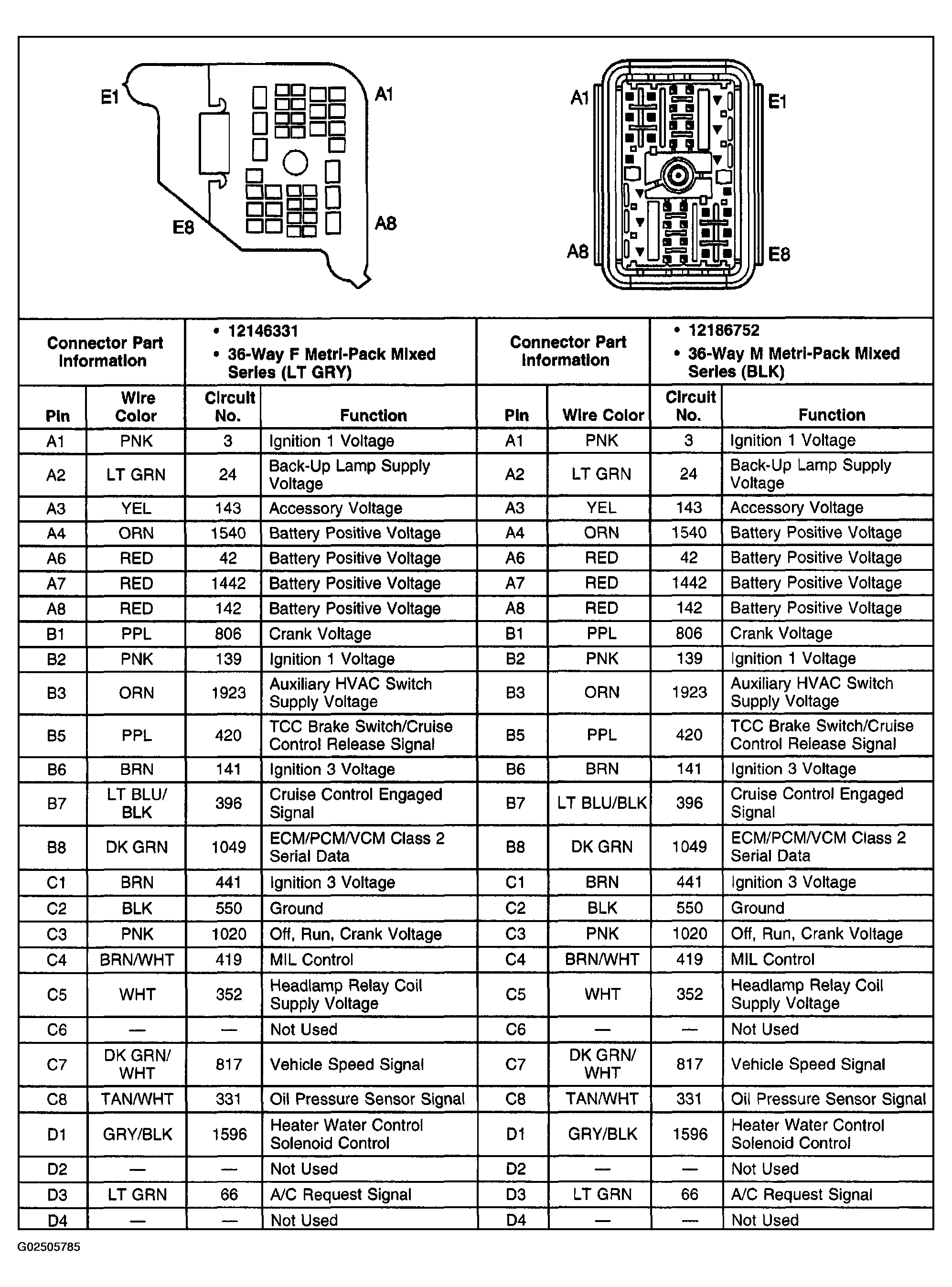

Fig 1: Identifying C100 (Engine-To-I/P) Connector Terminals (1 Of 2)

G02505785

Courtesy of GENERAL MOTORS CORP.

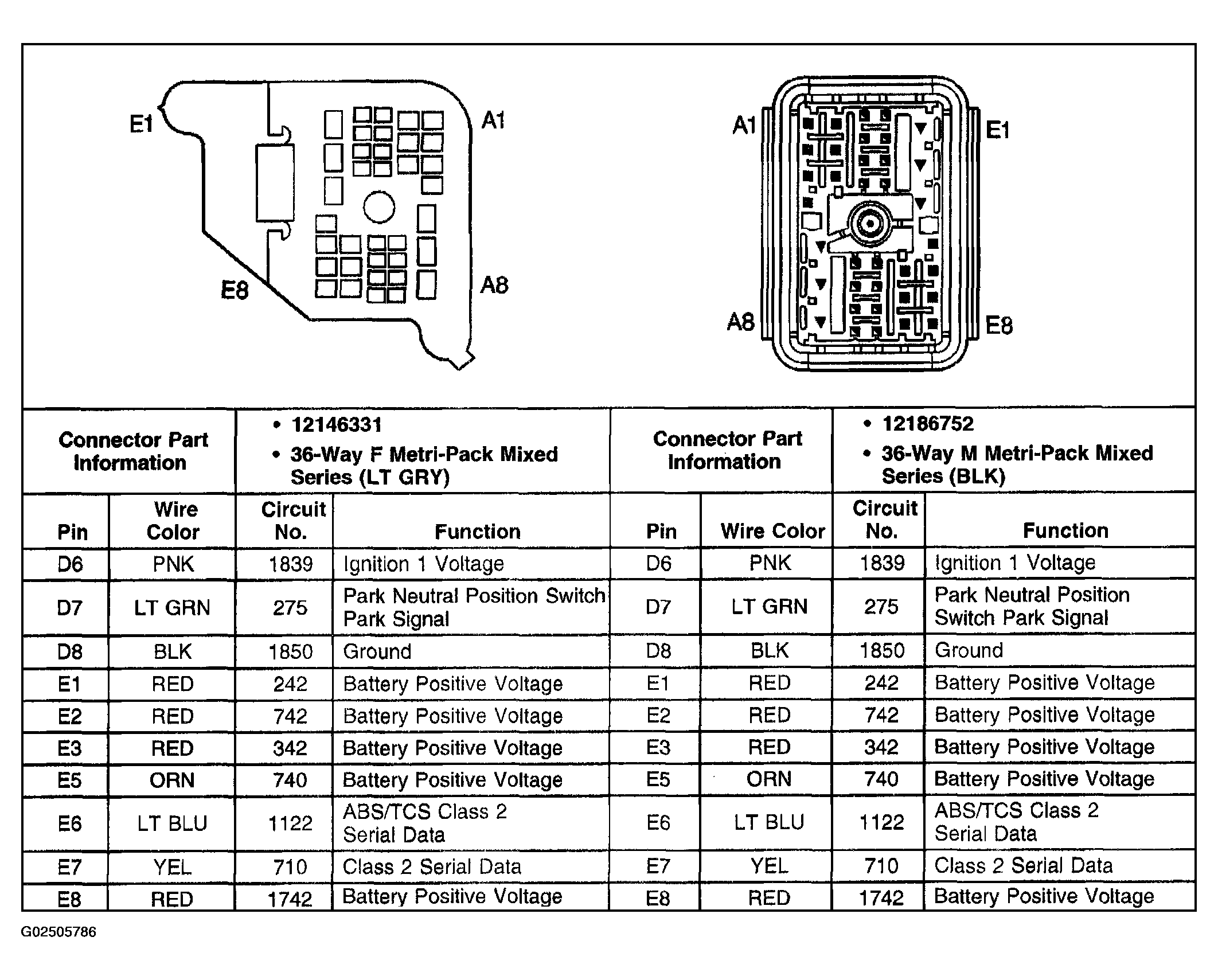

Fig 2: Identifying C100 (Engine-To-I/P) Connector Terminals (2 Of 2)

G02505786

Courtesy of GENERAL MOTORS CORP.

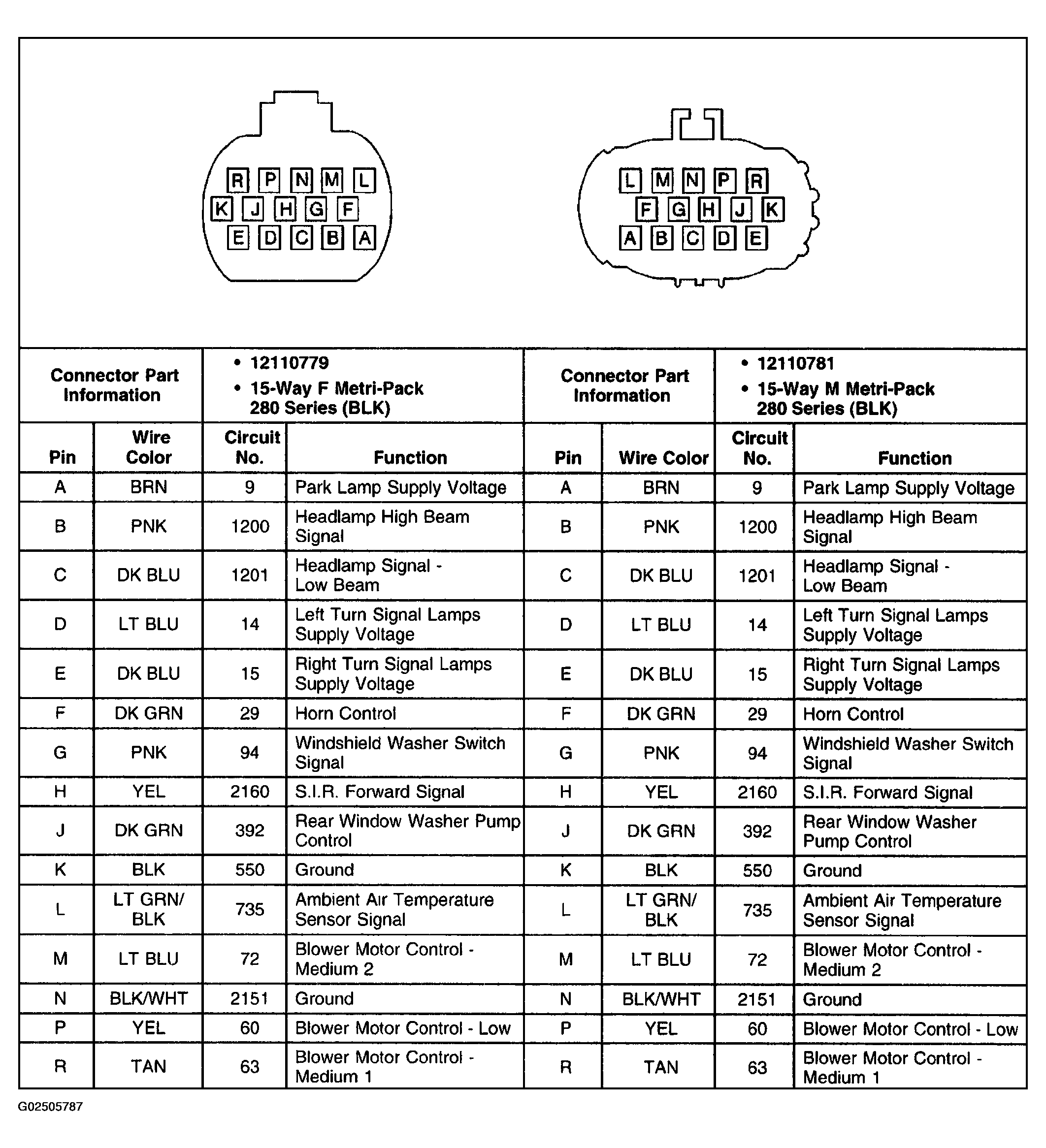

Fig 3: Identifying C102 (I/P-To-Forward Lamp) Connector Terminals

G02505787

Courtesy of GENERAL MOTORS CORP.

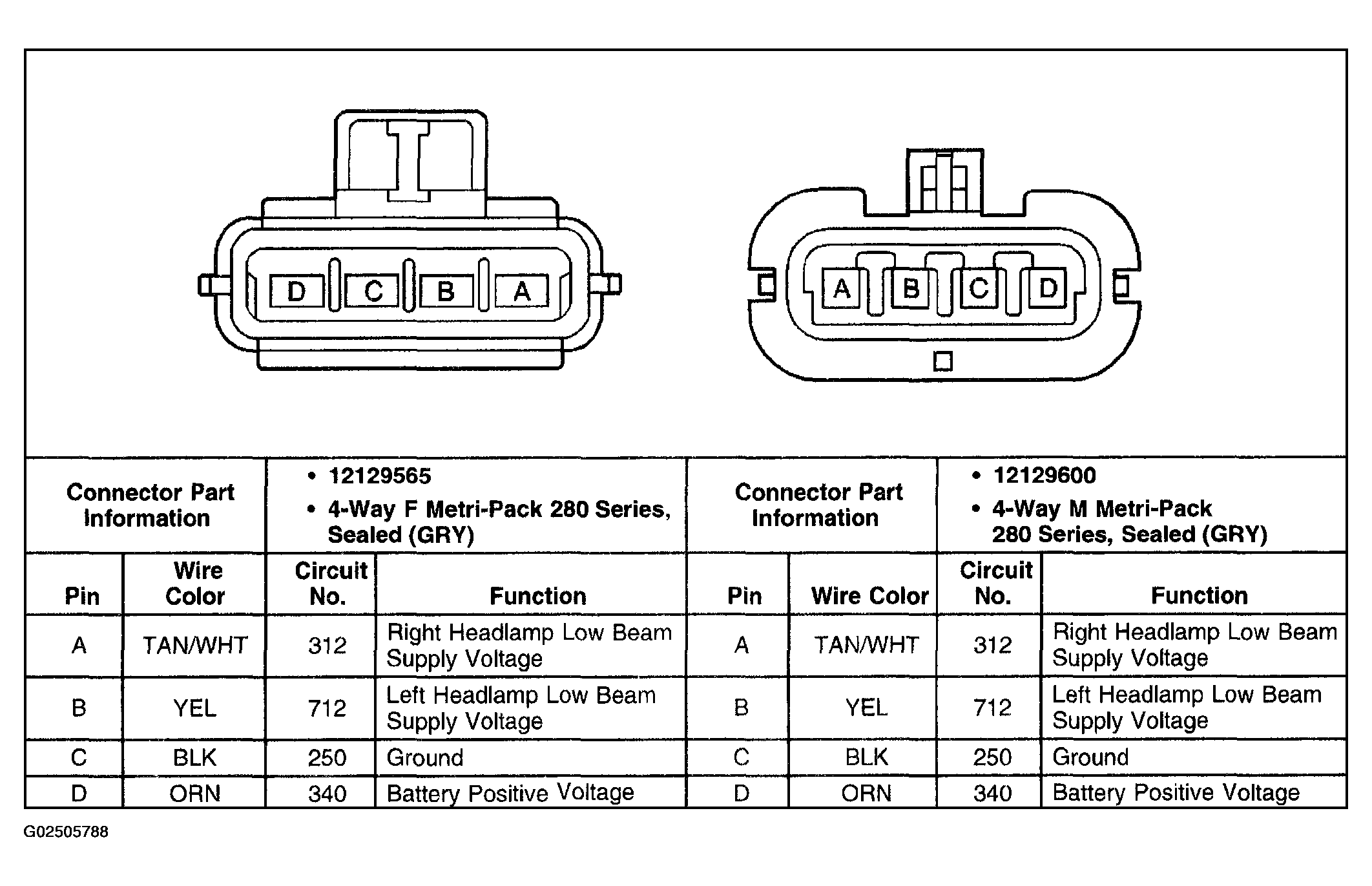

Fig 4: Identifying C104 (Engine-To-Forward Lamp) Connector Terminals

G02505788

Courtesy of GENERAL MOTORS CORP.

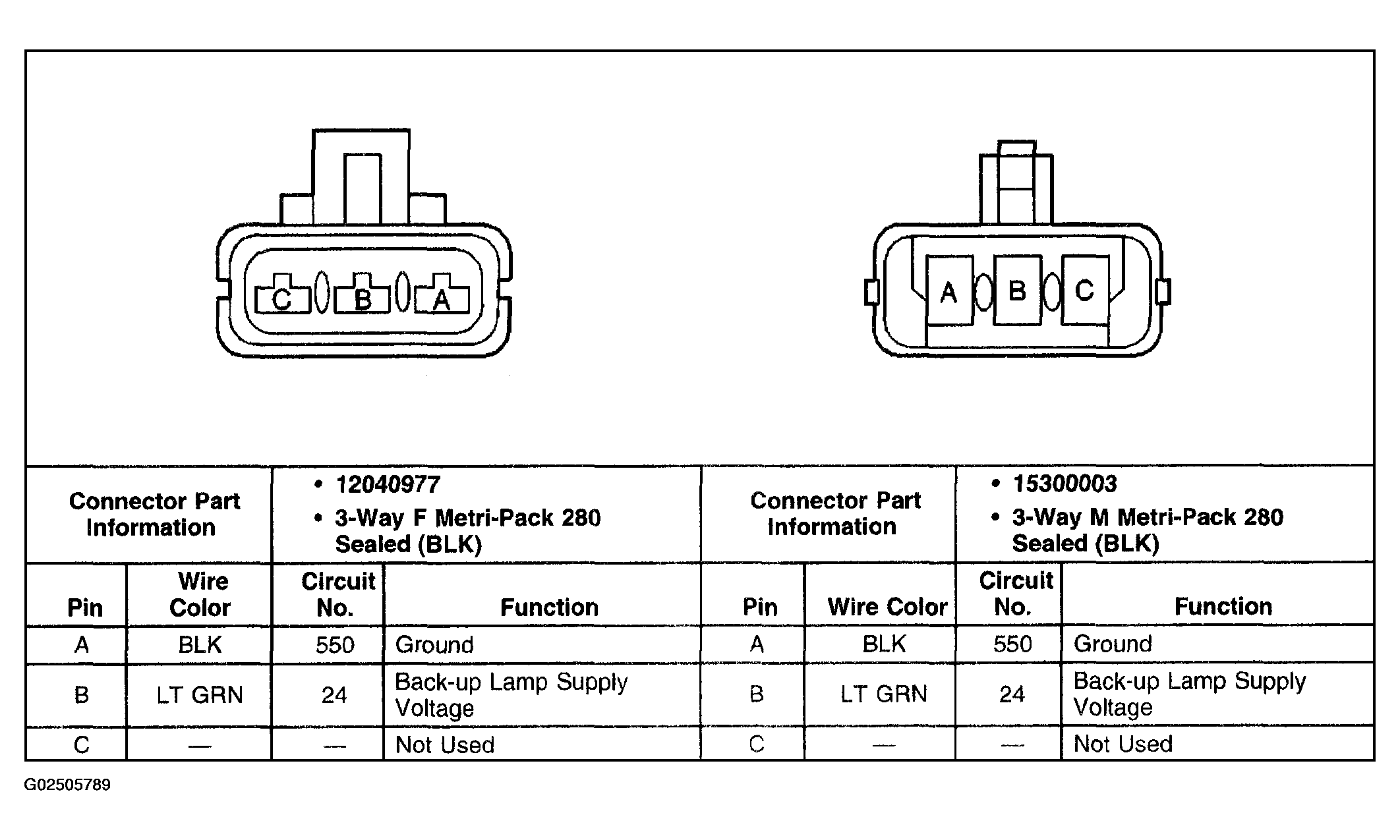

Fig 5: Identifying C108 (I/P-To-Rear Lamp Jumper VE1 Japan) Connector Terminals

G02505789

Courtesy of GENERAL MOTORS CORP.

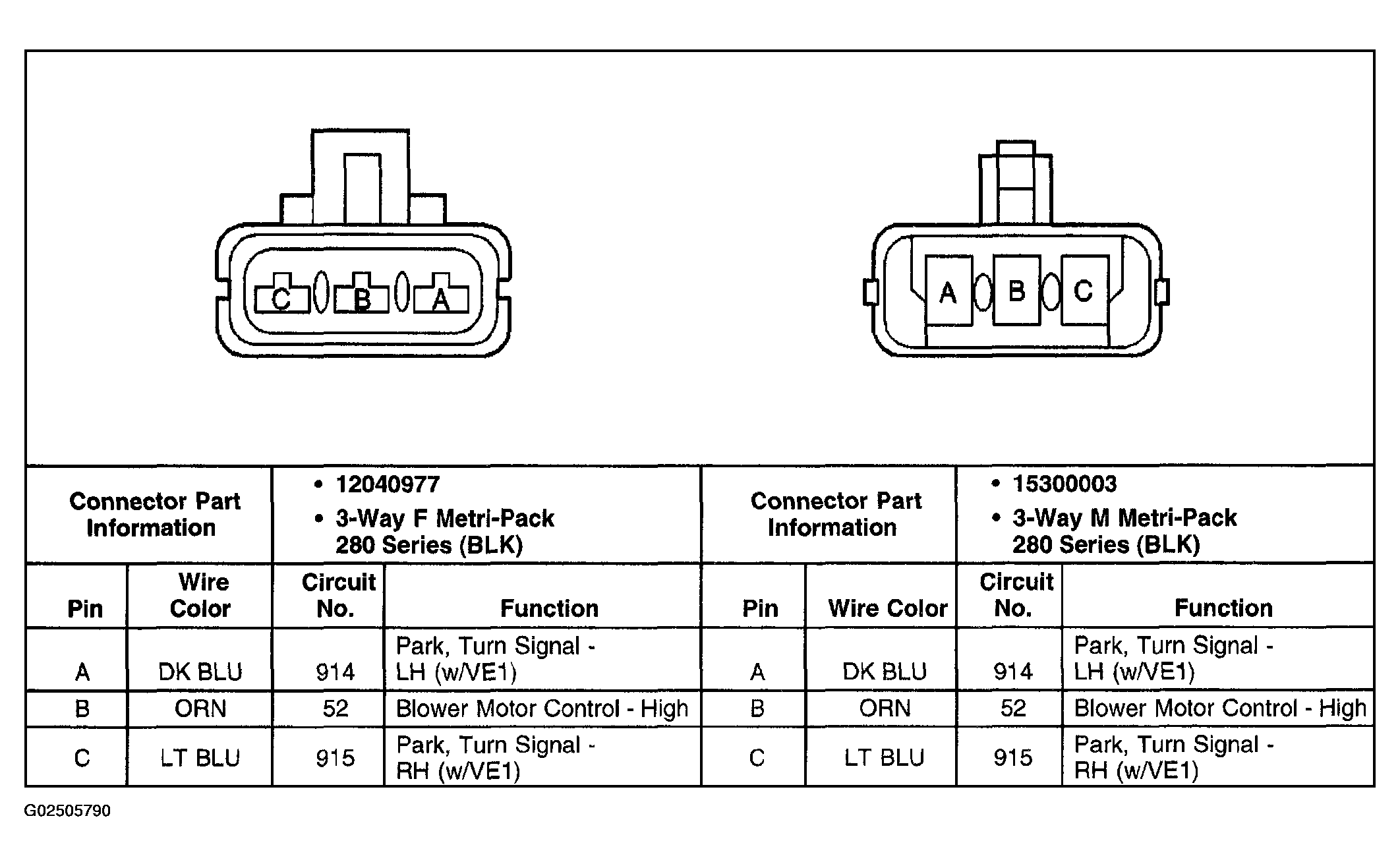

Fig 6: Identifying C109 (I/P-To-Forward Lamp) Connector Terminals

G02505790

Courtesy of GENERAL MOTORS CORP.

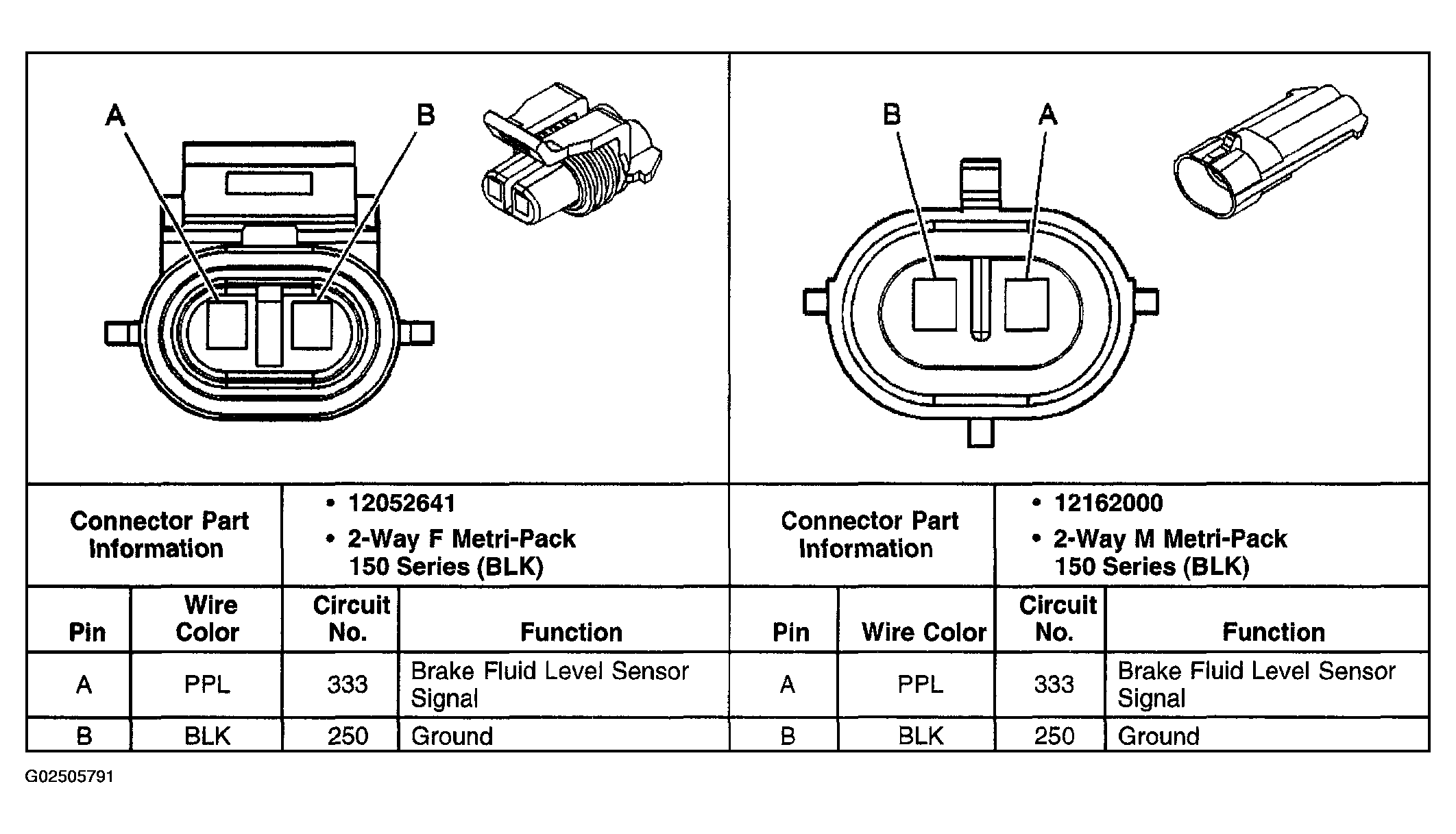

Fig 7: Identifying C110 (Engine-To-Brake Pressure Differential Switch) Connector Terminals

G02505791

Courtesy of GENERAL MOTORS CORP.

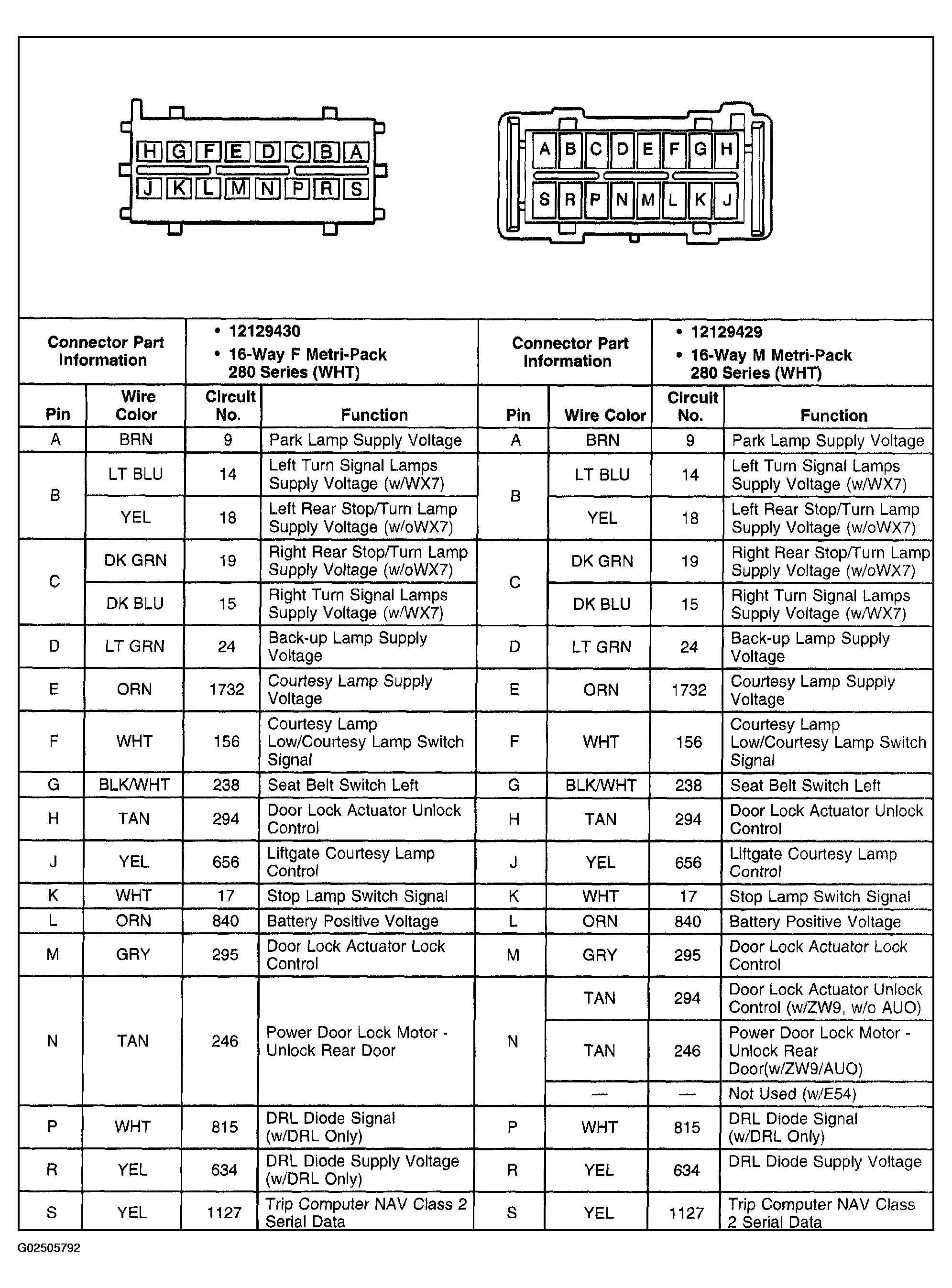

Fig 8: Identifying C200 (I/P-To-Main Body) Connector Terminals

G02505792

Courtesy of GENERAL MOTORS CORP.

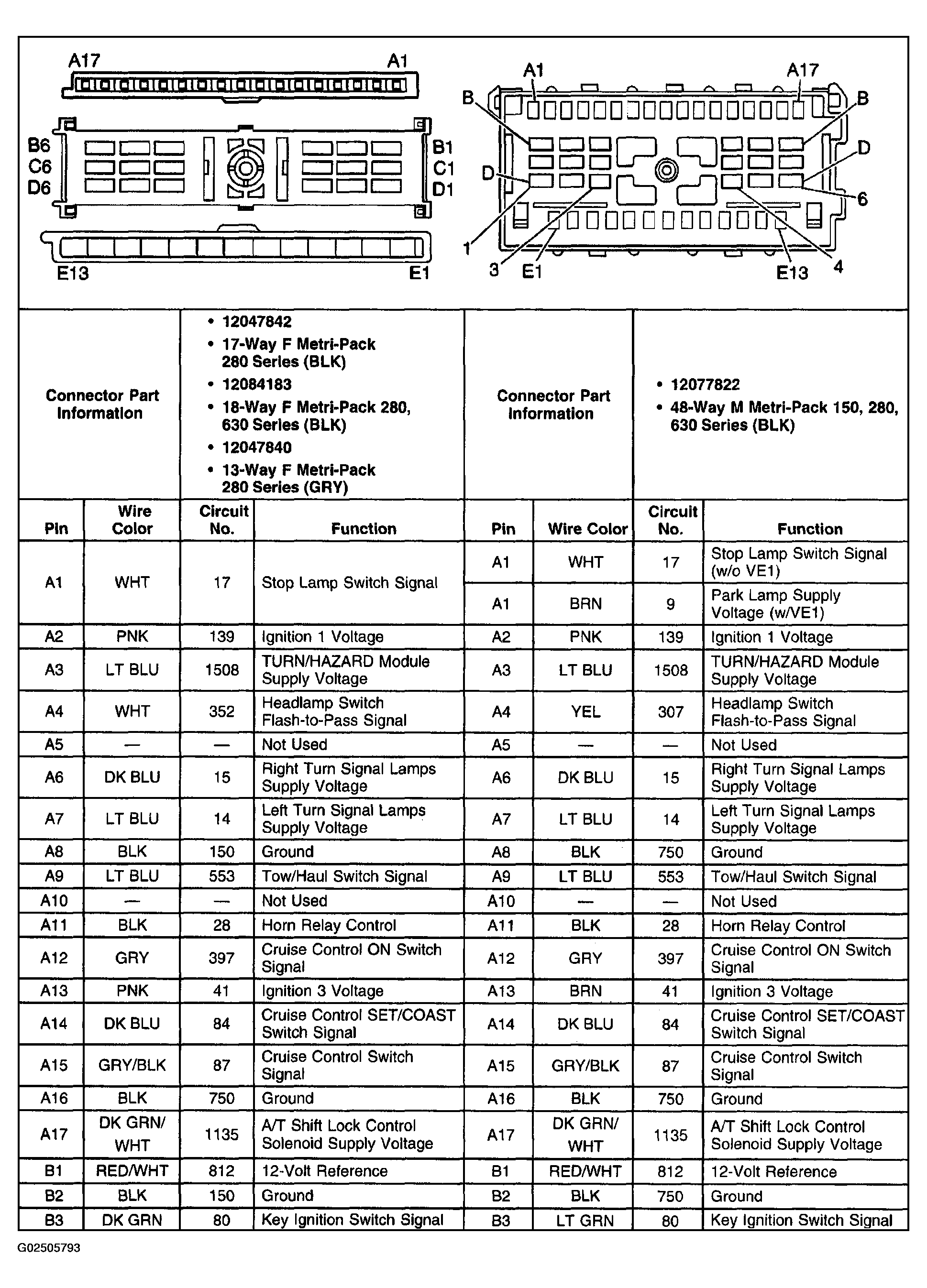

Fig 9: Identifying C201 (Steering Column-To-I/P) Connector Terminals (1 Of 3)

G02505793

Courtesy of GENERAL MOTORS CORP.

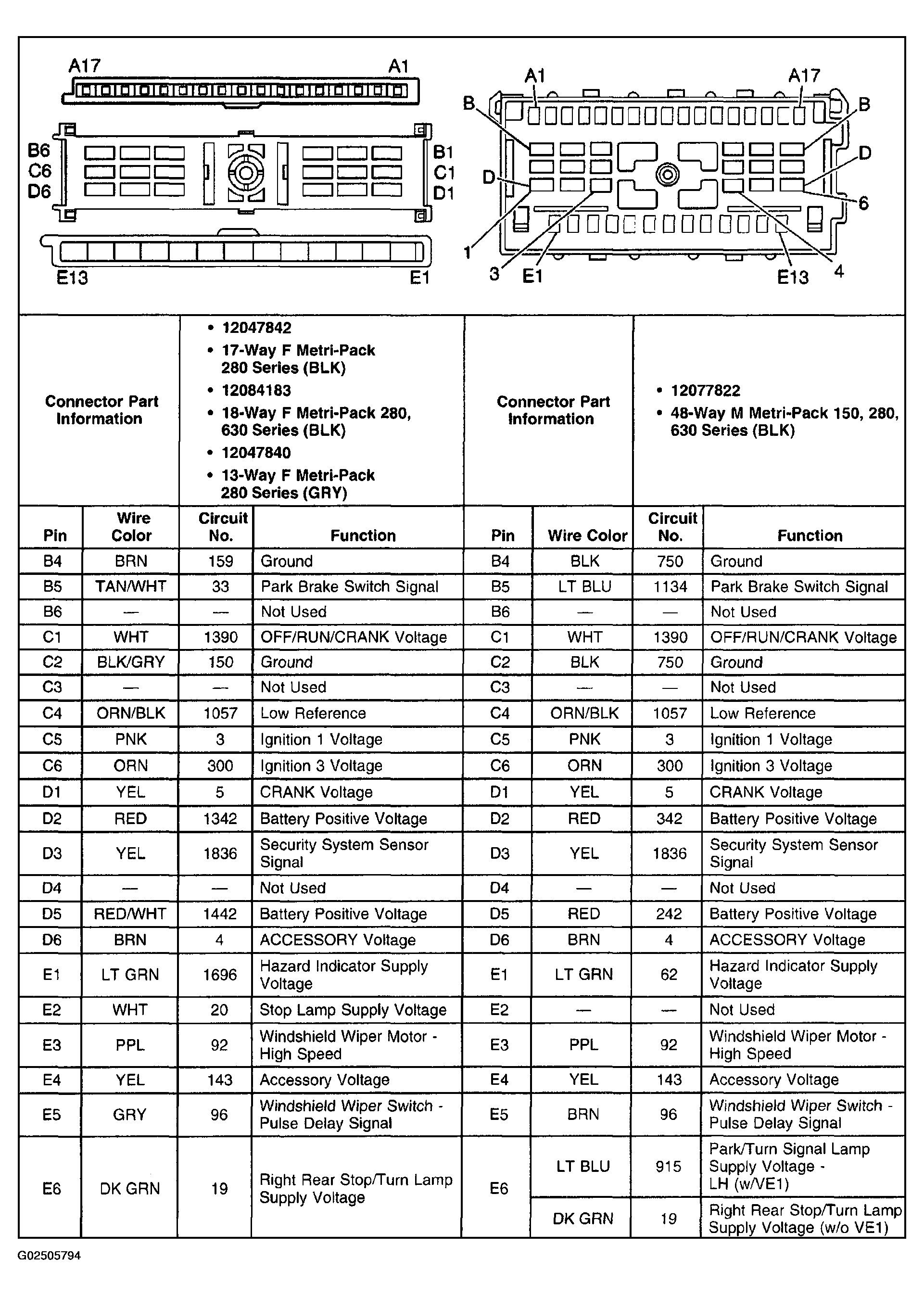

Fig 10: Identifying C201 (Steering Column-To-I/P) Connector Terminals (2 Of 3)

G02505794

Courtesy of GENERAL MOTORS CORP.

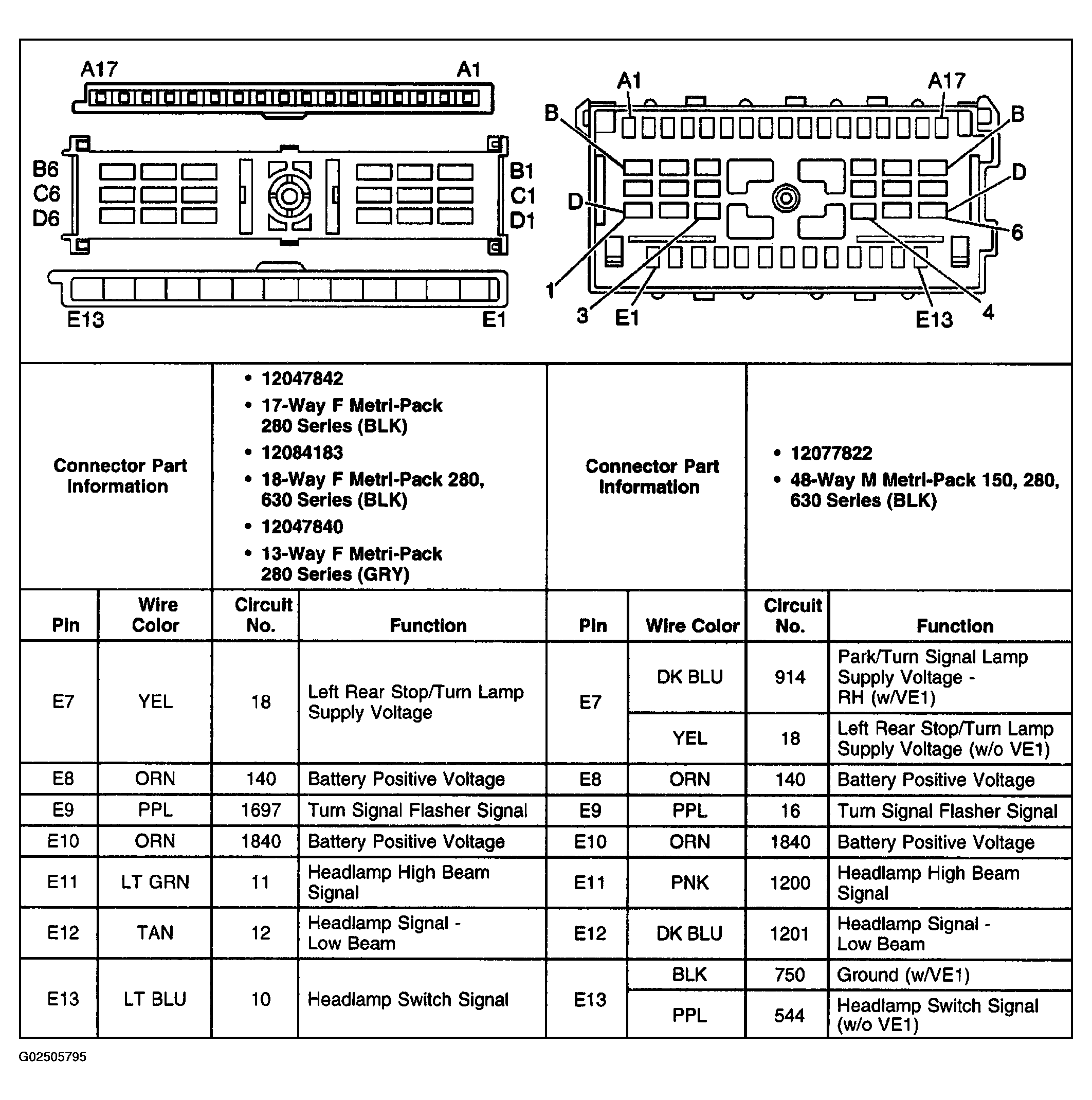

Fig 11: Identifying C201 (Steering Column-To-I/P) Connector Terminals (3 Of 3)

G02505795

Courtesy of GENERAL MOTORS CORP.

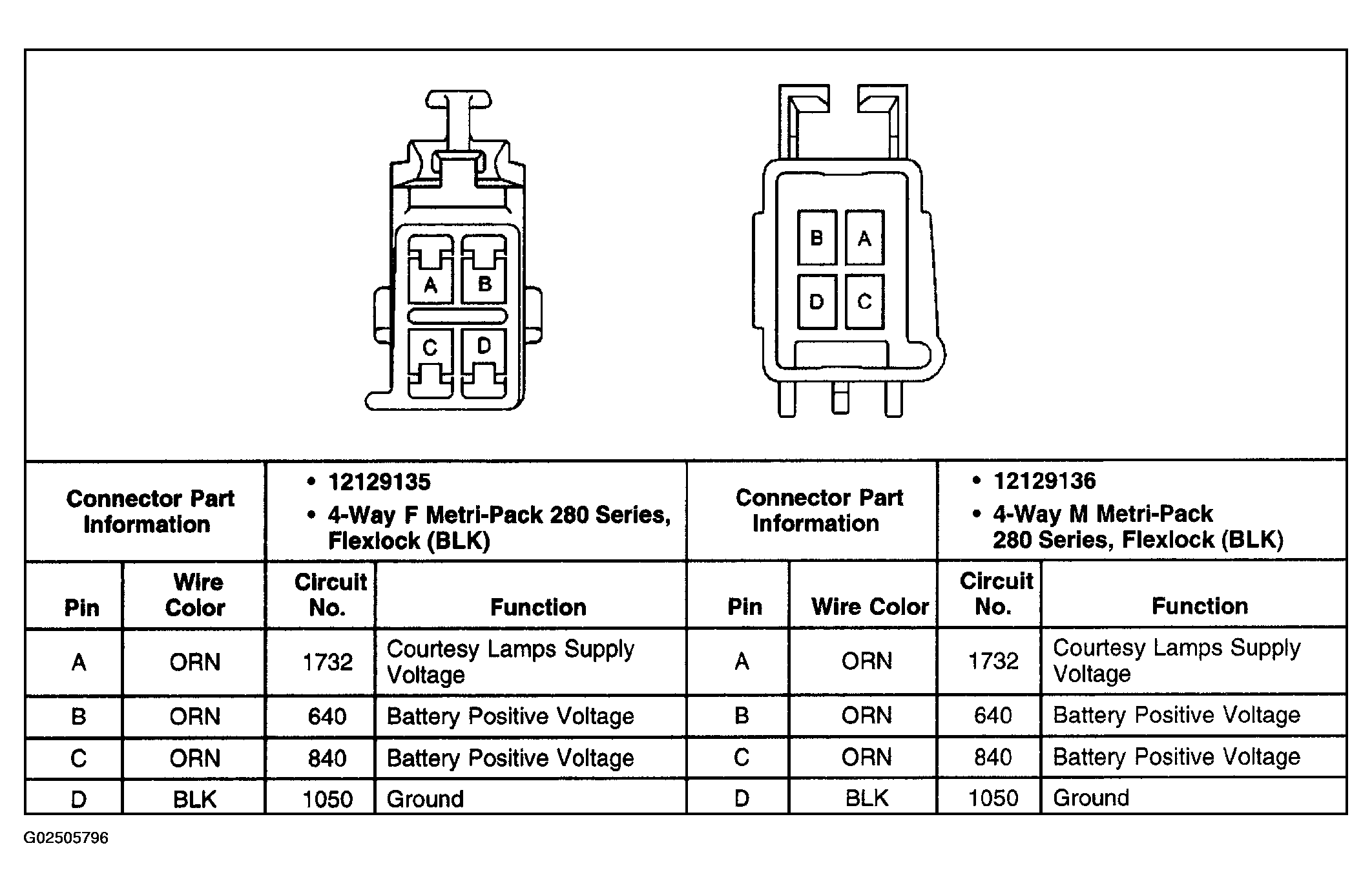

Fig 12: Identifying C202 (I/P-To-Cig/Aux Power Jumper) Connector Terminals

G02505796

Courtesy of GENERAL MOTORS CORP.

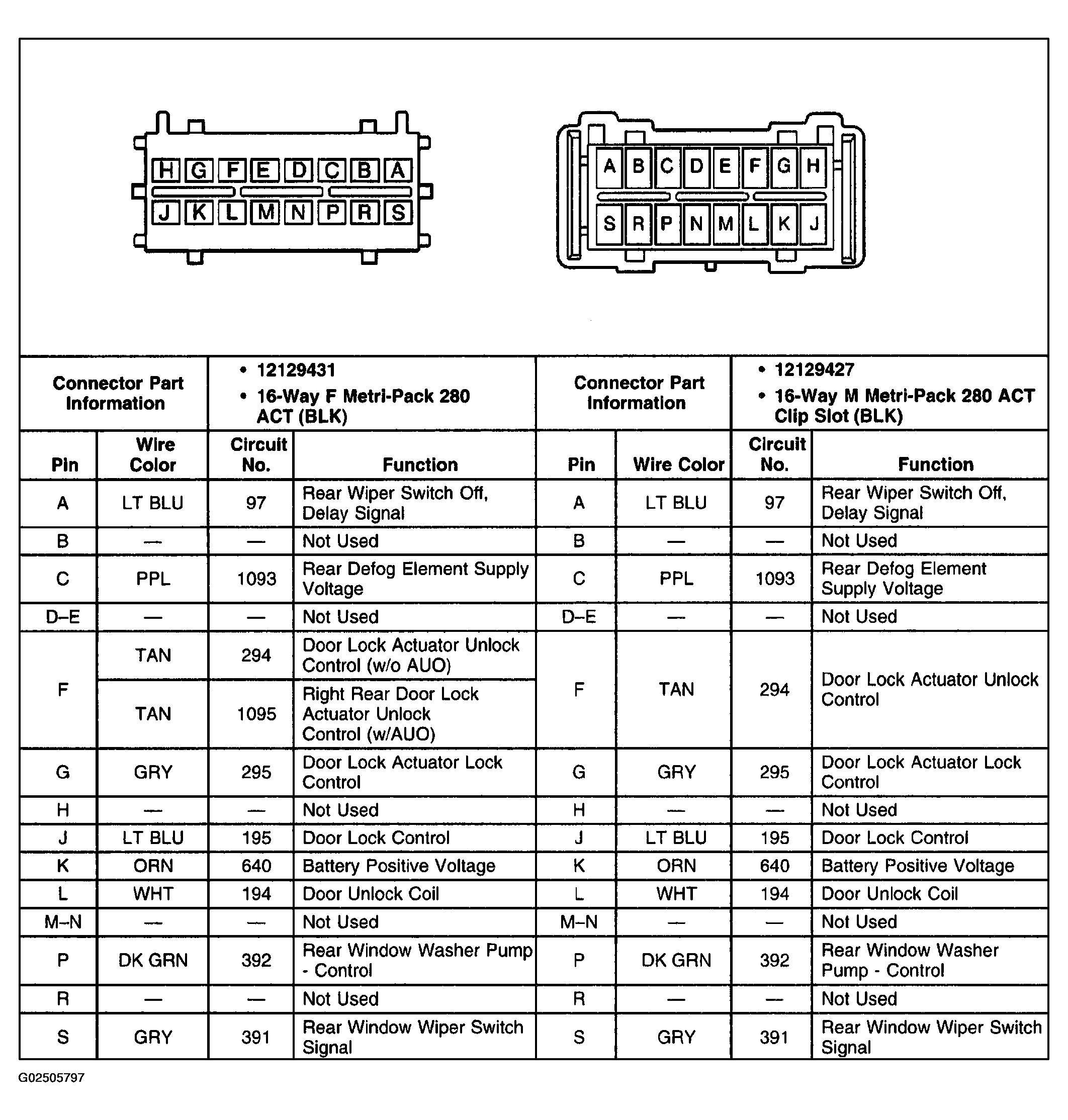

Fig 13: Identifying C203 (I/P-To-Liftgate) Connector Terminals

G02505797

Courtesy of GENERAL MOTORS CORP.

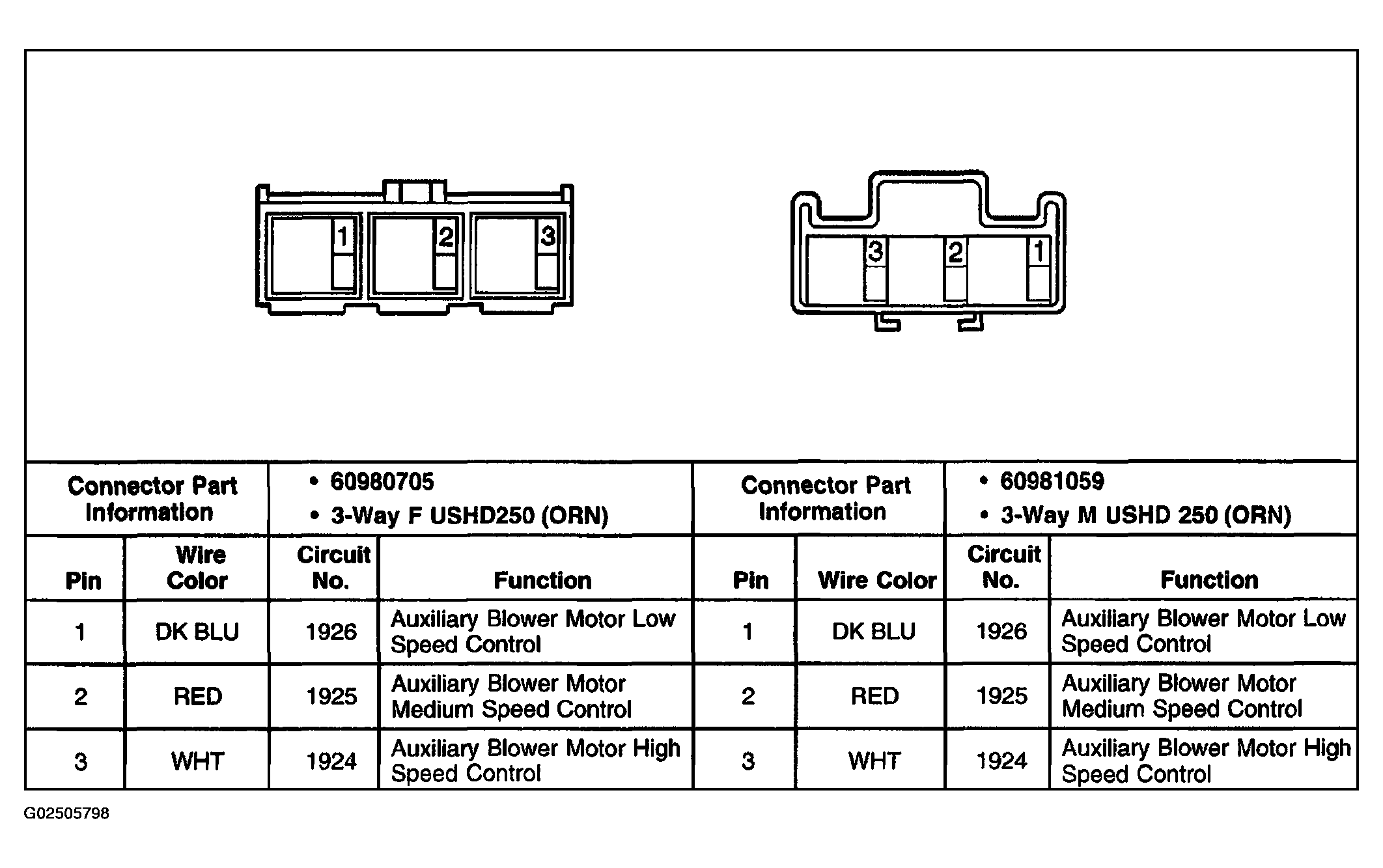

Fig 14: Identifying C205 (I/P-To-Right/Passenger Door) Connector Terminals

G02505798

Courtesy of GENERAL MOTORS CORP.

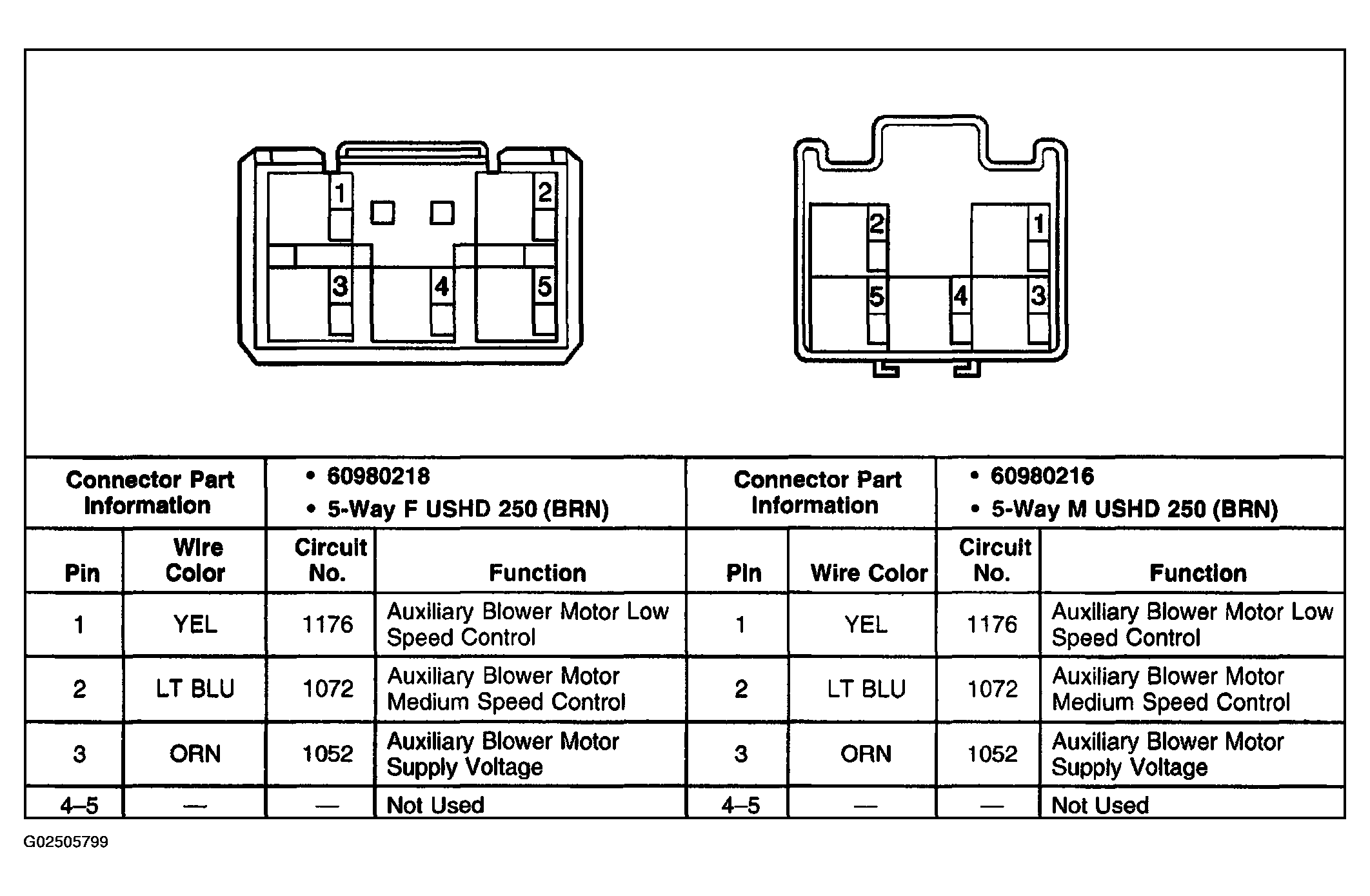

Fig 15: Identifying C212 (Heater Jumper-To-Heater Body) Connector Terminals

G02505799

Courtesy of GENERAL MOTORS CORP.

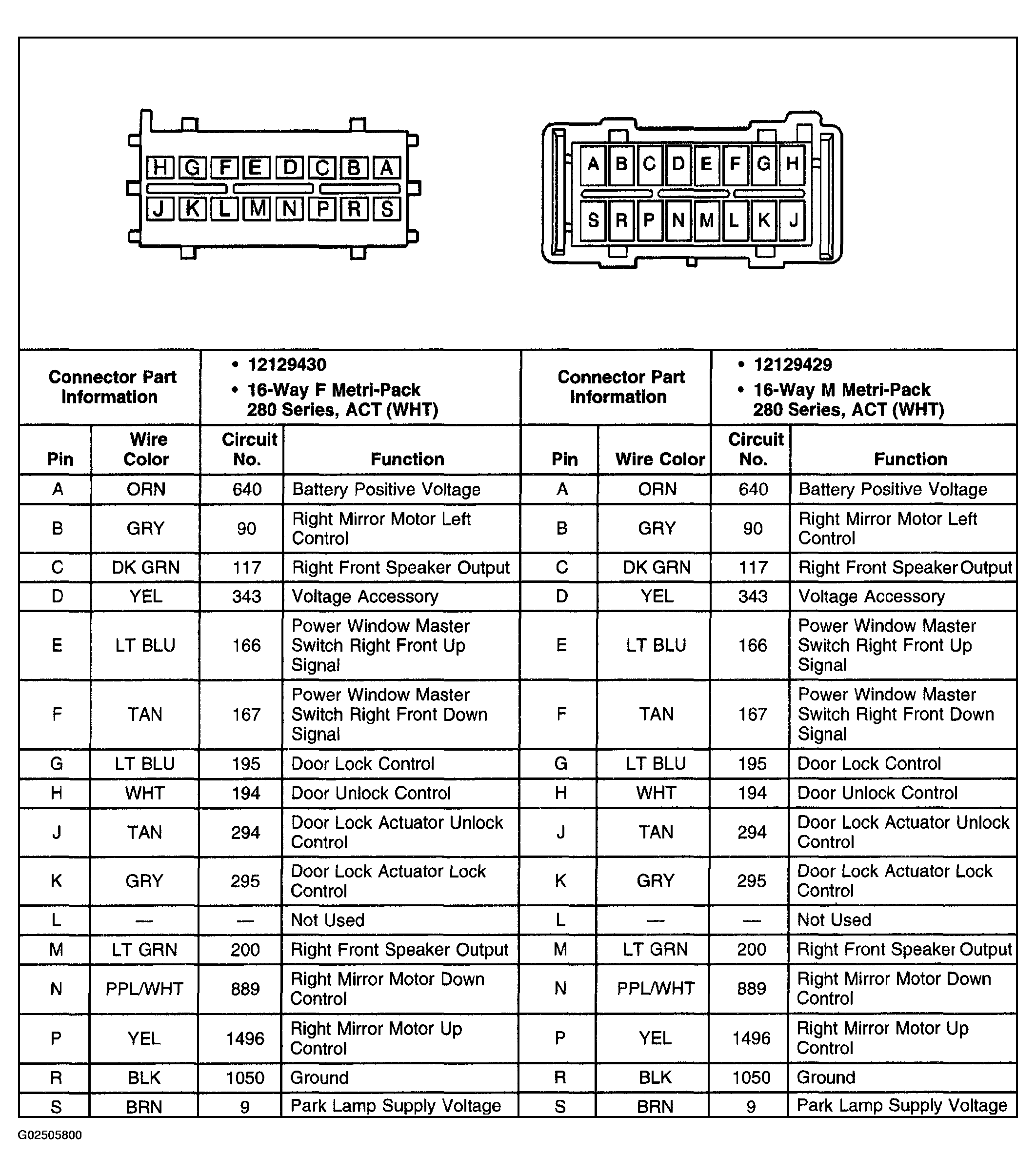

Fig 16: Identifying C213 (A/C Jumper-To-A/C Body) Connector Terminals

G02505800

Courtesy of GENERAL MOTORS CORP.

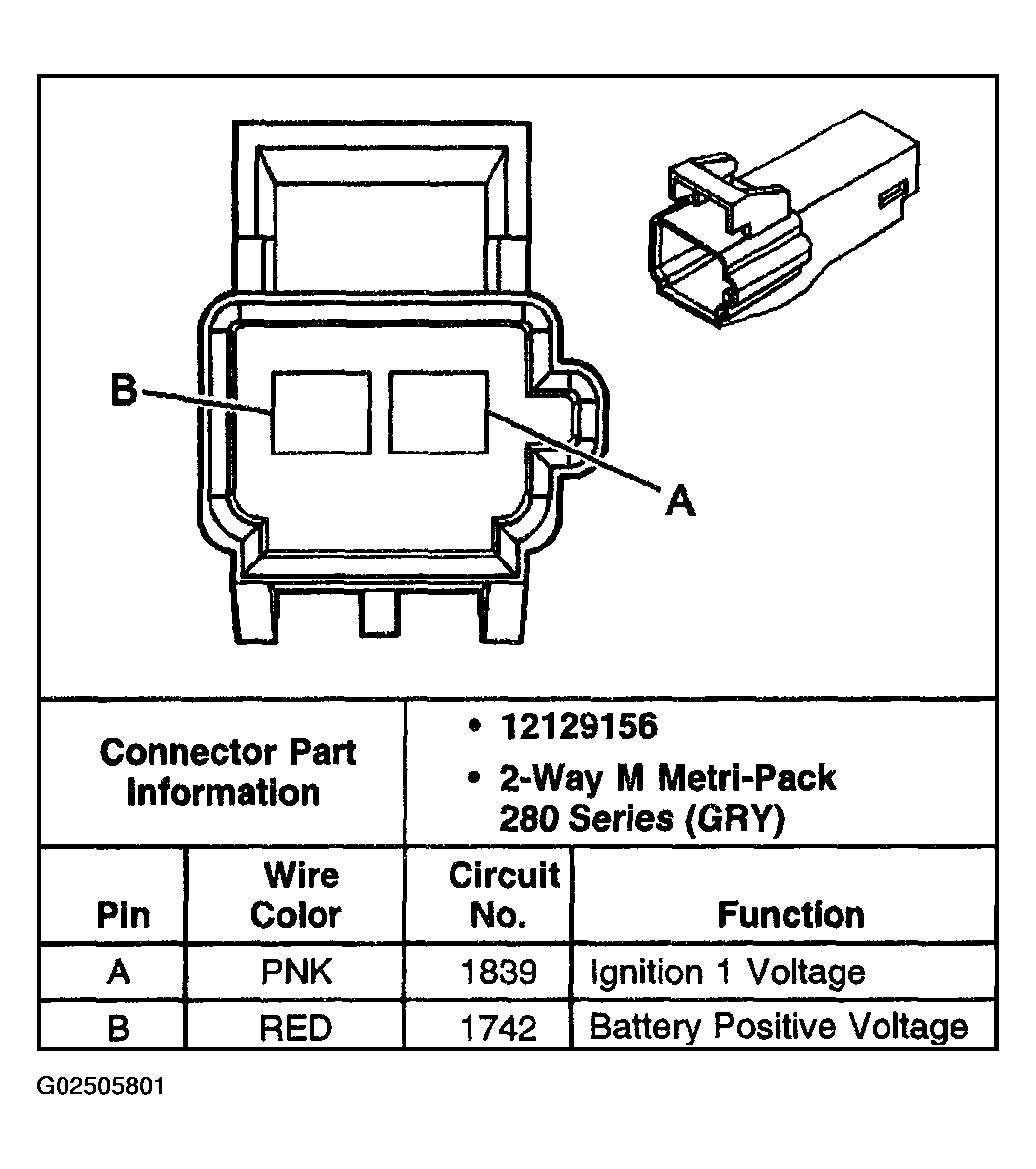

Fig 17: Identifying C223 (Upfitter Harness) Connector Terminals

G02505801

Courtesy of GENERAL MOTORS CORP.

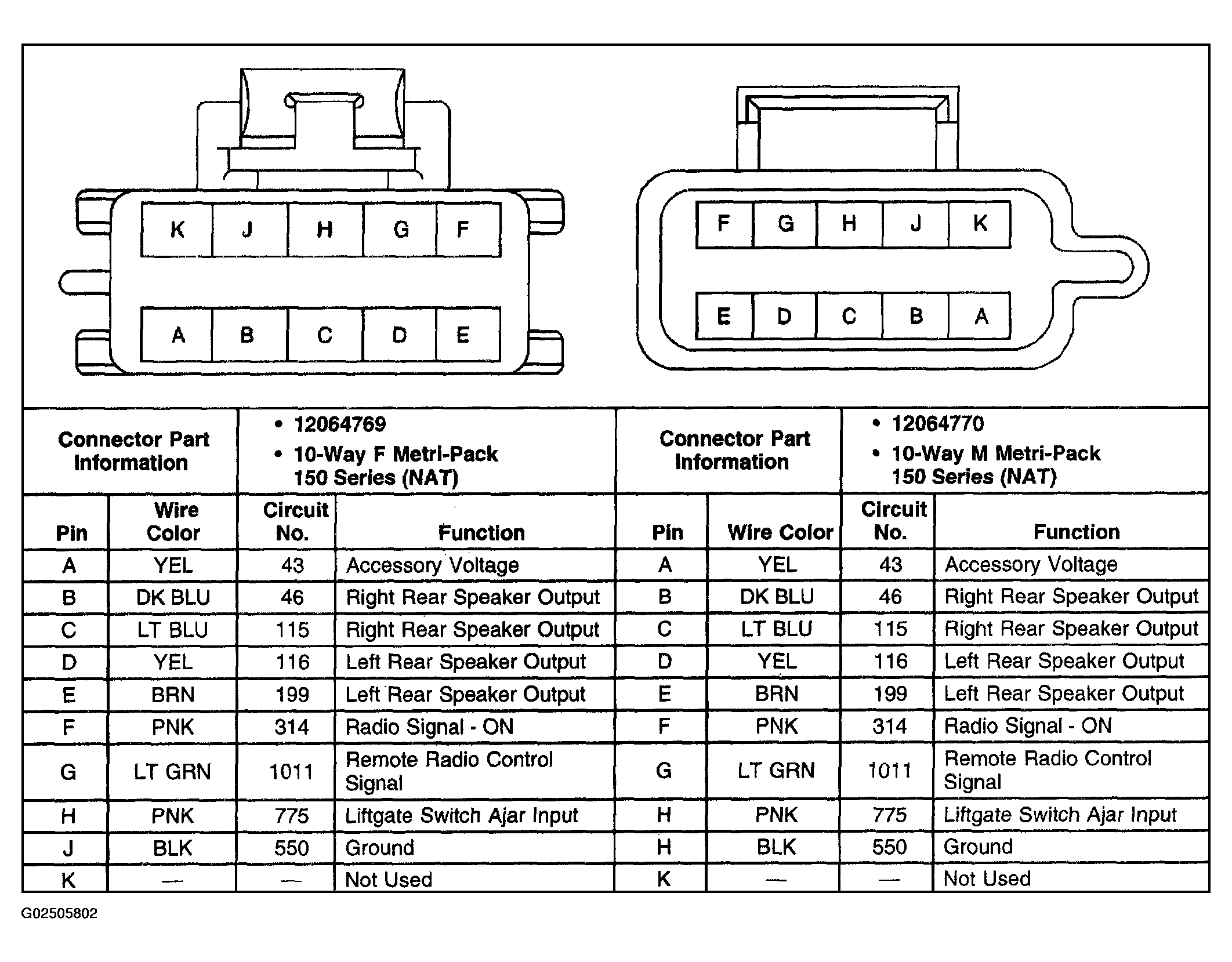

Fig 18: Identifying C300 (I/P-To-Main Body) Connector Terminals

G02505802

Courtesy of GENERAL MOTORS CORP.

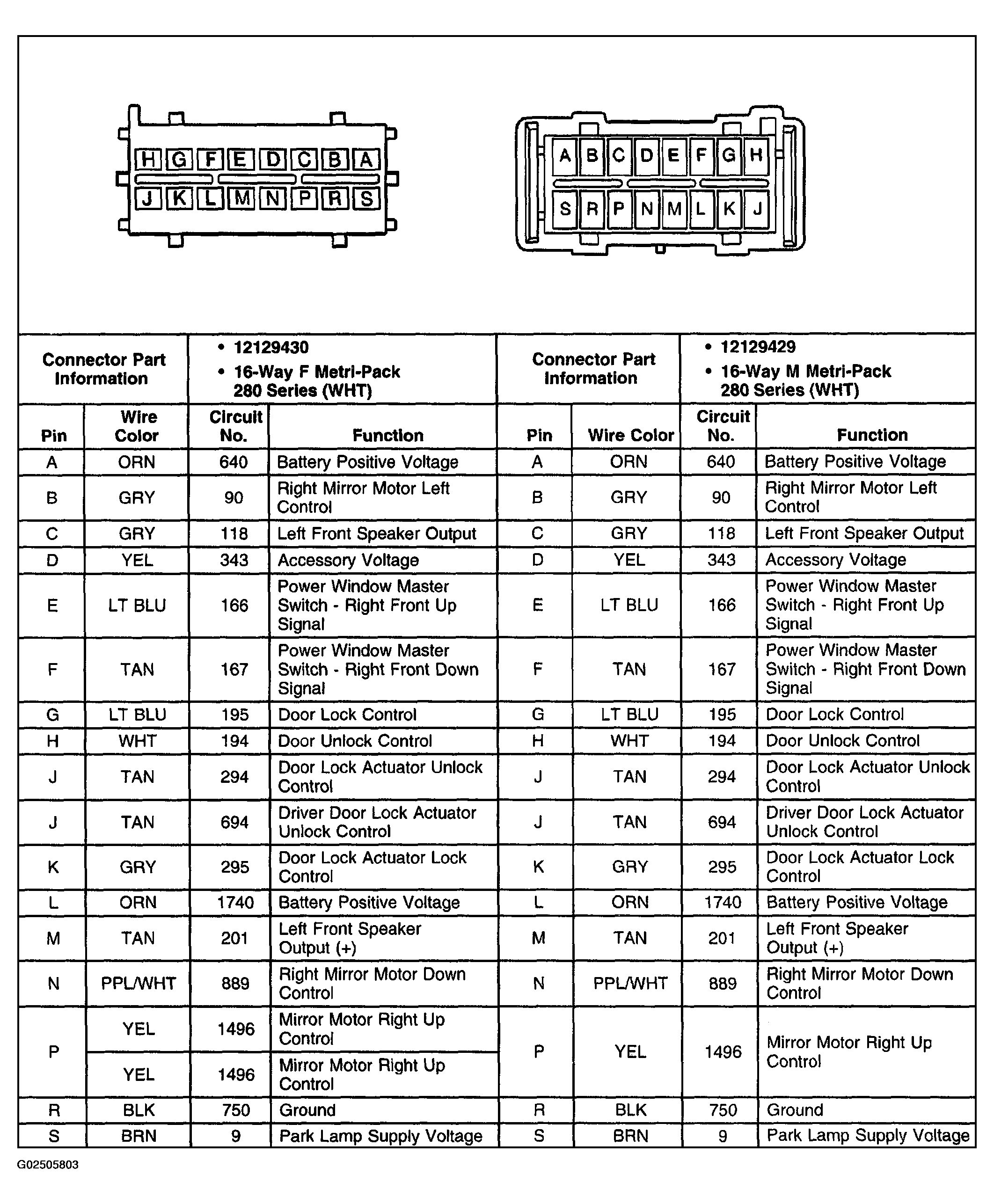

Fig 19: Identifying C301 (I/P-To-Left/Driver Door) Connector Terminals

G02505803

Courtesy of GENERAL MOTORS CORP.

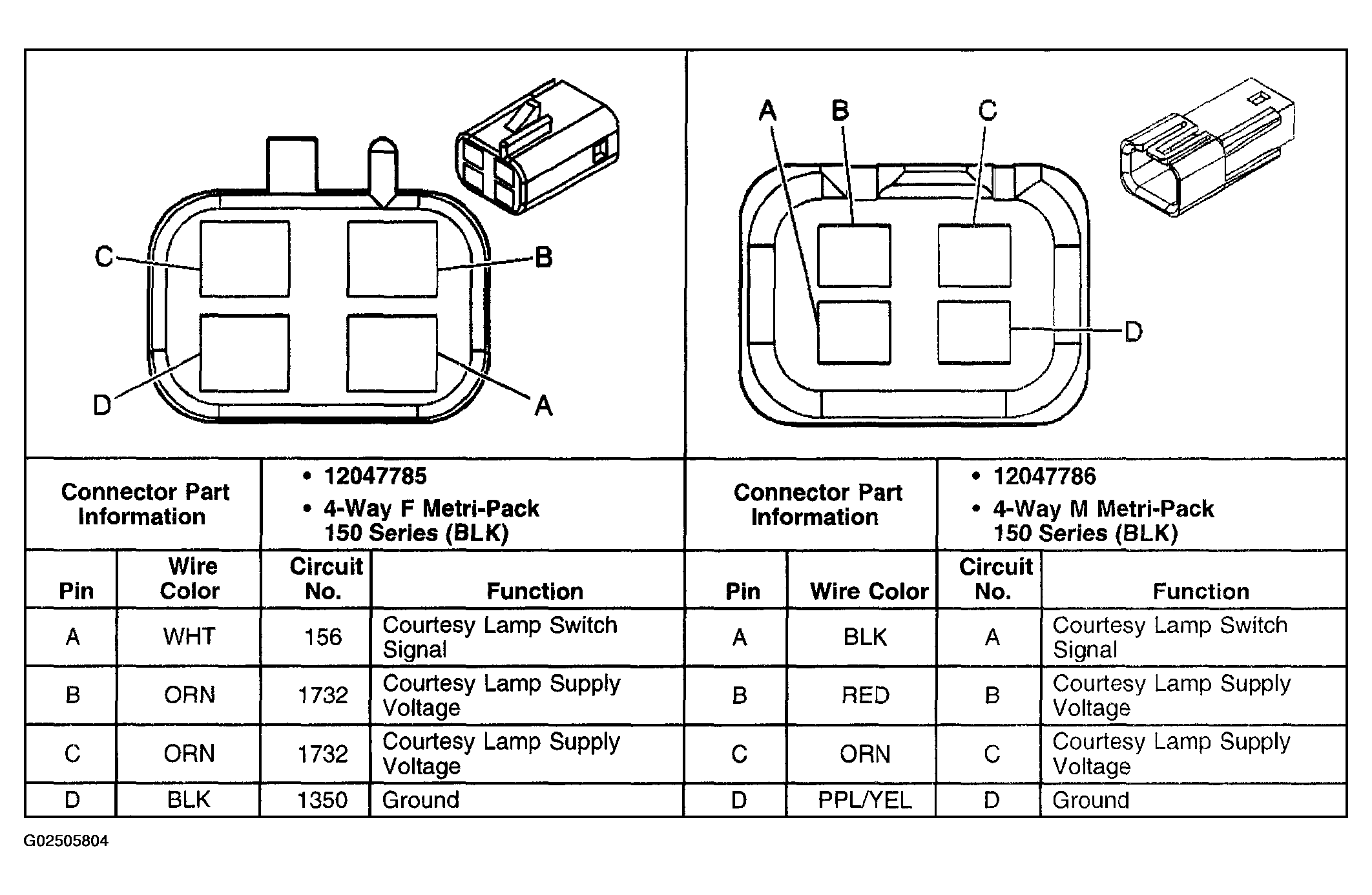

Fig 20: Identifying C302 (Body-To-Overhead Console) Connector Terminals

G02505804

Courtesy of GENERAL MOTORS CORP.

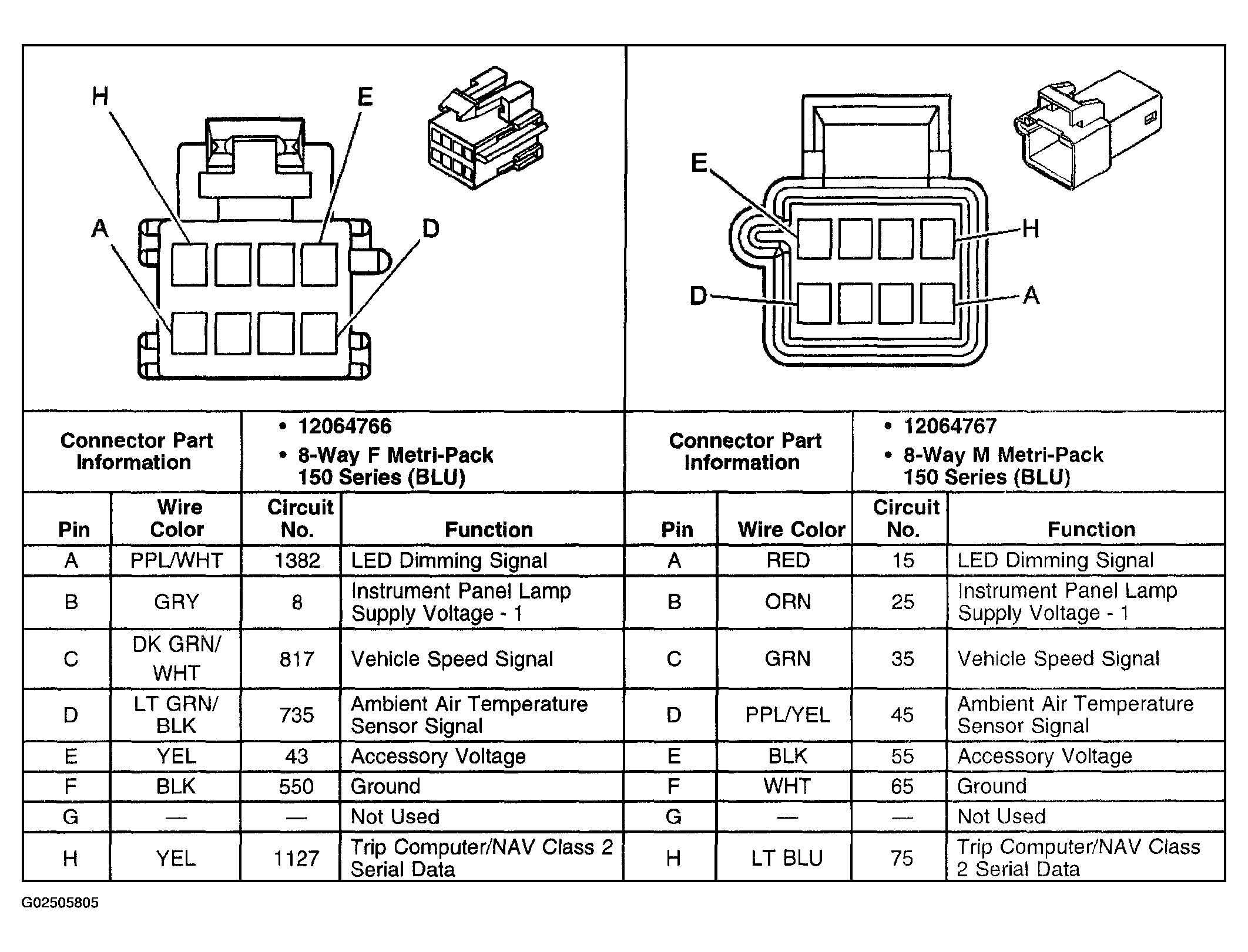

Fig 21: Identifying C303 (Body-To-Overhead Console) Connector Terminals

G02505805

Courtesy of GENERAL MOTORS CORP.

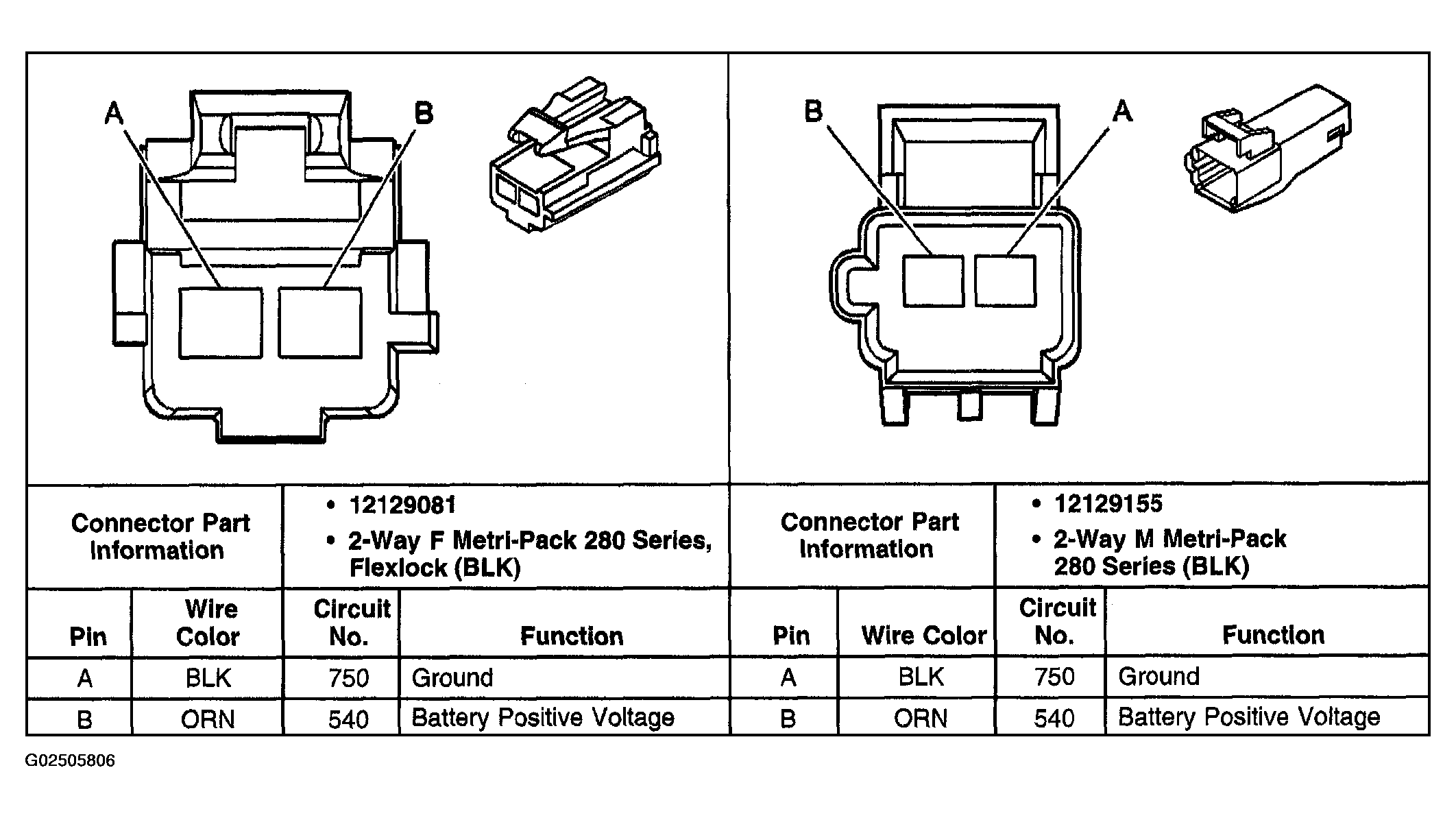

Fig 22: Identifying C306 (Power Seat Supply Voltage-To-LH Power Seat) Connector Terminals

G02505806

Courtesy of GENERAL MOTORS CORP.

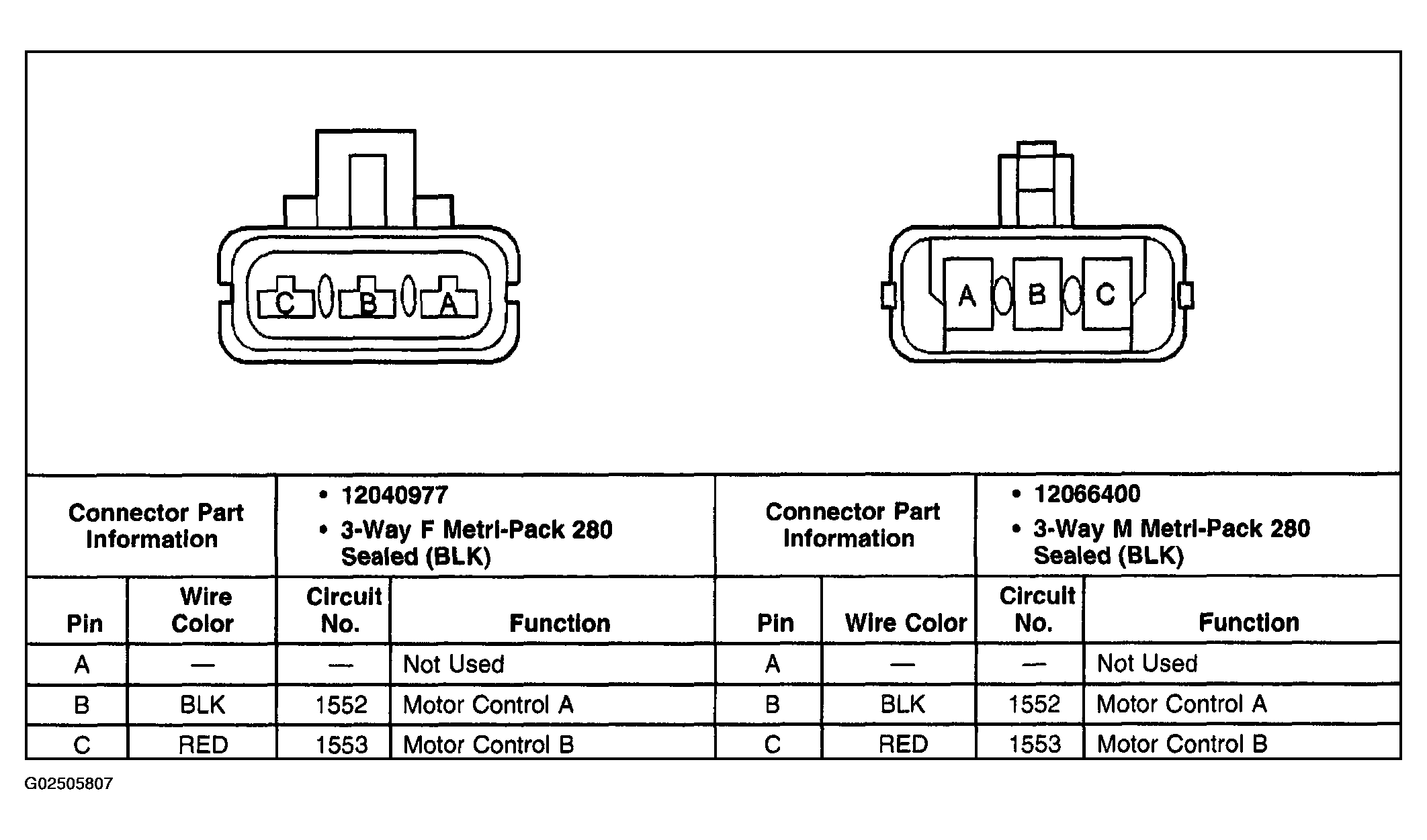

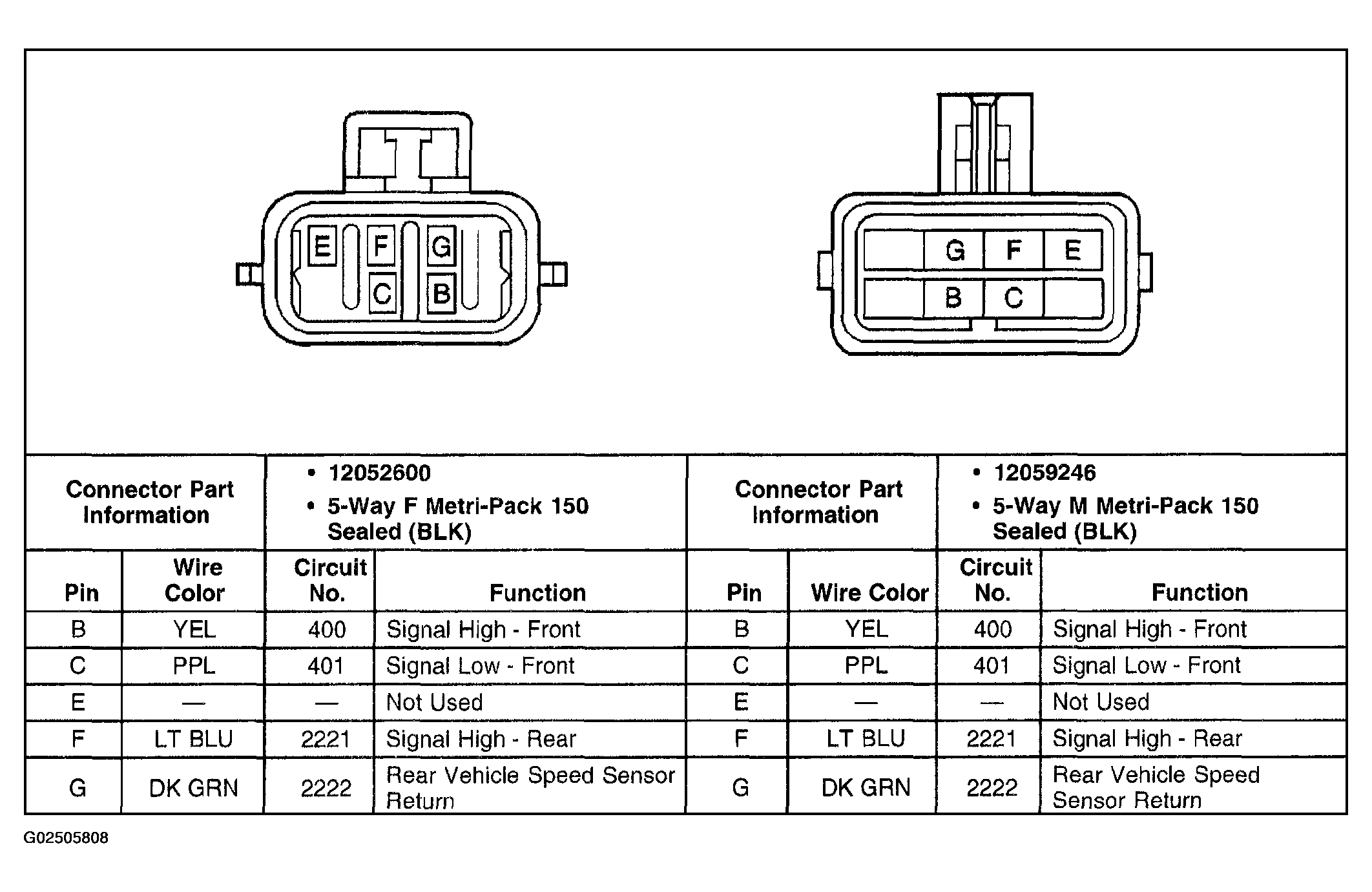

Fig 23: Identifying C308 (Transfer Case Harness-To-Transfer Case Extension Jumper) Connector Terminals

G02505807

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying C309 (Transfer Case Harness-To-Transfer Case Extension Jumper) Connector Terminals

G02505808

Courtesy of GENERAL MOTORS CORP.

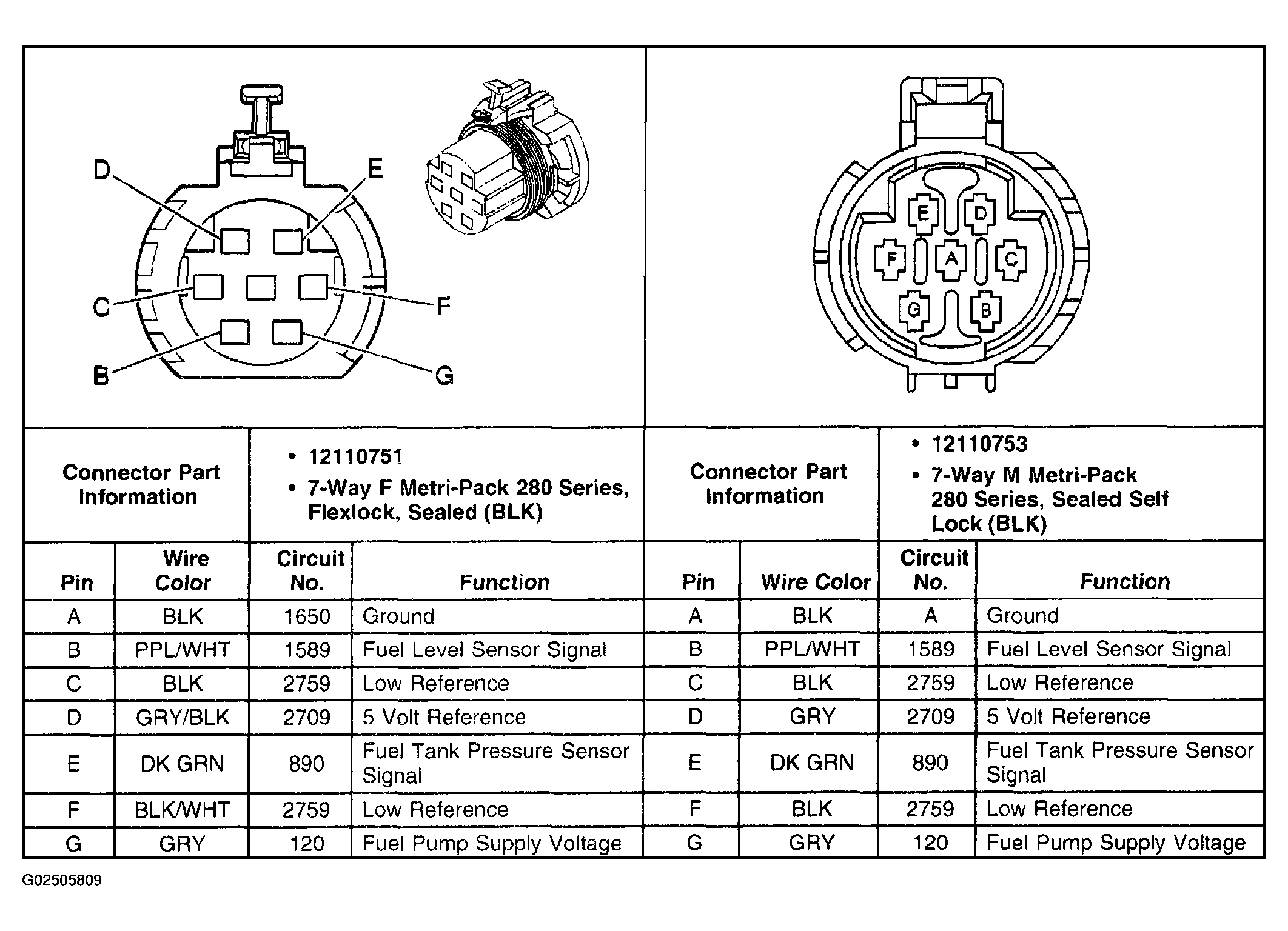

Fig 25: Identifying C310 (Engine-To-Fuel Pump Jumper) Connector Terminals

G02505809

Courtesy of GENERAL MOTORS CORP.

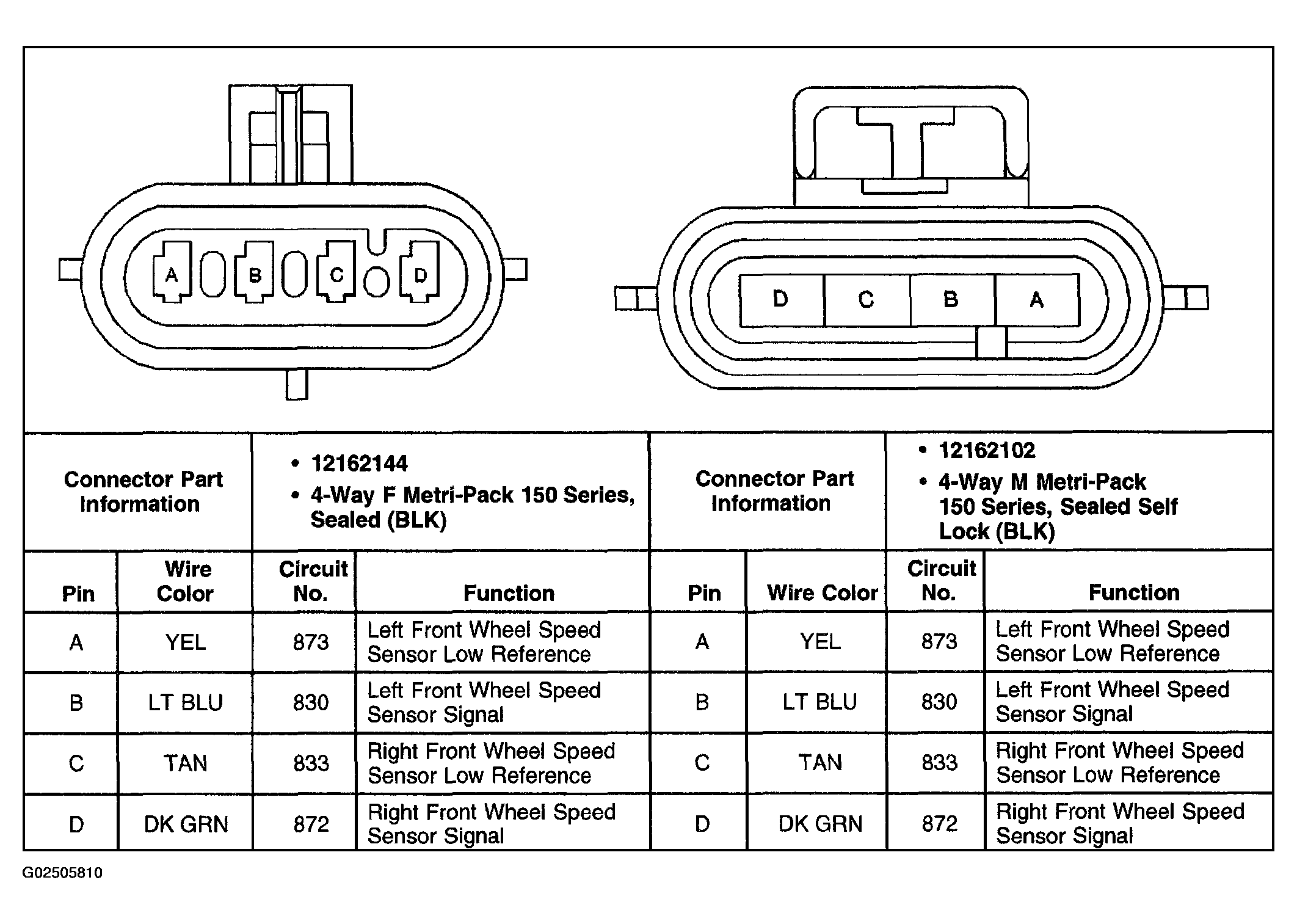

Fig 26: Identifying C314 (Engine-To-Wheel Speed Sensor Jumper) Connector Terminals

G02505810

Courtesy of GENERAL MOTORS CORP.

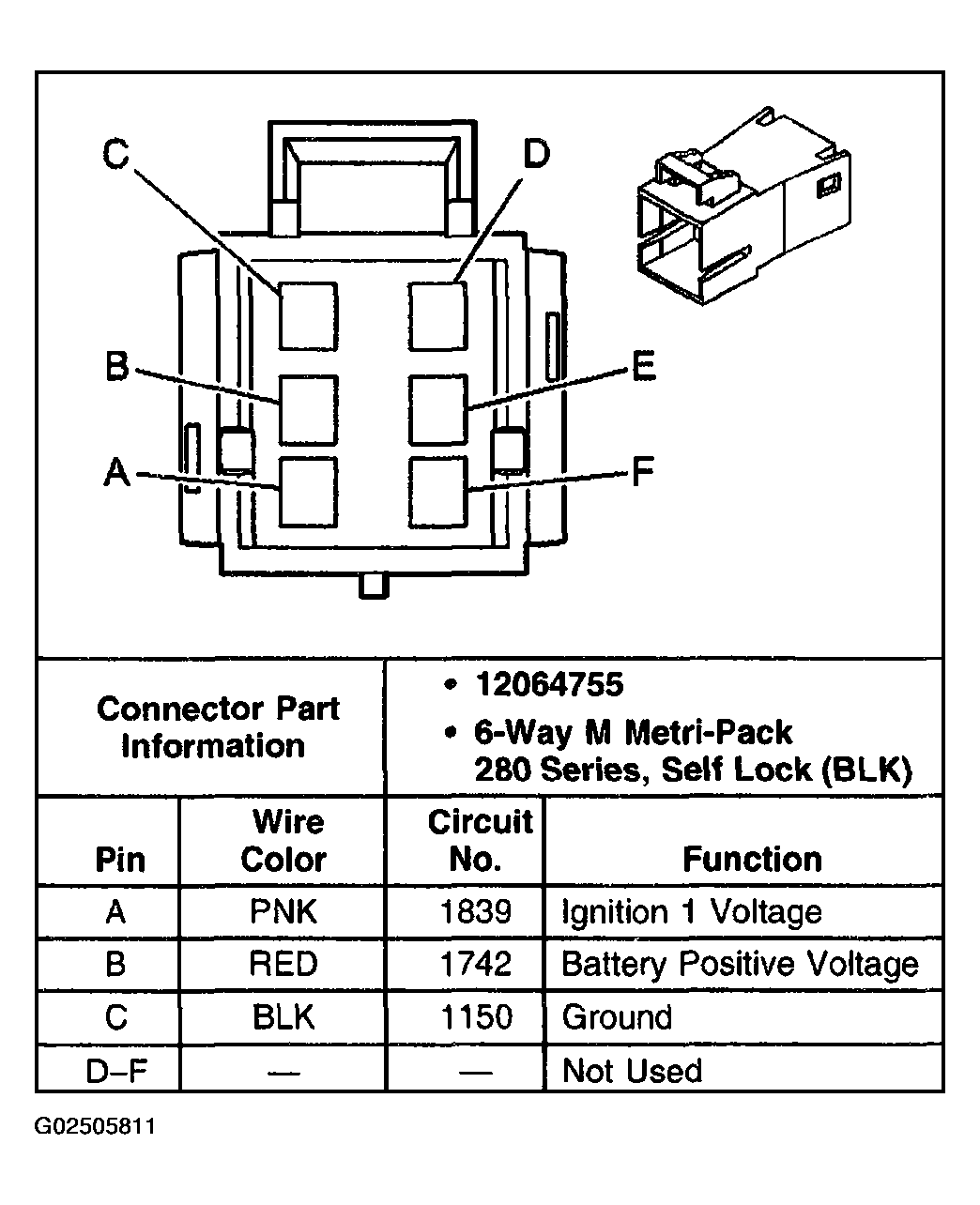

Fig 27: Identifying C333 (Upfitter Harness) Connector Terminals

G02505811

Courtesy of GENERAL MOTORS CORP.

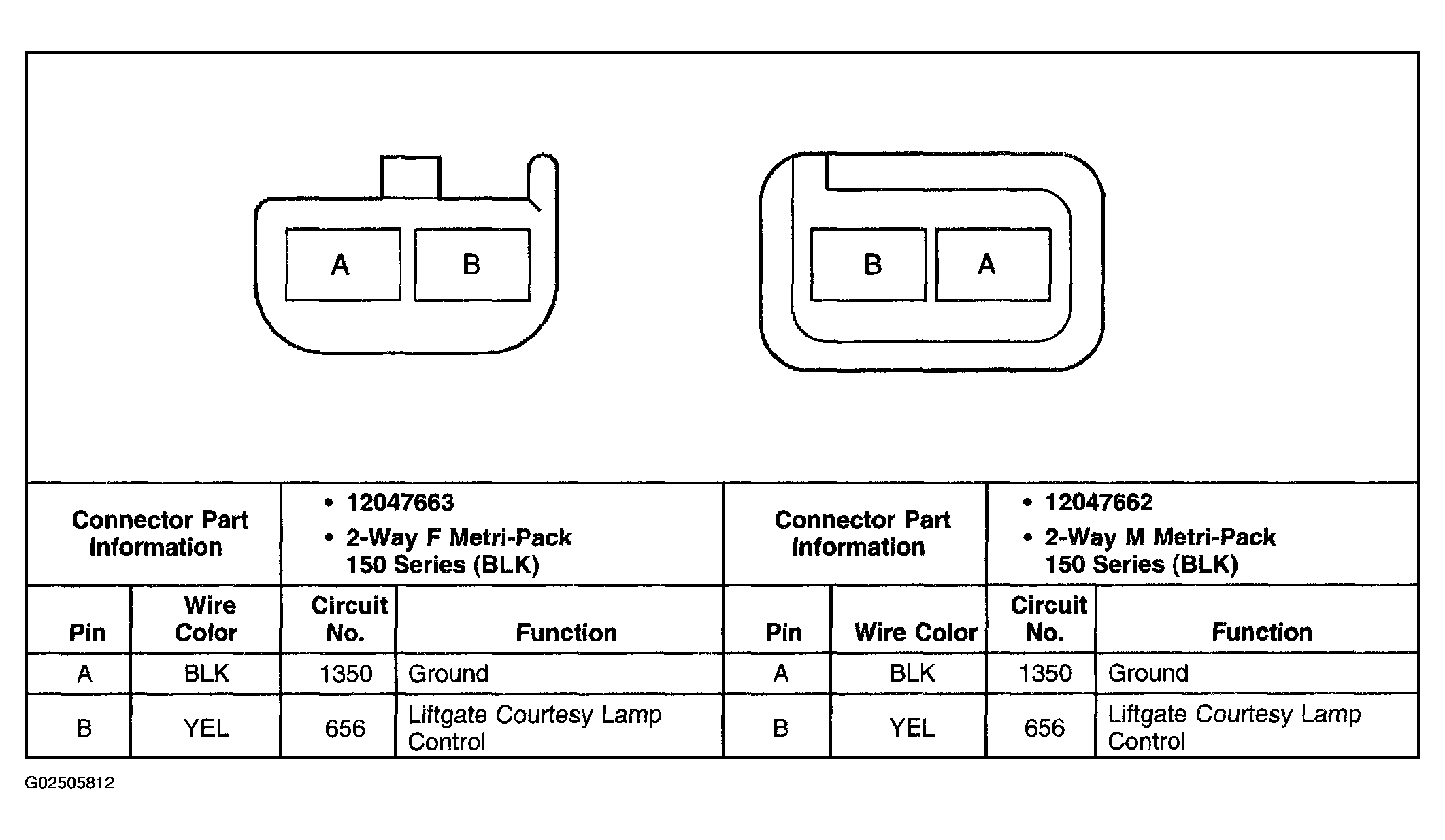

Fig 28: Identifying C401 (Main Body-To-Rear Door Jamb Switch) Connector Terminals

G02505812

Courtesy of GENERAL MOTORS CORP.

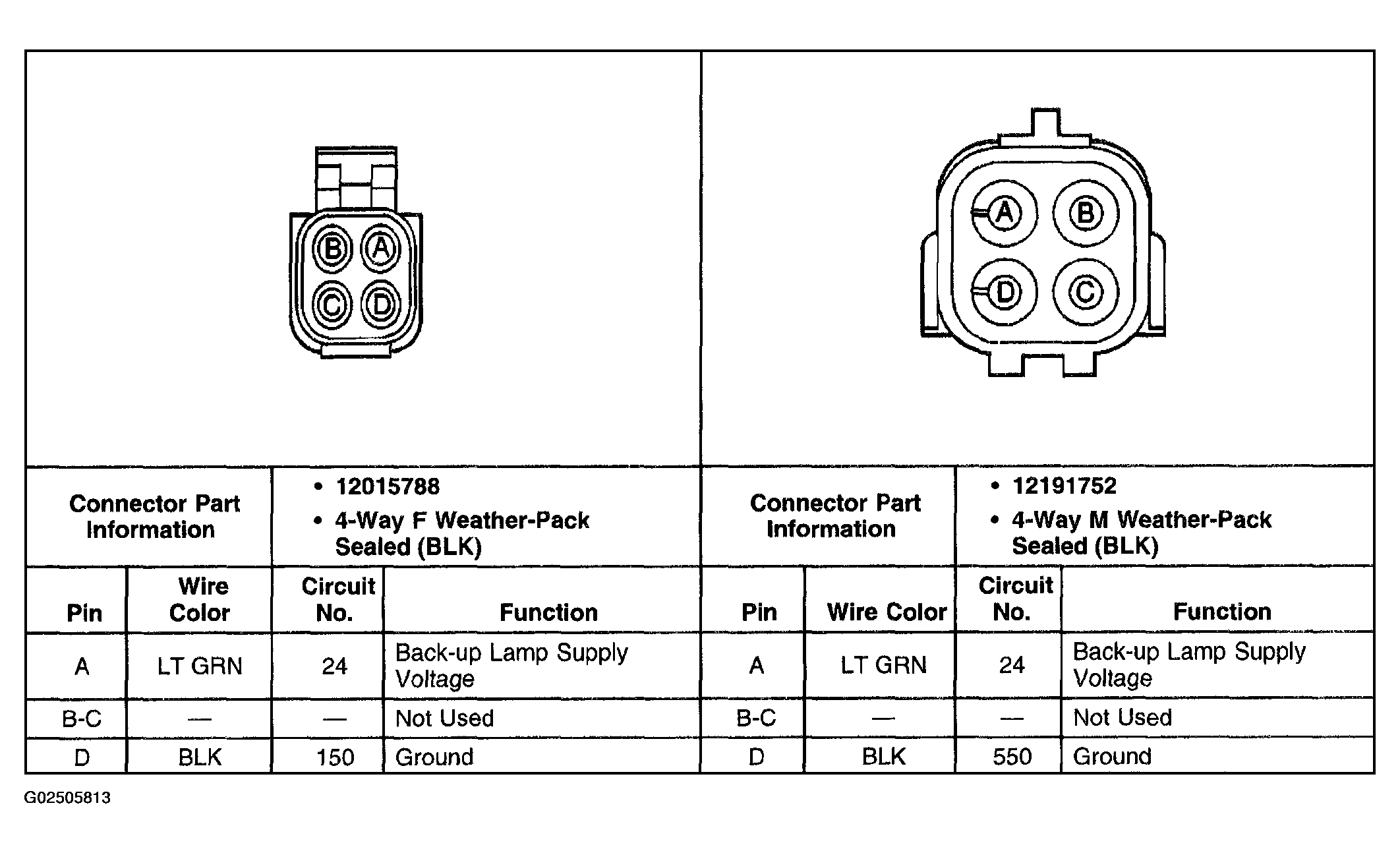

Fig 29: Identifying C403 (Rear Lamp Jumper-To-Rear Lamp Assembly Export w/WX7) Connector Terminals

G02505813

Courtesy of GENERAL MOTORS CORP.

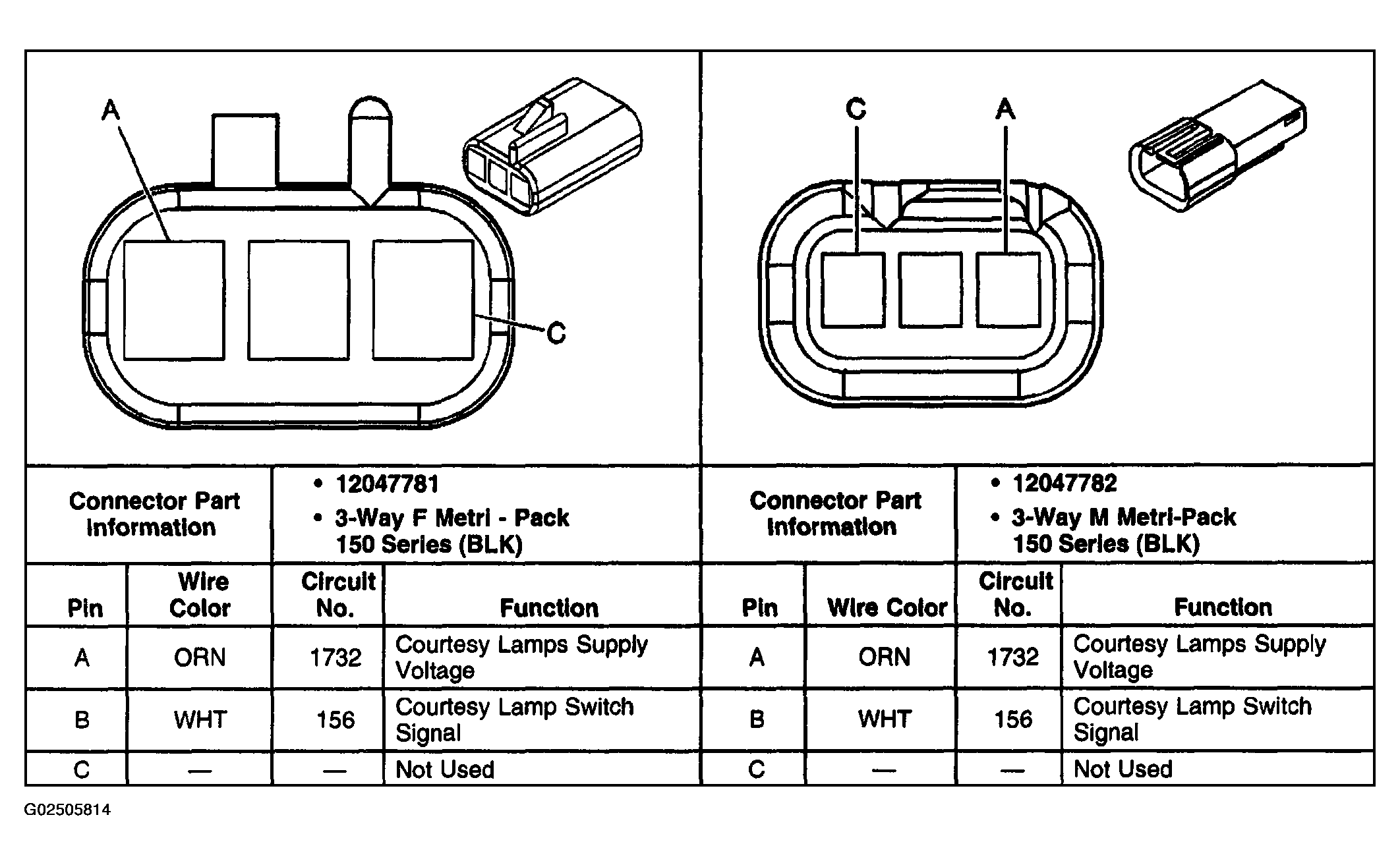

Fig 30: Identifying C404 (Main Body-To-Rear Dome Lamp) Connector Terminals

G02505814

Courtesy of GENERAL MOTORS CORP.
