Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case front speed sensor electrical connector.

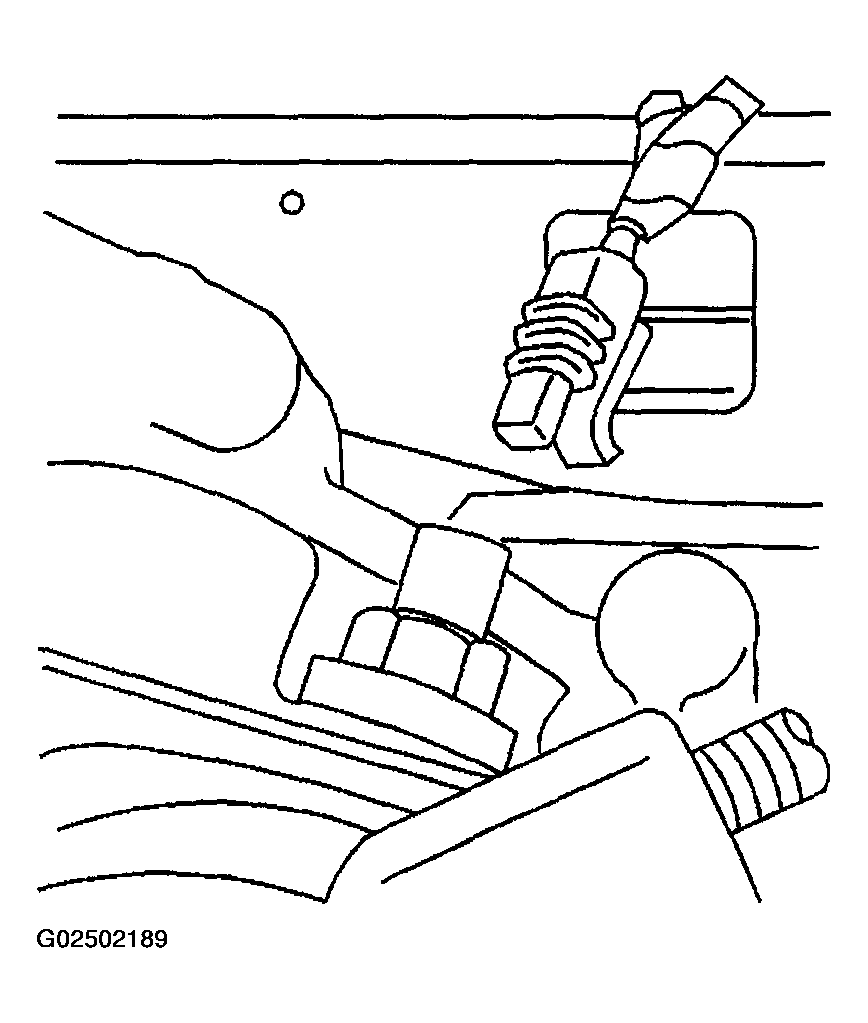

    Fig 1: Transfer Case Front Speed Sensor Electrical Connector
    G02502189Courtesy of GENERAL MOTORS CORP.
  3. Remove the transfer case front speed sensor.

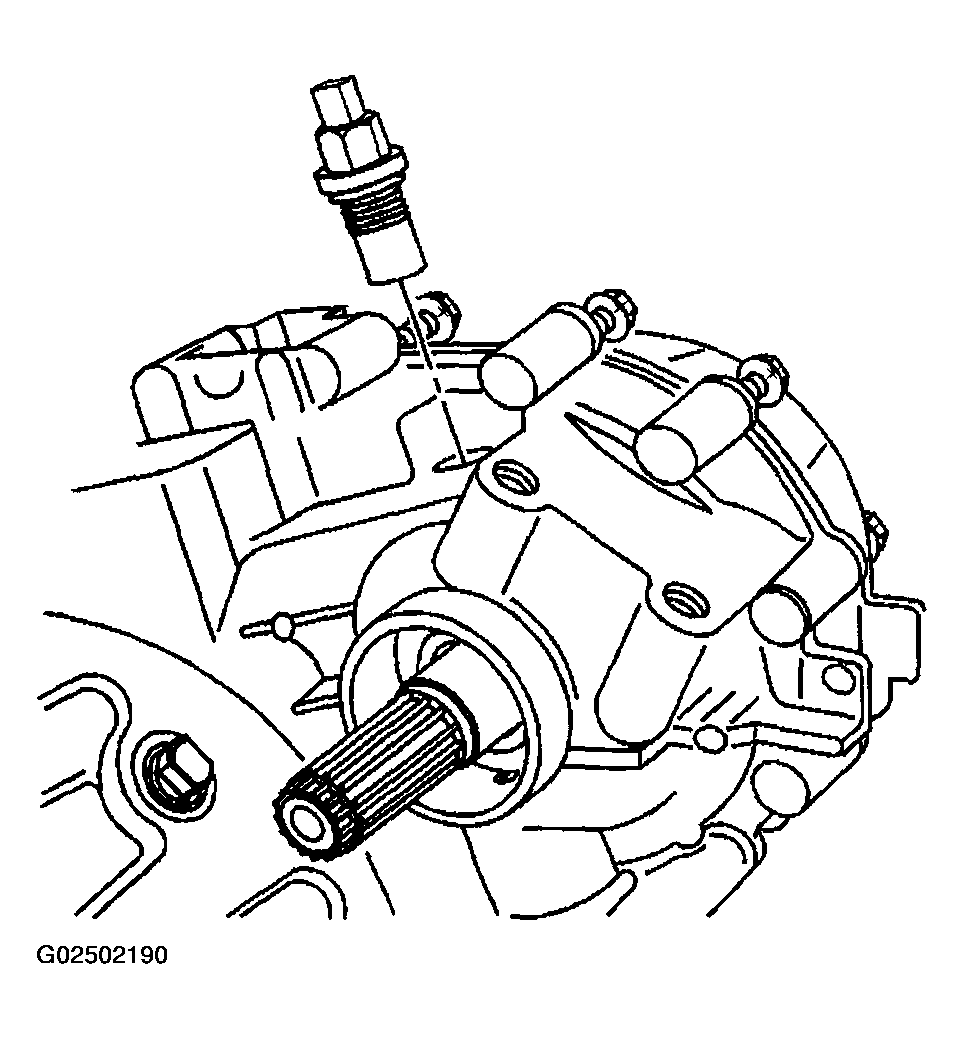

    Fig 2: Transfer Case Front Speed Sensor
    G02502190Courtesy of GENERAL MOTORS CORP.
