Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking brake assembly. Refer to PARKING BRAKE PEDAL .

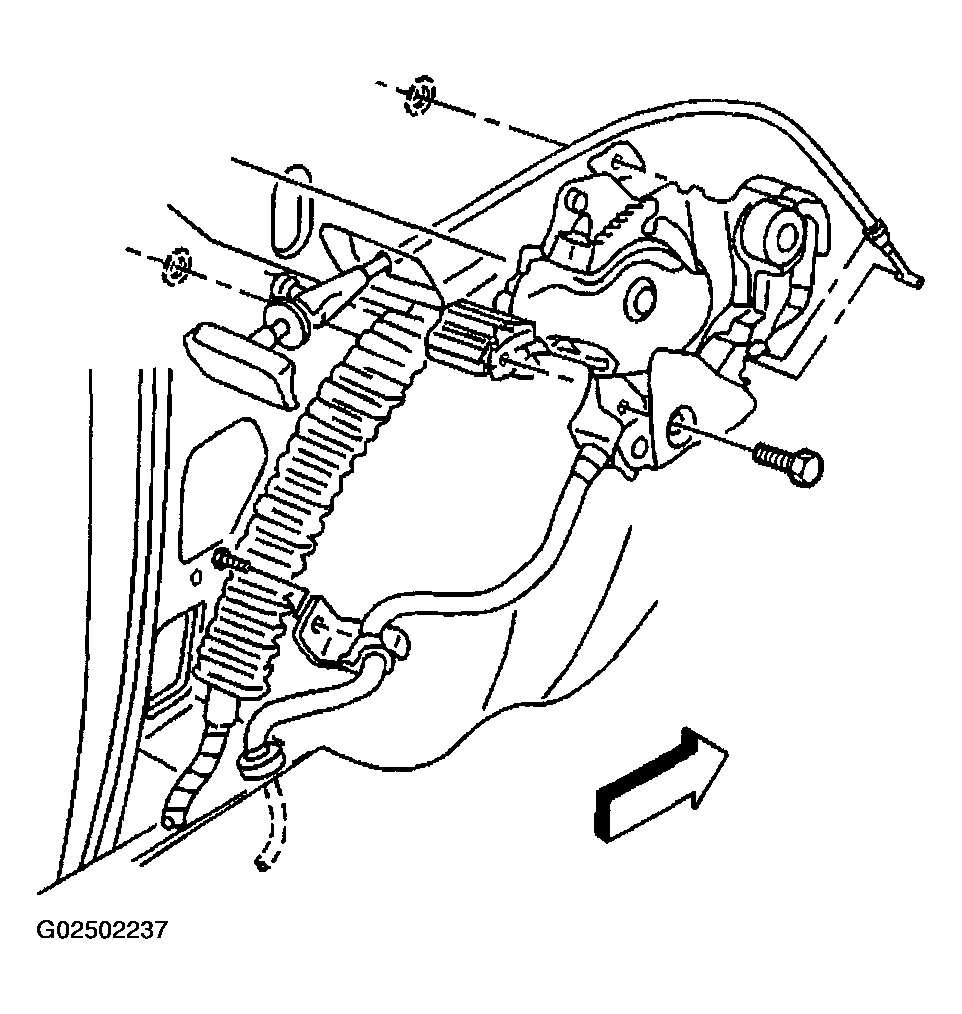

    2. Fig 1: Parking Brake Cable
    G02502237Courtesy of GENERAL MOTORS CORP.
  2. Remove the lower dash panel.

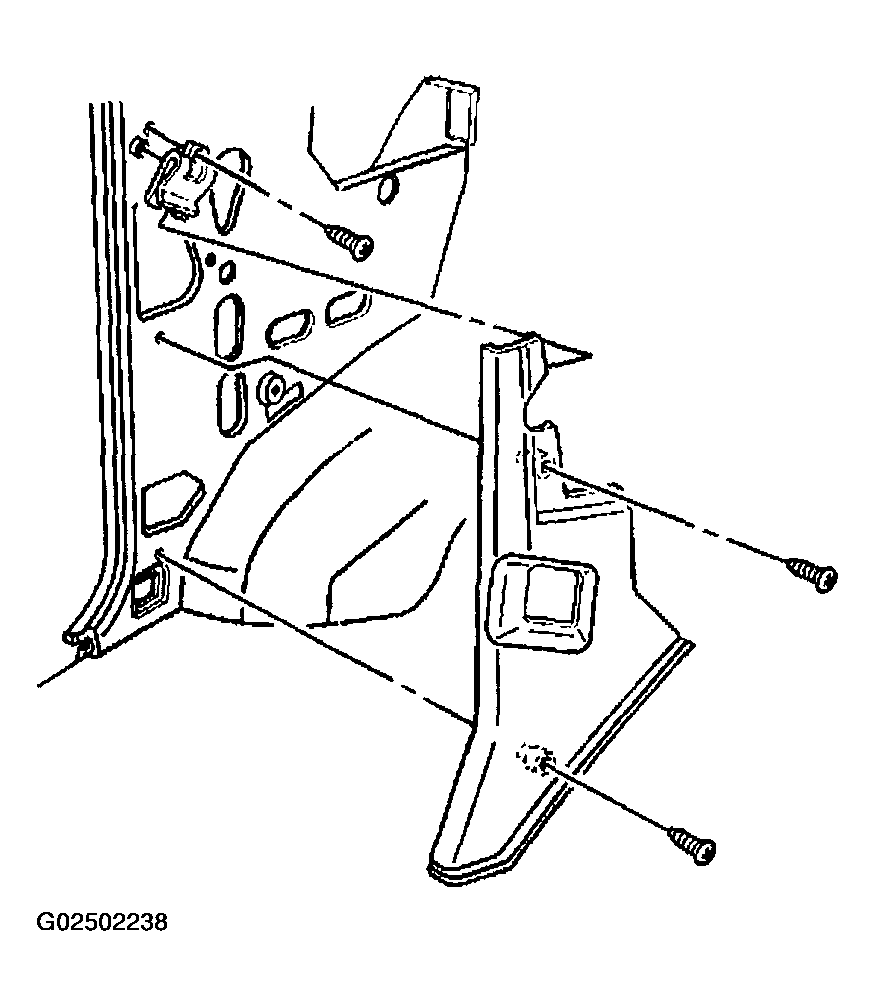

    Fig 2: Lower Dash Panel
    G02502238Courtesy of GENERAL MOTORS CORP.
  3. Remove the electrical connectors from the control module.
  4. Remove the mounting screws for the control module.
  5. Remove the control module from the mounting bracket.

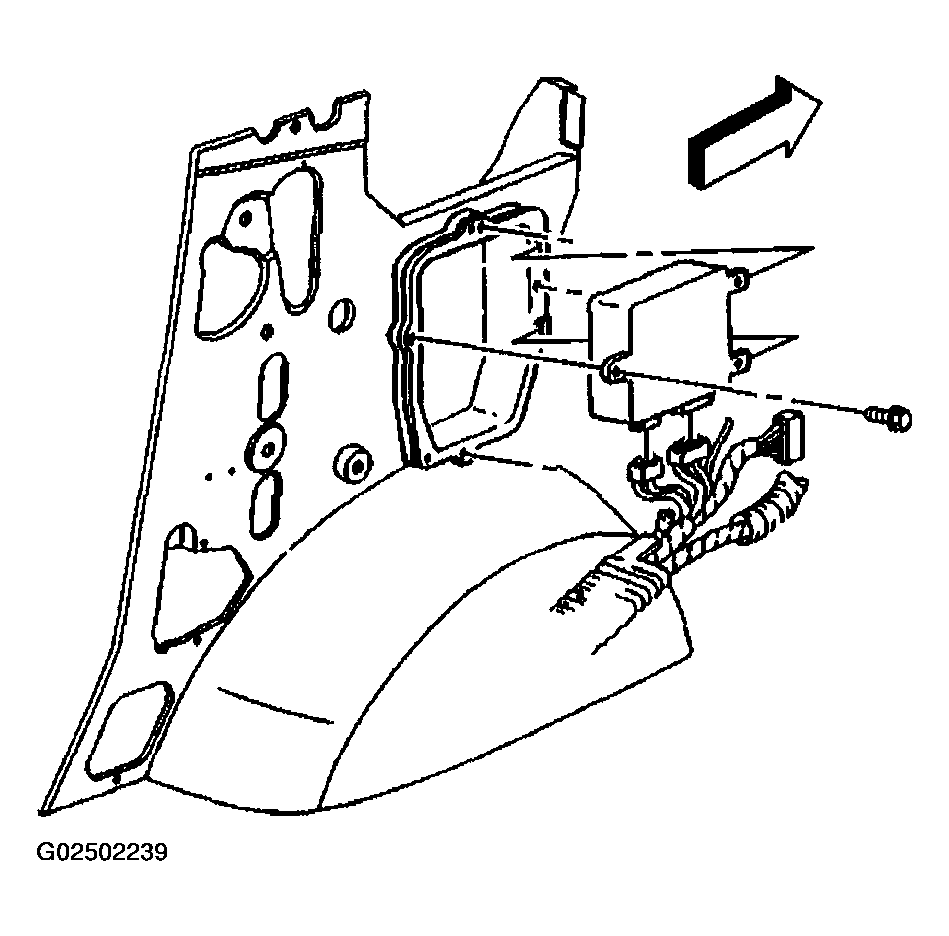

    Fig 3: Transfer Case Shift Control Module
    G02502239Courtesy of GENERAL MOTORS CORP.
