Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the J 37668-A  , install the transfer case rear output shaft seal.

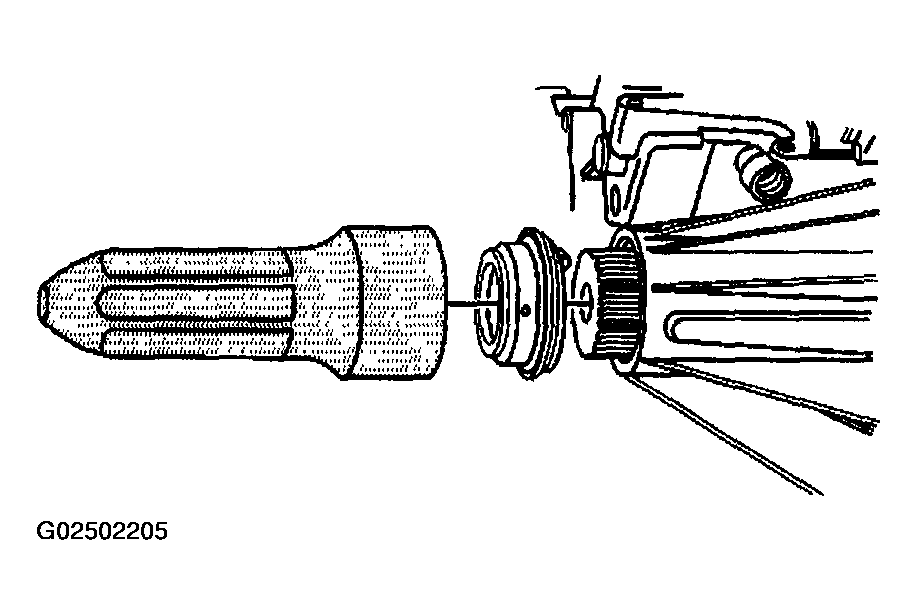

    2. Fig 1: Installing Transfer Case Rear Output Shaft Seal
    G02502205Courtesy of GENERAL MOTORS CORP.
  2. Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - REAR .
  3. Check the transfer case fluid level. Refer to Transfer Case Fluid Replacement .
  4. Lower the vehicle.
