Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the engine brace mounting bolt.
  3. Remove the engine brace.

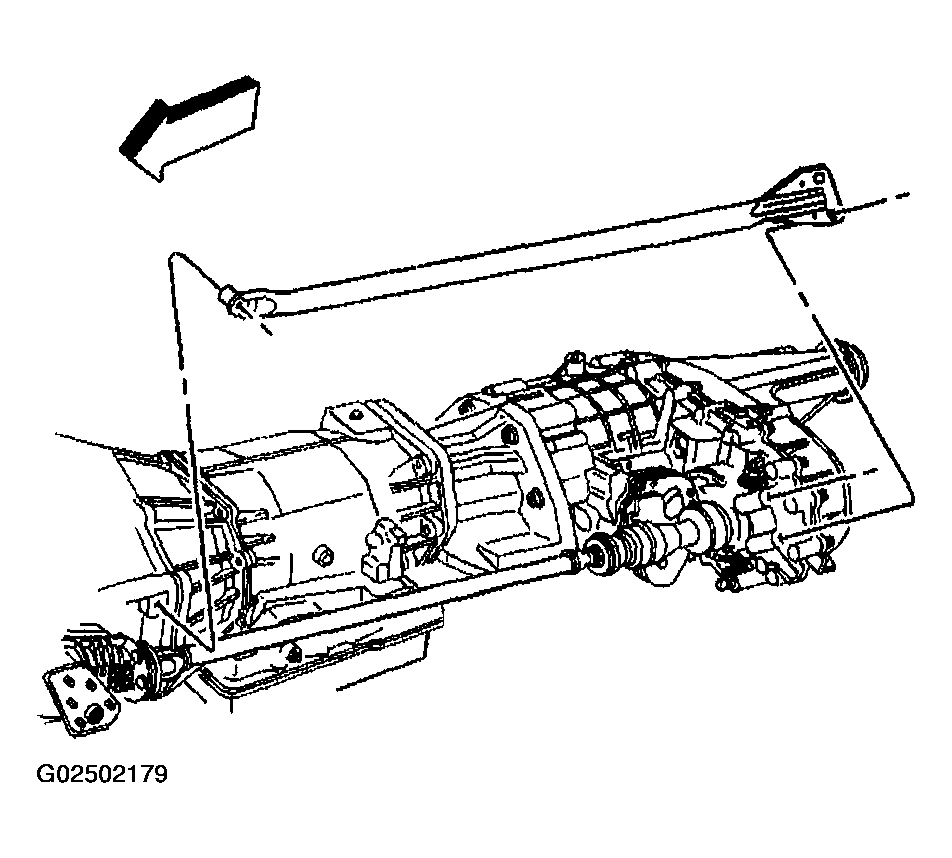

    4. Fig 1: Engine Brace
    G02502179Courtesy of GENERAL MOTORS CORP.
  4. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT .
  5. Remove the motor/encoder electrical connector.

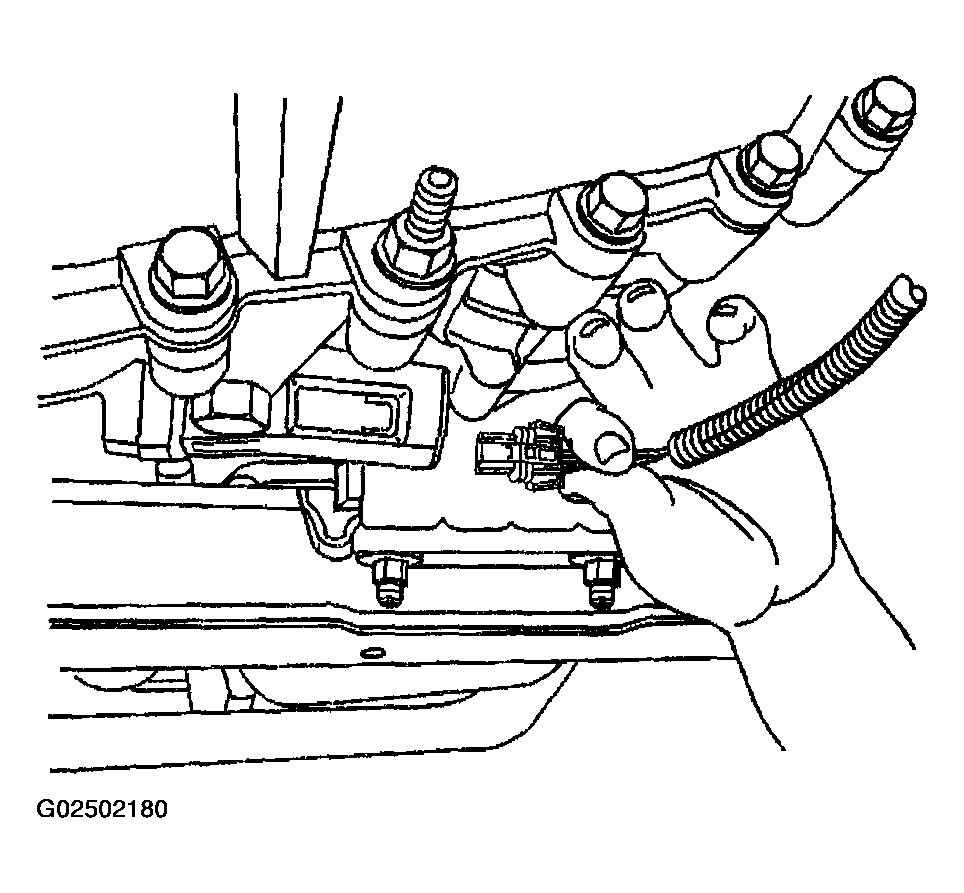

    Fig 2: Motor/Encoder Electrical Connector
    G02502180Courtesy of GENERAL MOTORS CORP.
  6. Remove the motor/encoder mounting bolts.

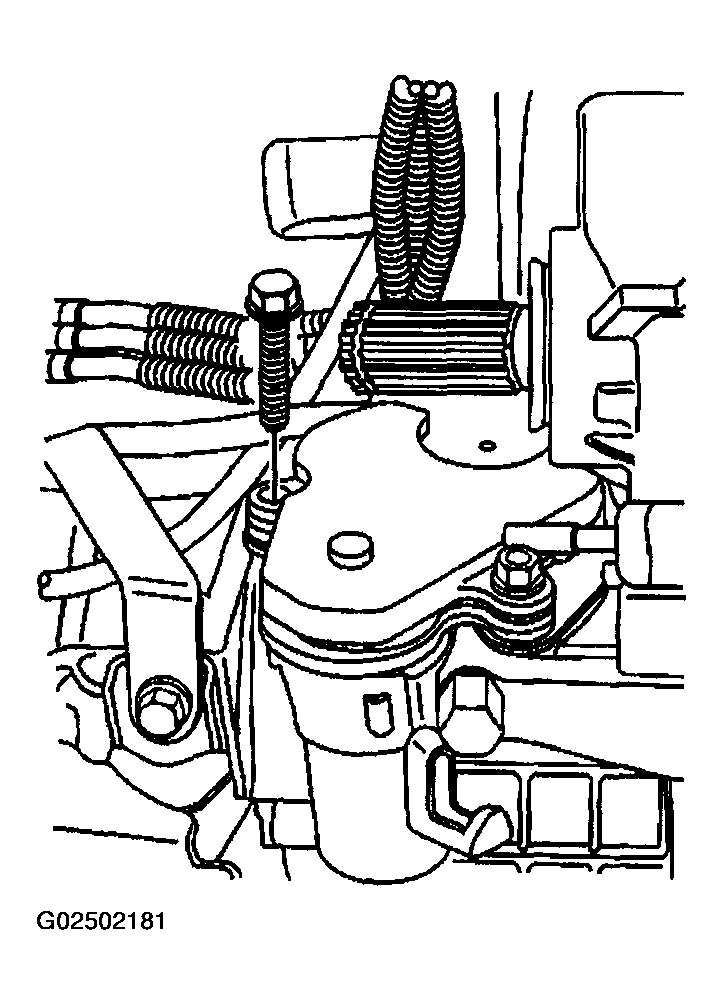

    Fig 3: Motor/Encoder Mounting Bolt
    G02502181Courtesy of GENERAL MOTORS CORP.
  7. Remove the motor/encoder assembly.

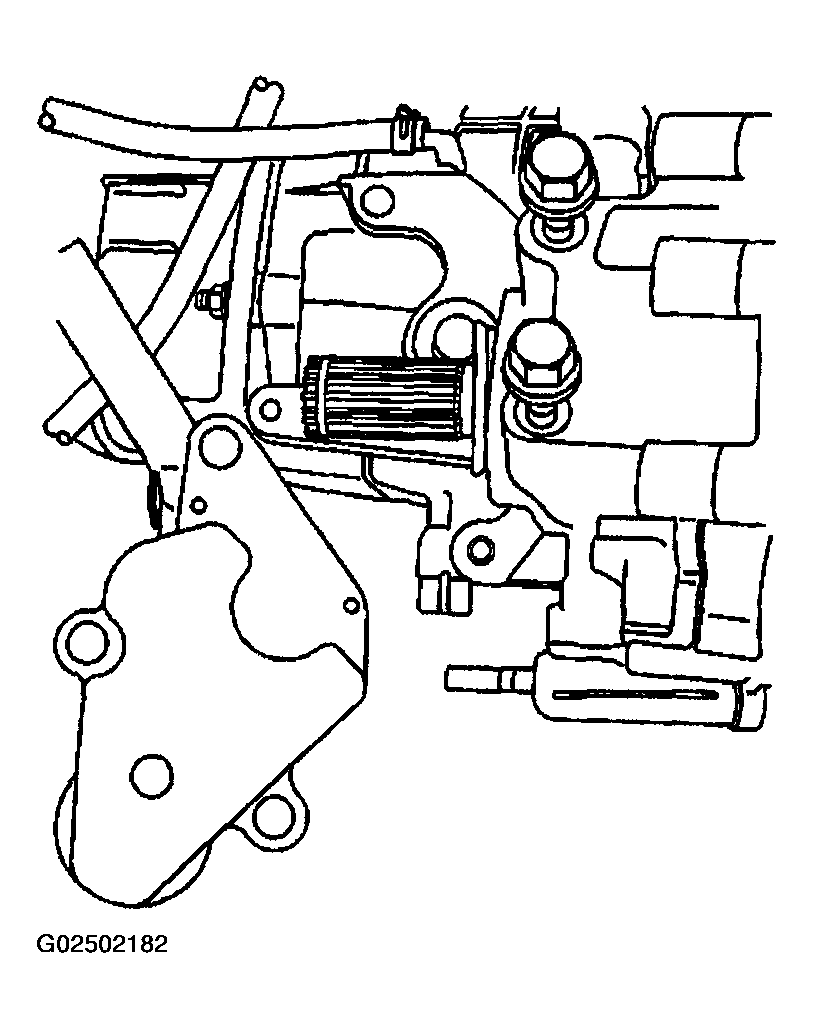

    Fig 4: Motor/Encoder Assembly
    G02502182Courtesy of GENERAL MOTORS CORP.
  8. Remove the motor/encoder gasket.

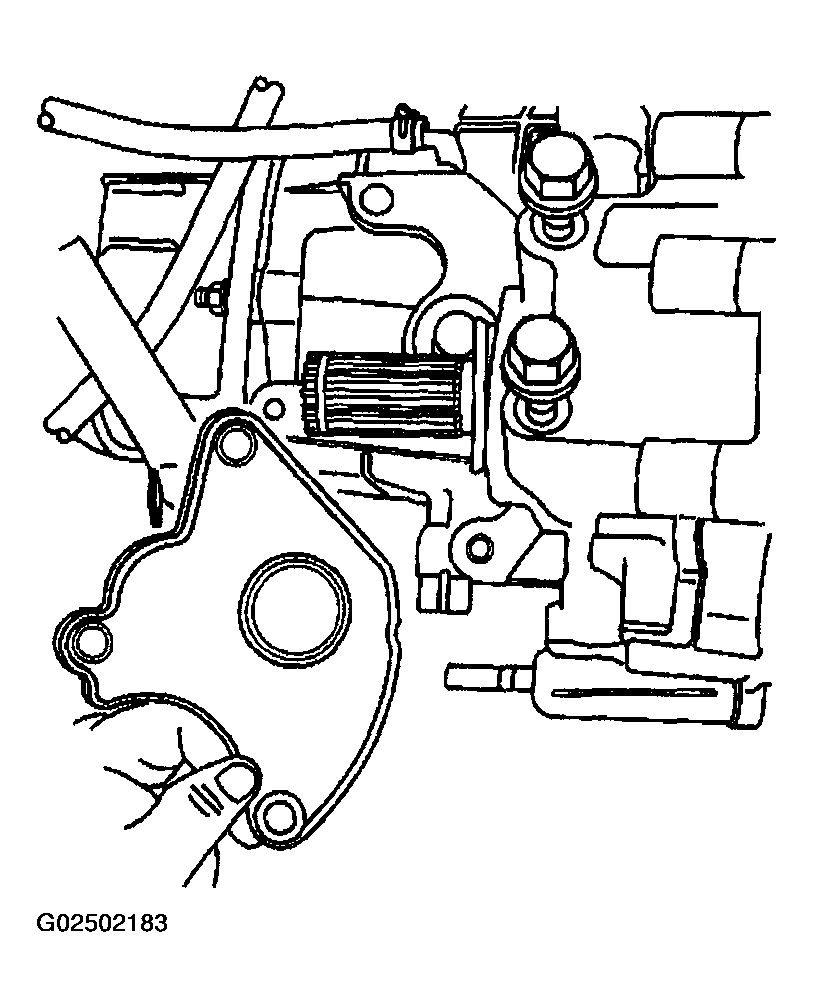

    Fig 5: Motor/Encoder Gasket
    G02502183Courtesy of GENERAL MOTORS CORP.
