Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case assembly. Refer to Transfer Case Assembly Replacement .
    NOTE: Do not damage the sealing surfaces of the transfer cases or the shafts when prying the seals for removal. Damaging the sealing surface may cause leakage or require replacement of the damaged component.
  3. Remove the transfer case input shaft seal.

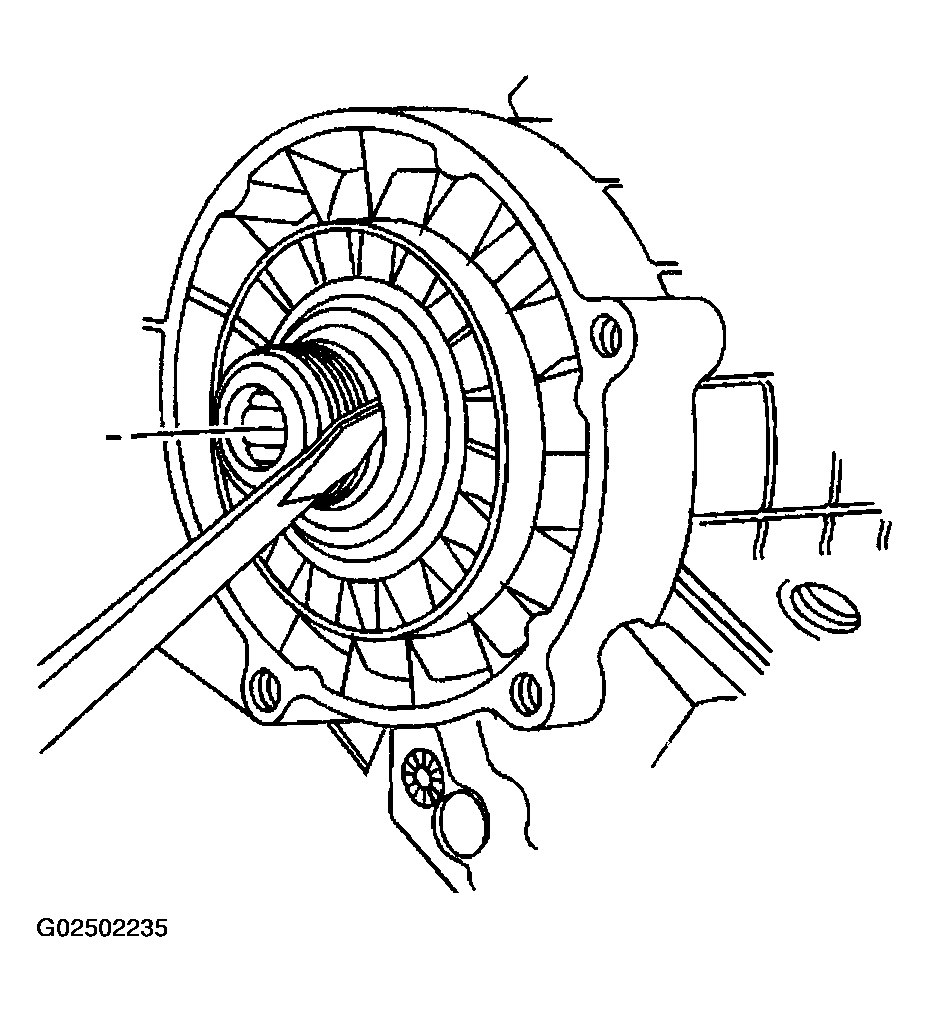

    Fig 1: Removing Transfer Case Input Shaft Seal
    G02502235Courtesy of GENERAL MOTORS CORP.
