Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Important: When servicing the transfer case, use only hand tools when removing the transfer case fill or drain plugs.

Raise the vehicle.
Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
Important: If the transfer case drain or fill plugs are damaged and need to be replaced, use only replacement plugs that are made from aluminum.
Remove the transfer case fill plug.

Fig 1: Transfer Case Fill Plug
Courtesy of GENERAL MOTORS CORP.

Important: When draining the transfer case oil, always the proper container for draining.
Remove the transfer case drain plug.

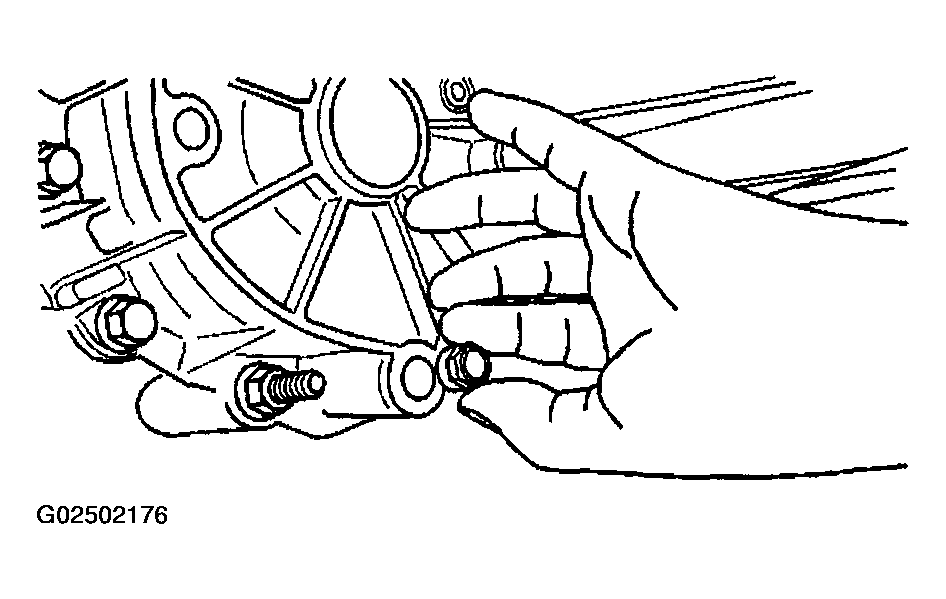

Fig 2: Transfer Case Drain Plug
Courtesy of GENERAL MOTORS CORP.
