Test Description

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2)  - Determines whether the failure is the result of a faulty transfer case shift control module or the instrument cluster.

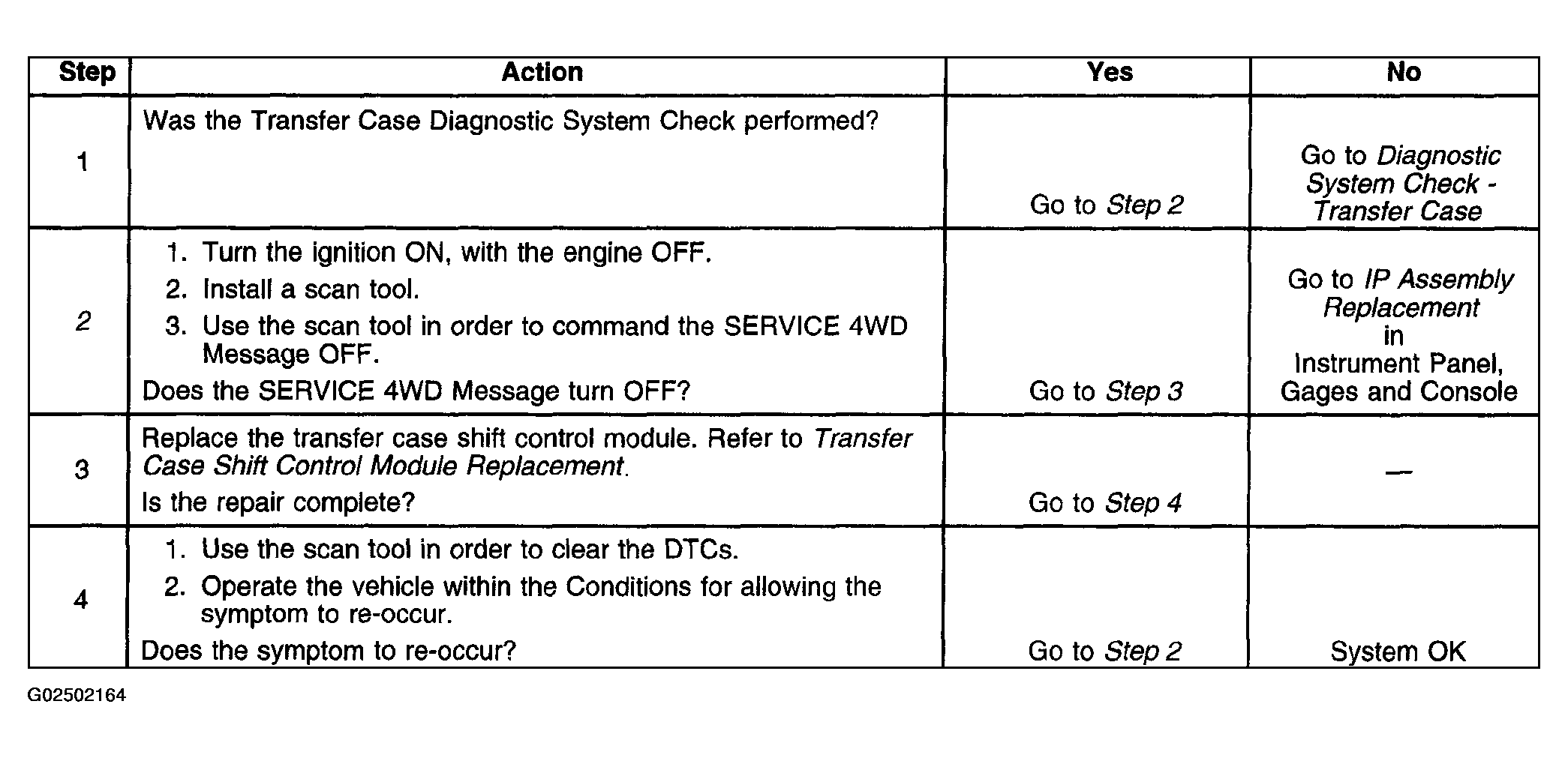

Fig 1: Service Indicator Always On Diagnosis
G02502164Courtesy of GENERAL MOTORS CORP.
