Transfer Case Control Connector End Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

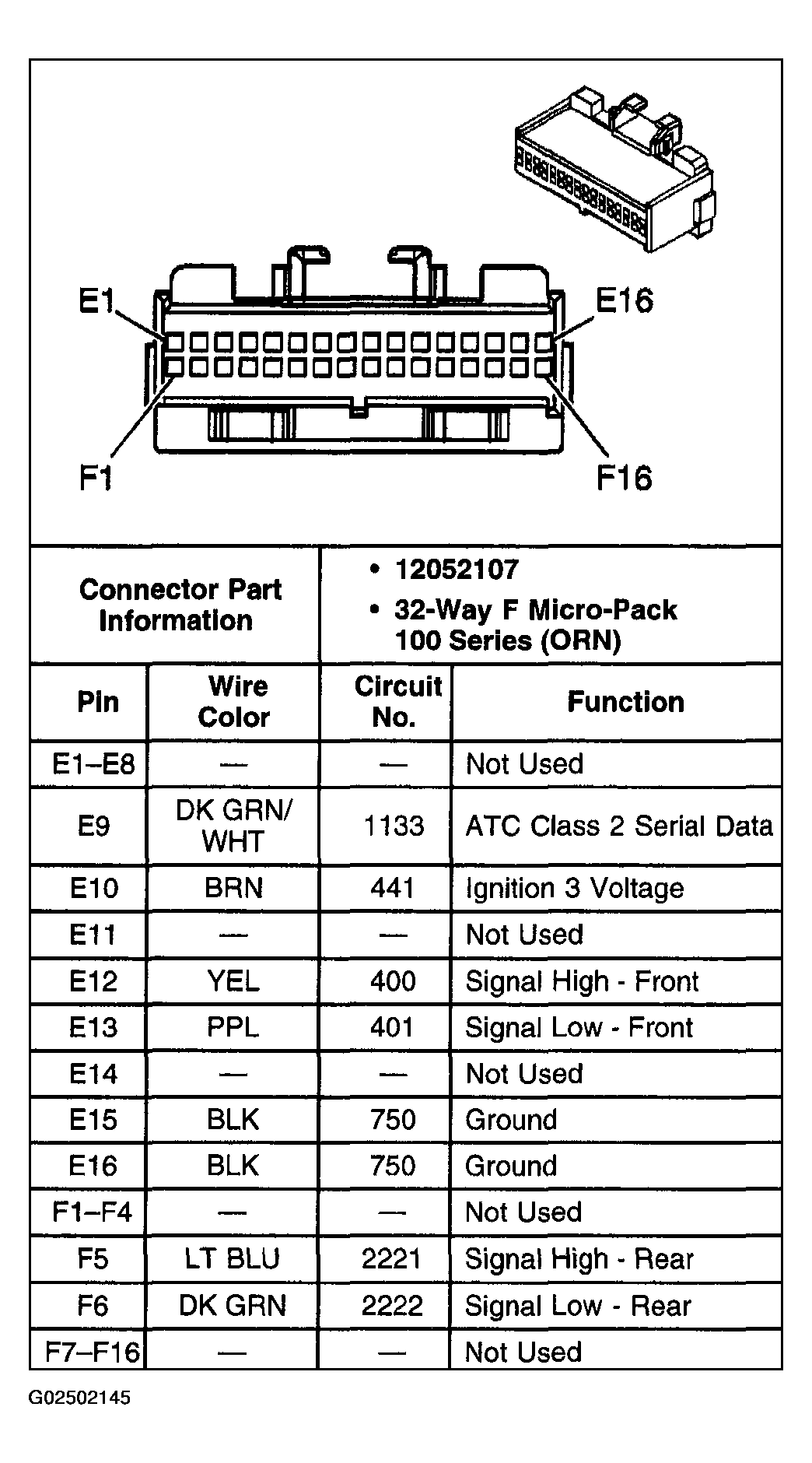

Fig 1: Identifying Transfer Case Shift Control Module C1 Electrical Connector
G02502145Courtesy of GENERAL MOTORS CORP.

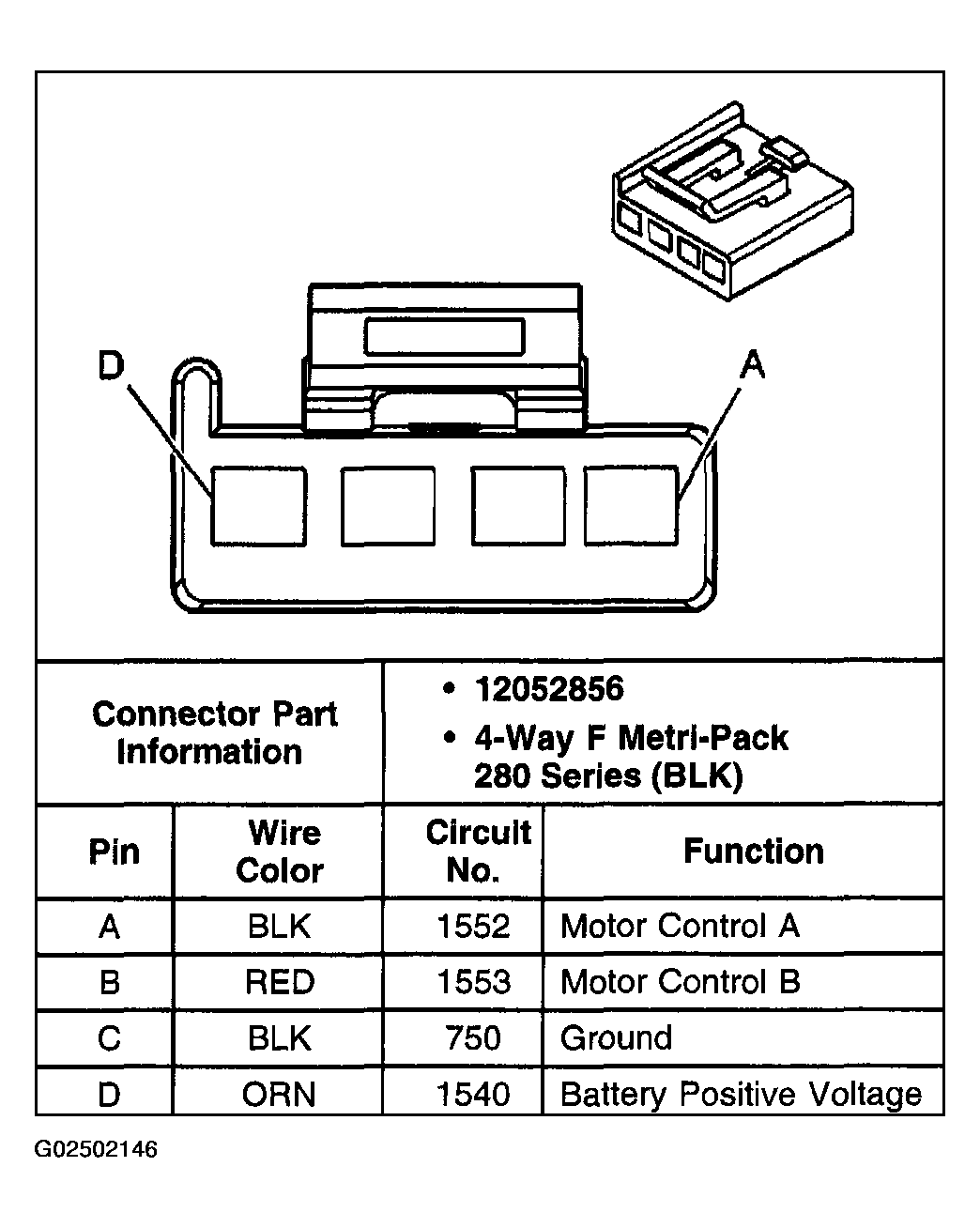

Fig 2: Identifying Transfer Case Shift Control Module C2 Electrical Connector
G02502146Courtesy of GENERAL MOTORS CORP.

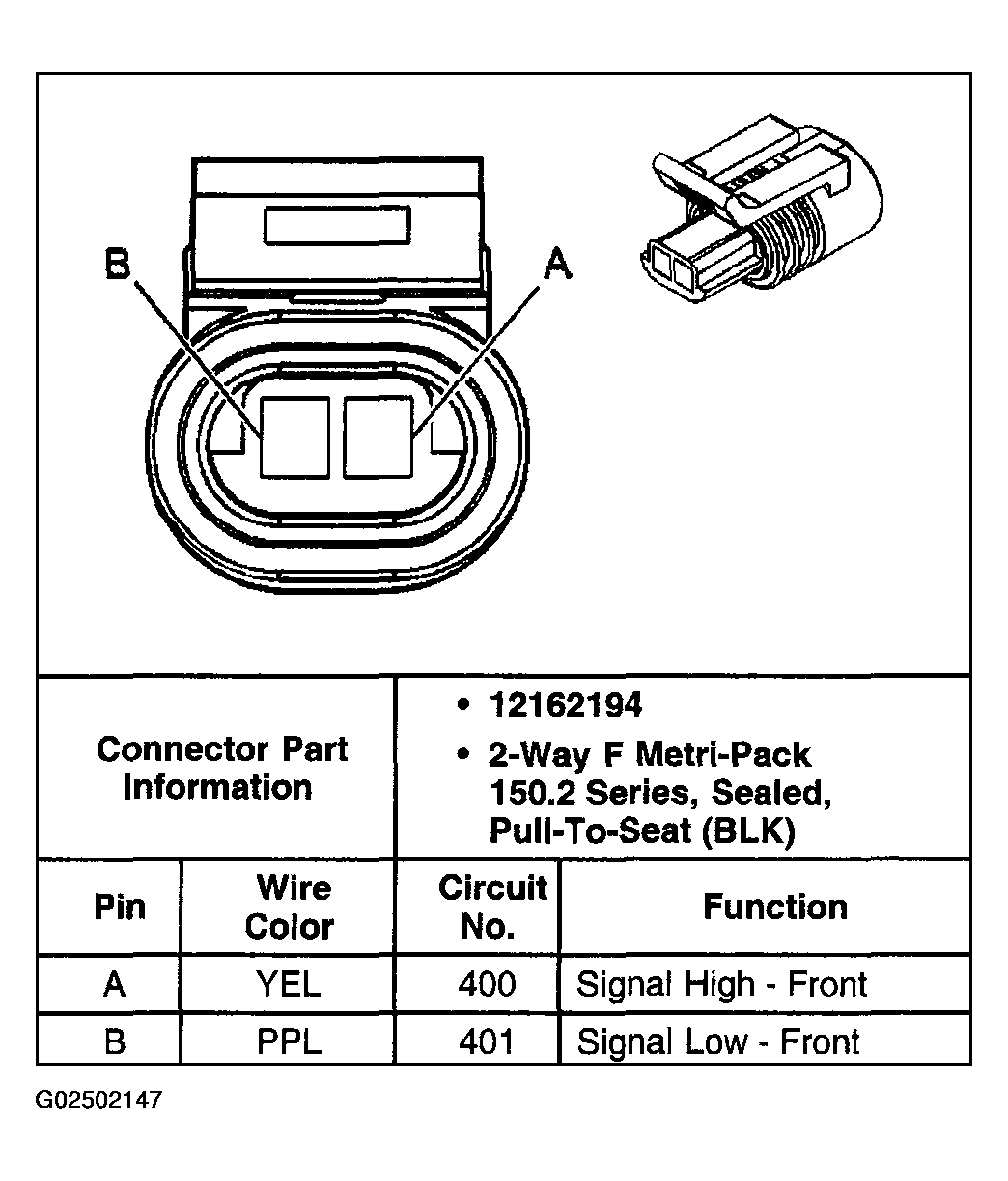

Fig 3: Identifying Propshaft Speed Sensor - Front Electrical Connector
G02502147Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Propshaft Speed Sensor - Rear Electrical Connector
G02502148Courtesy of GENERAL MOTORS CORP.

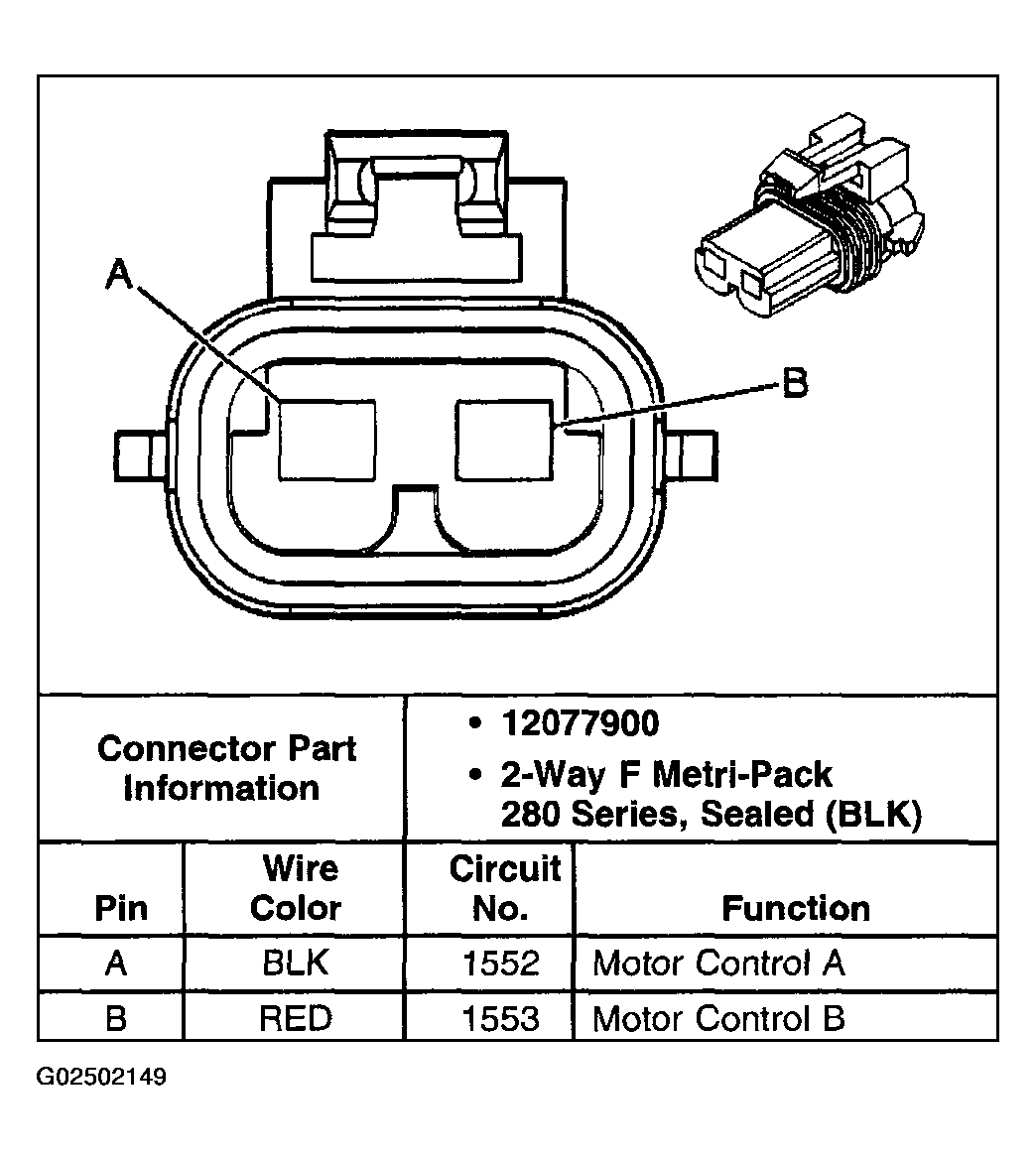

Fig 5: Identifying Transfer Case Encoder Motor Electrical Connector
G02502149Courtesy of GENERAL MOTORS CORP.
