Driveline Disassembled Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

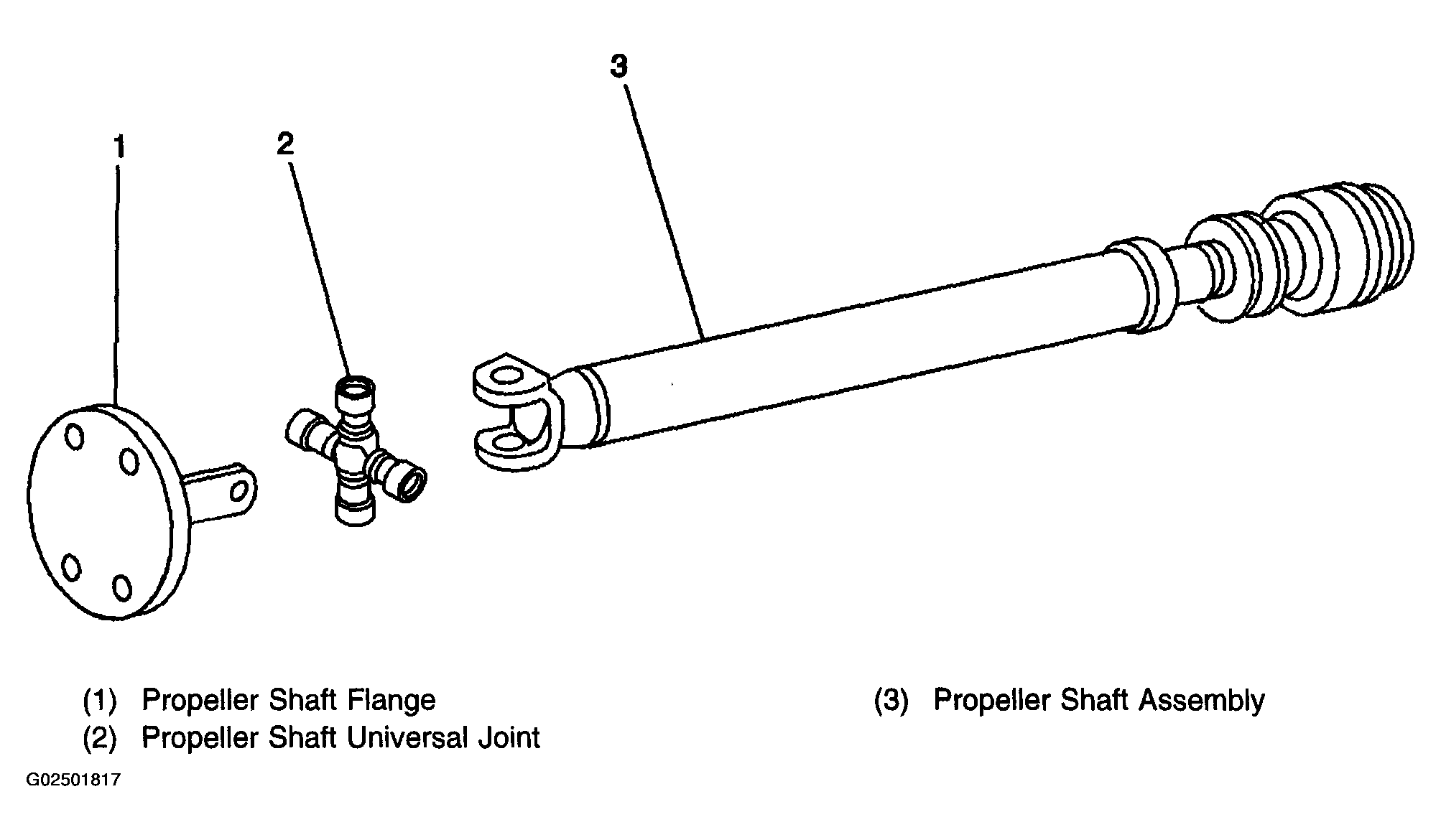

Fig 1: Identifying Front Propeller Shaft Components
G02501817Courtesy of GENERAL MOTORS CORP.

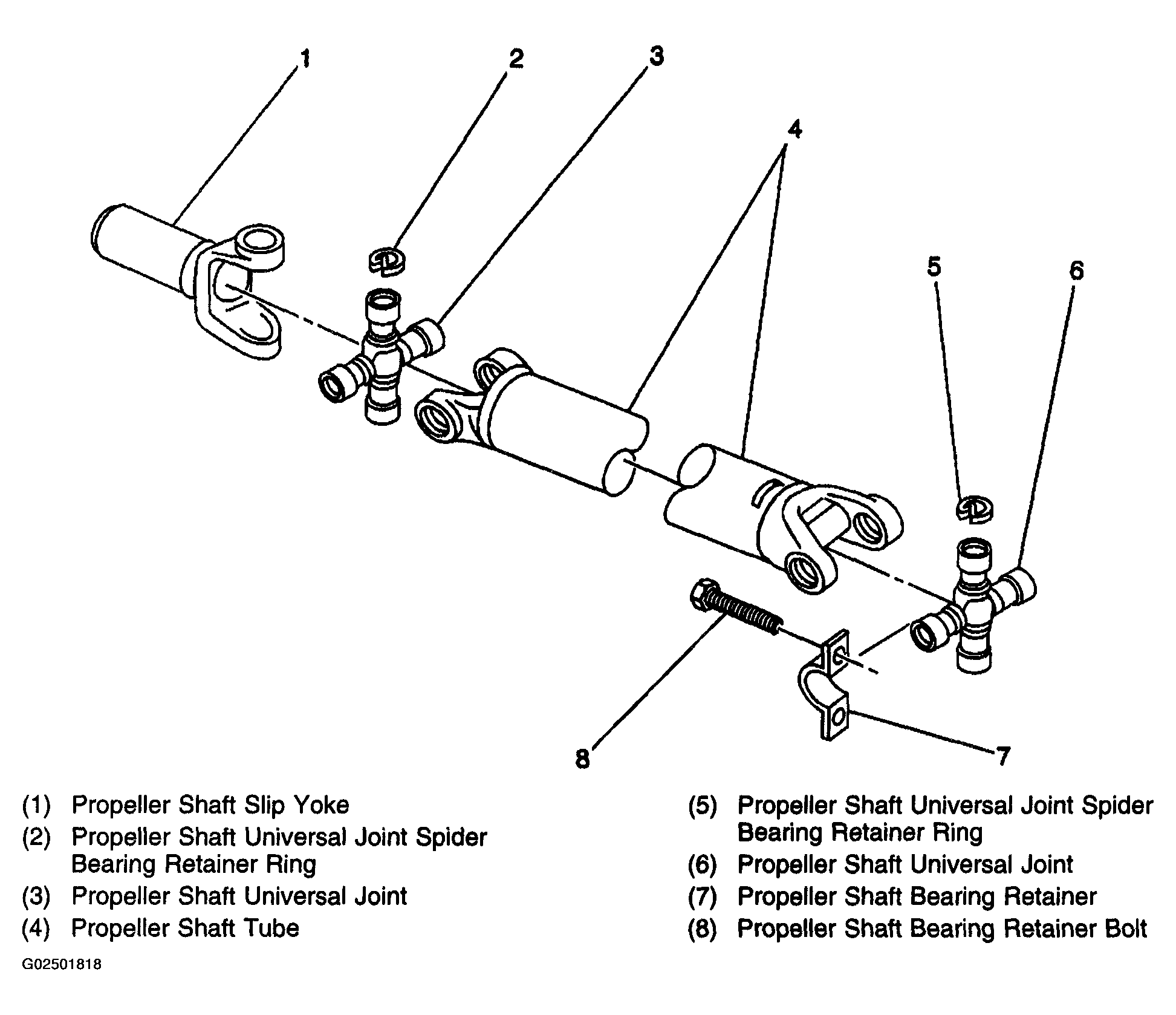

Fig 2: Identifying One-Piece Propeller Shaft Components
G02501818Courtesy of GENERAL MOTORS CORP.
