Diagnostic Trouble Codes Table [Instrument Cluster]

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

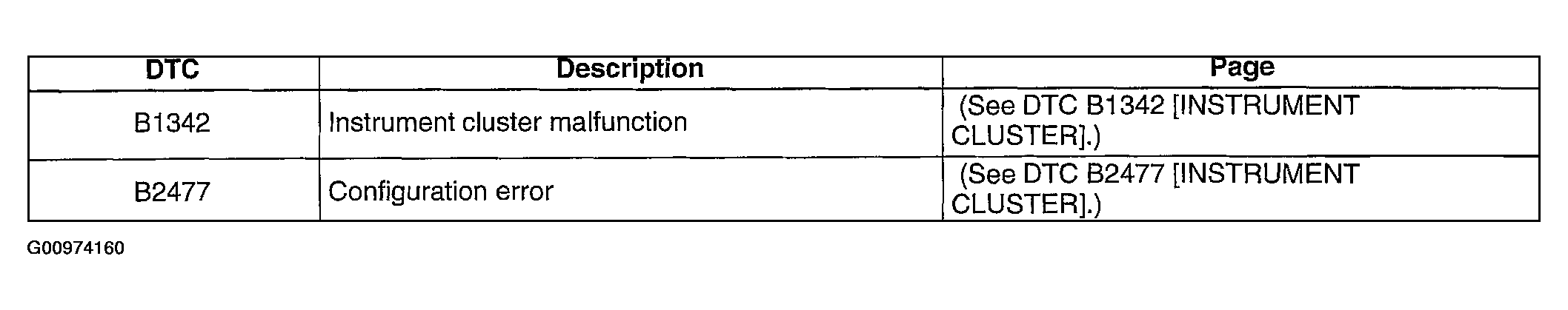

Fig 1: Diagnostic Trouble Code Descriptions - B1342 & B2477
G00974160Courtesy of MAZDA MOTORS CORP.
DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC Description
DTC B1342 [INSTRUMENT CLUSTER]  INSTRUMENT CLUSTER MALFUNCTION
DTC B2477 [INSTRUMENT CLUSTER]  CONFIGURATION ERROR
