B-Pillar Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Pull the B-pillar upper trim outward and detach clips A and locator pin B from the body.
  4. Detach the tab from the body and remove the B-pillar trim.
  5. Install in the reverse order of removal.

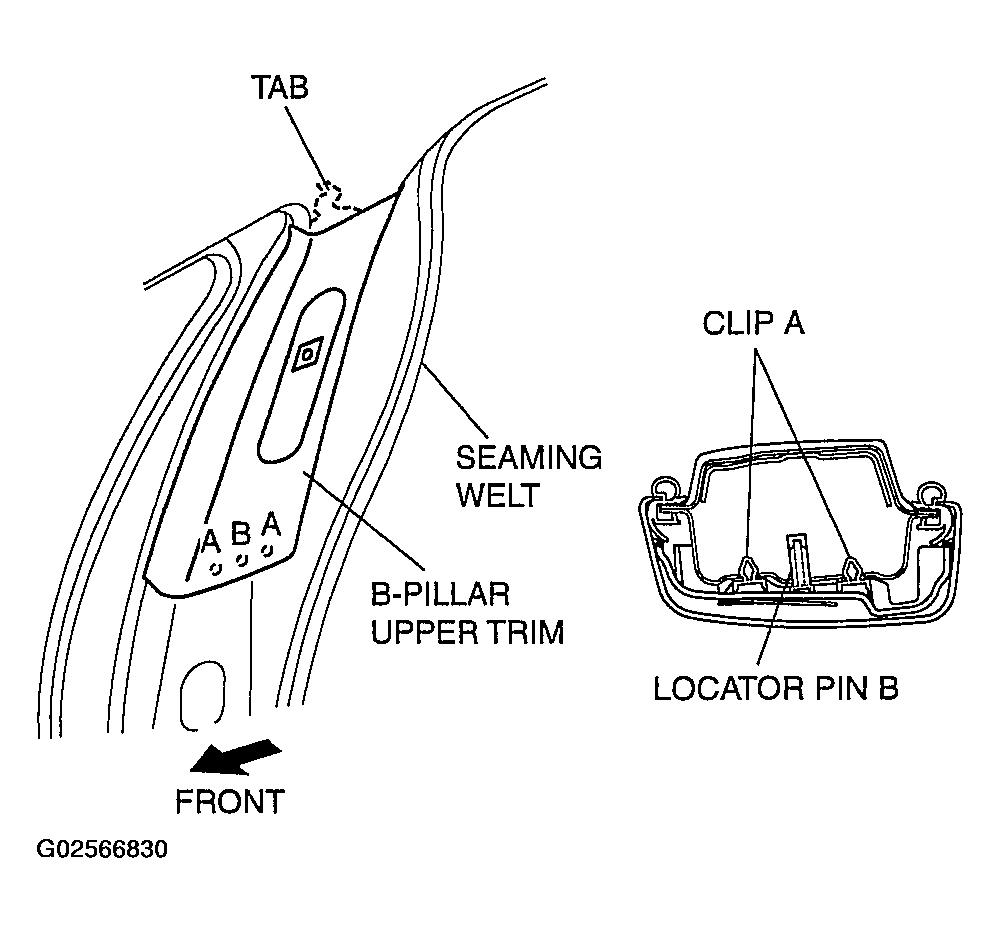

    Fig 1: Removing/Installing B-Pillar Upper Trim
    G02566830Courtesy of MAZDA MOTORS CORP.
