No. 1 Engine Mount and No. 4 Engine Mount Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the No. 4 engine mount bracket on the transaxle case and tighten bolt and nuts.

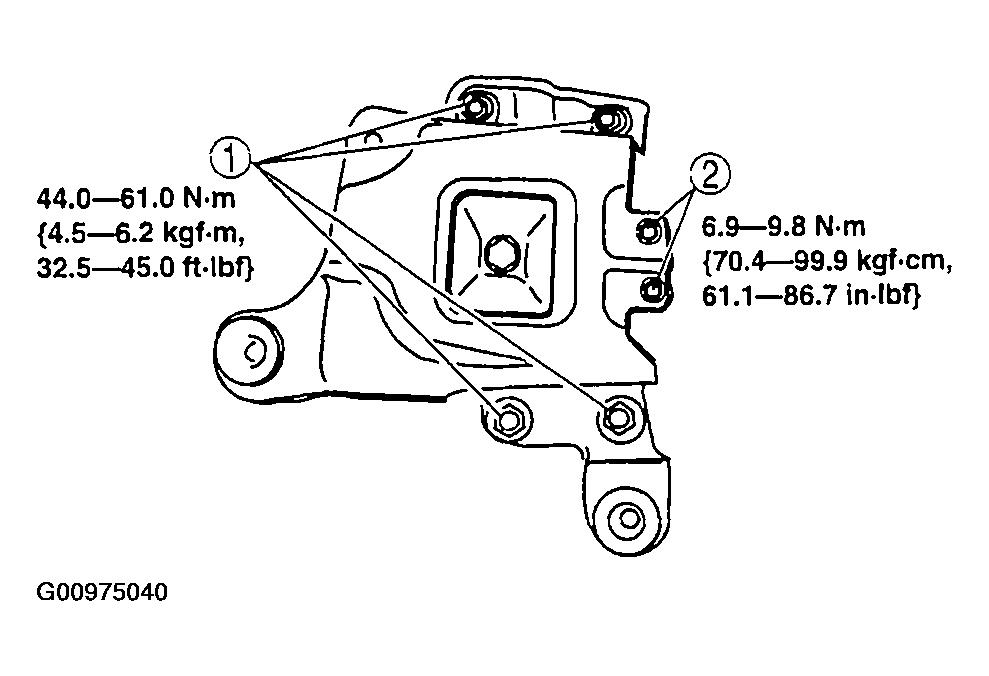

Fig 1: No. 4 Engine Mount Bracket Bolts And Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the No. 1 engine mount rubber to the cross member and temporarily tighten bolts.

Fig 2: Locating No. 1 Engine Mount Rubber And Bolts
Courtesy of MAZDA MOTORS CORP.
Place the No. 4 engine mount rubber with the body stud bolts passing through the holes and tighten the bolt in the figure.

Fig 3: Stud Bolt On No. 4 Engine Mount Rubber With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Place the battery tray bracket on the No. 4 Engine mount rubber with the body stud bolts passing through the holes and tighten bolts and nuts in the order shown in the figure.
Remove the SST (49 E017 5A0).

Fig 4: No. 4 Engine Mount Tightening Sequence With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Fully tighten the bolts.
CAUTION:
- Tighten the bolts in the order shown in the figure to prevent abnormal noise and vibration after assembly.
1. Tightening torque 93.1--116.6 N.m {9.5--11.8 kgf.m, 68.7--85.9 ft.lbf}
Fig 5: No. 1 Engine Mount Rubber Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
