Clutch Master Cylinder Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Push the push rod in until the tabs lock.

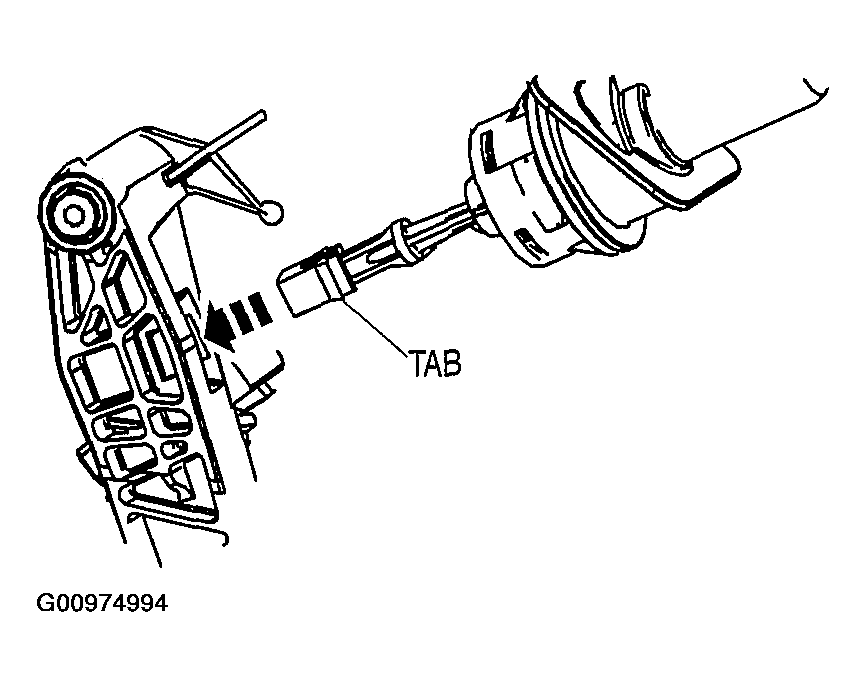

Fig 1: Installing Push Rod
Courtesy of MAZDA MOTORS CORP.
Rotate the clutch master cylinder in the direction shown until it stops.

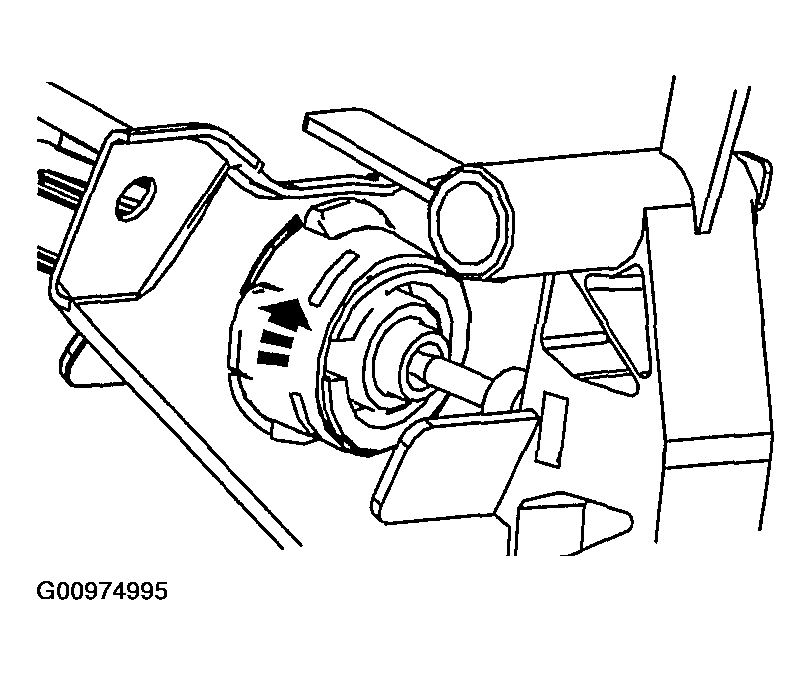

Fig 2: Installing Clutch Master Cylinder
Courtesy of MAZDA MOTORS CORP.
