Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

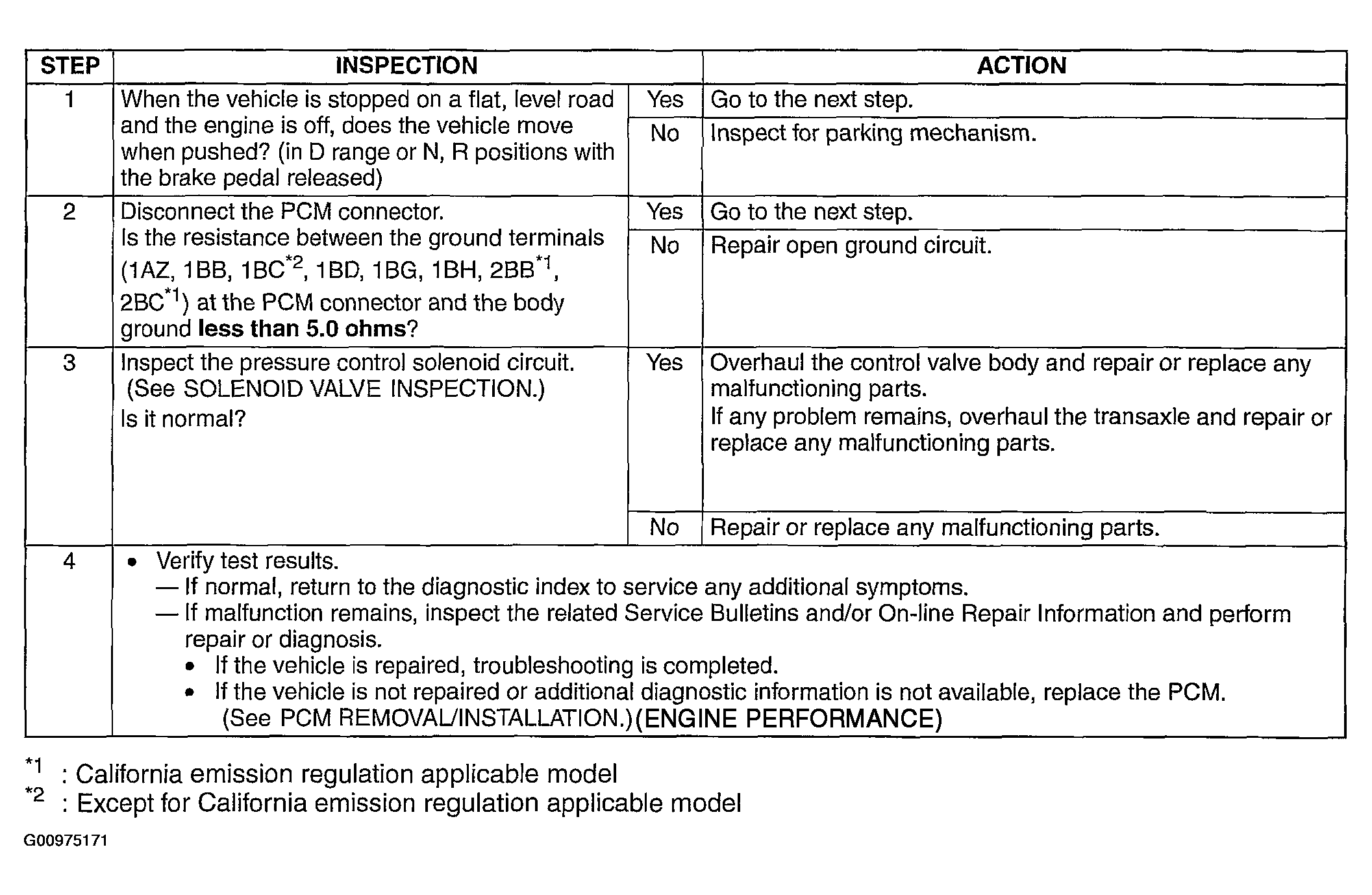

Fig 1: Diagnostic Procedure - Vehicle Does Not Move In D Range, Or In R Position
G00975171Courtesy of MAZDA MOTORS CORP.
