Height Difference Adjustment

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Turn the stop rubber to adjust the height of the hood.

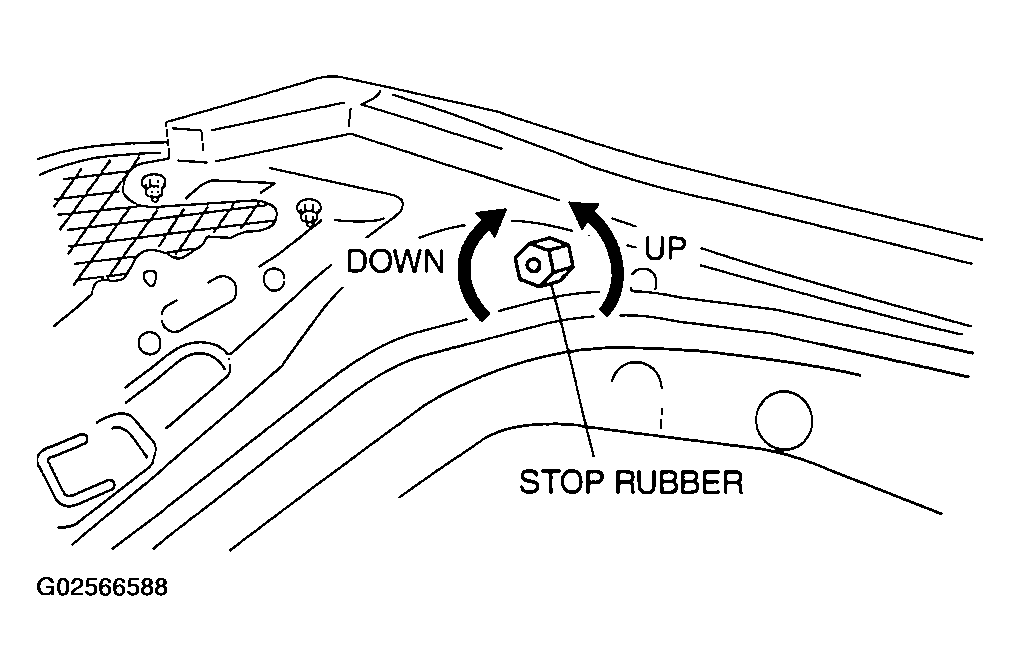

Fig 1: Turning Stop Rubber To Adjust Height Of Hood (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Turning Stop Rubber To Adjust Height Of Hood (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Verify that the height difference between the hood and the body is within the specification.

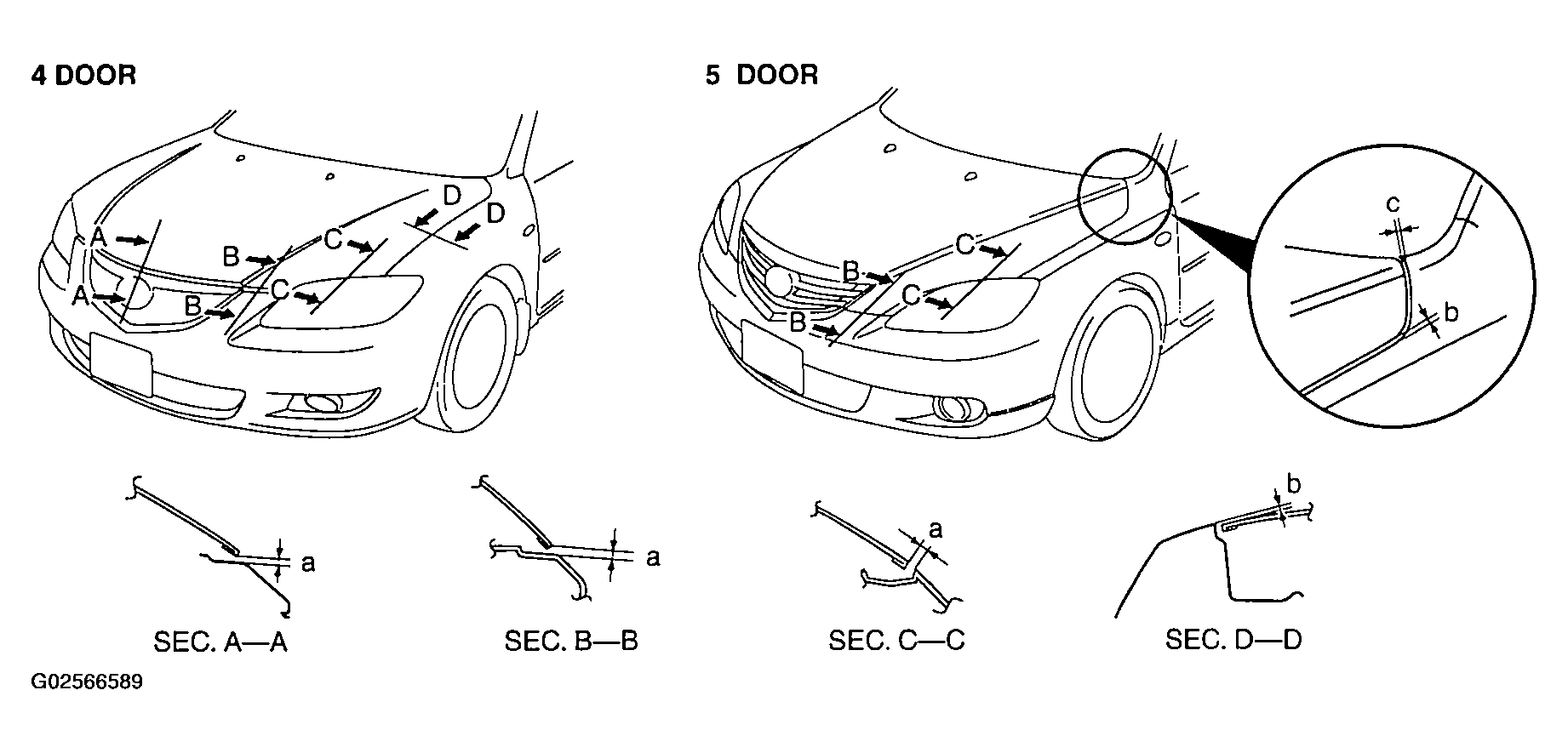

Fig 3: Locating Hood & Body Height Difference
Courtesy of MAZDA MOTORS CORP.

Standard clearance

a: 3.0-6.0 mm {0.12-0.23 in}

b: -1.5-0.5 mm {-0.059-0.019 in}

c: -1.0-1.0 mm {-0.39-0.39 in}
