Section 74 (Electrical Component Locator): Motors
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
MOTORS LOCATION
| Component | Location |
|---|---|
| Air Temperature Actuator | Behind right side of dash, left side of main air duct. |

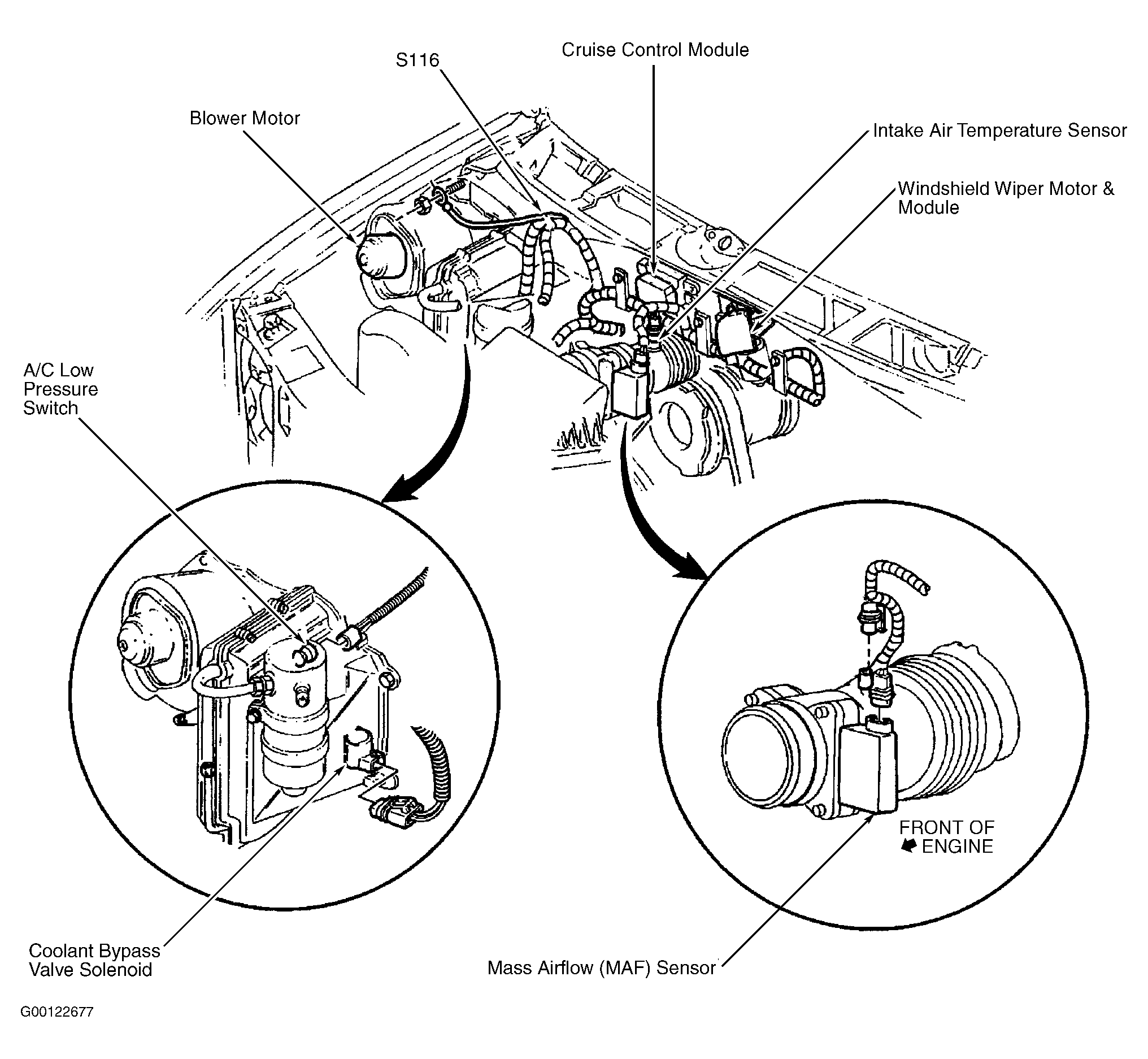

| Blower Motor | Behind coolant recovery reservoir, on right front fender. See Figure . |
| Blower Motor (Auxiliary A/C) | Left rear of vehicle, near "D" pillar. |

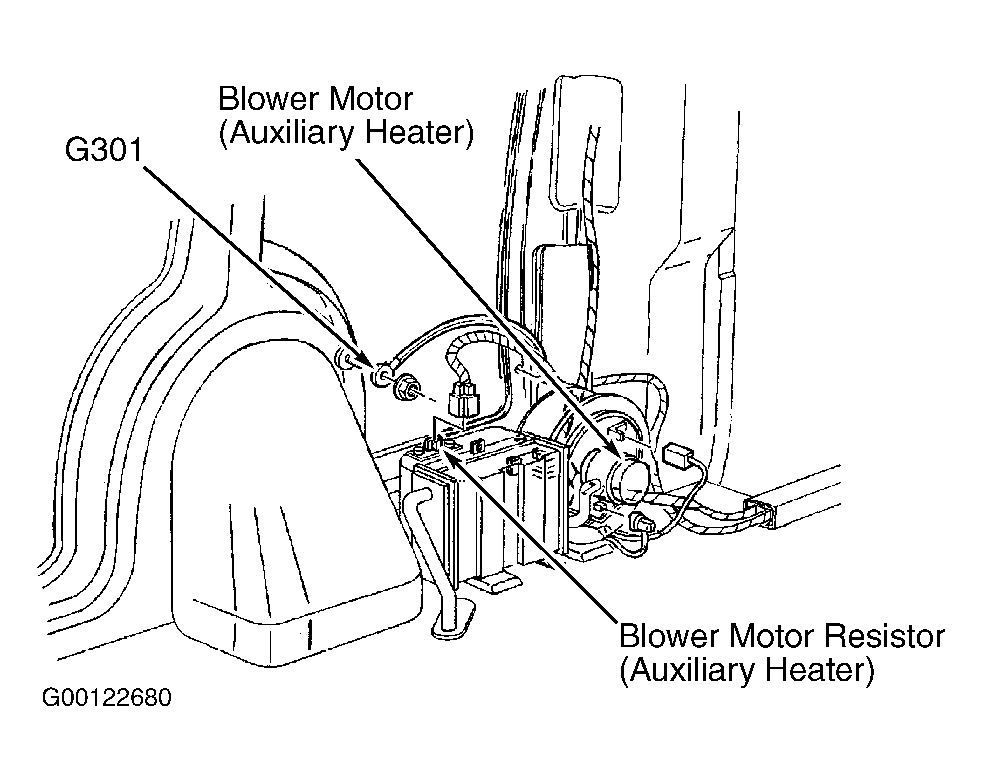

| Blower Motor (Auxiliary Heater) | Left side of vehicle, behind "B" pillar. See Figure . |
| Fuel Pump & Sender Assembly | In fuel tank. |

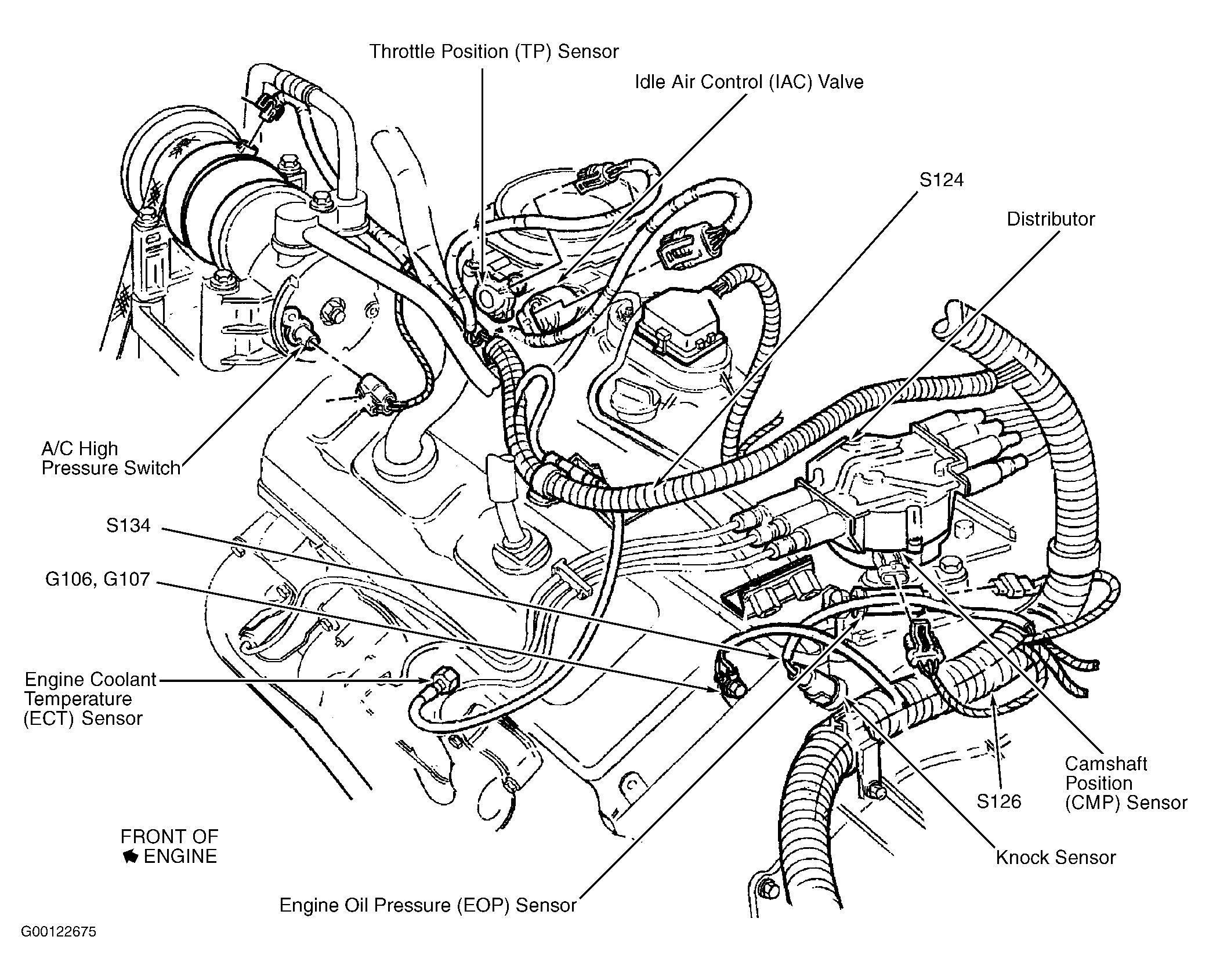

| Idle Air Control (IAC) Valve | On left rear of throttle body. See Figure . |

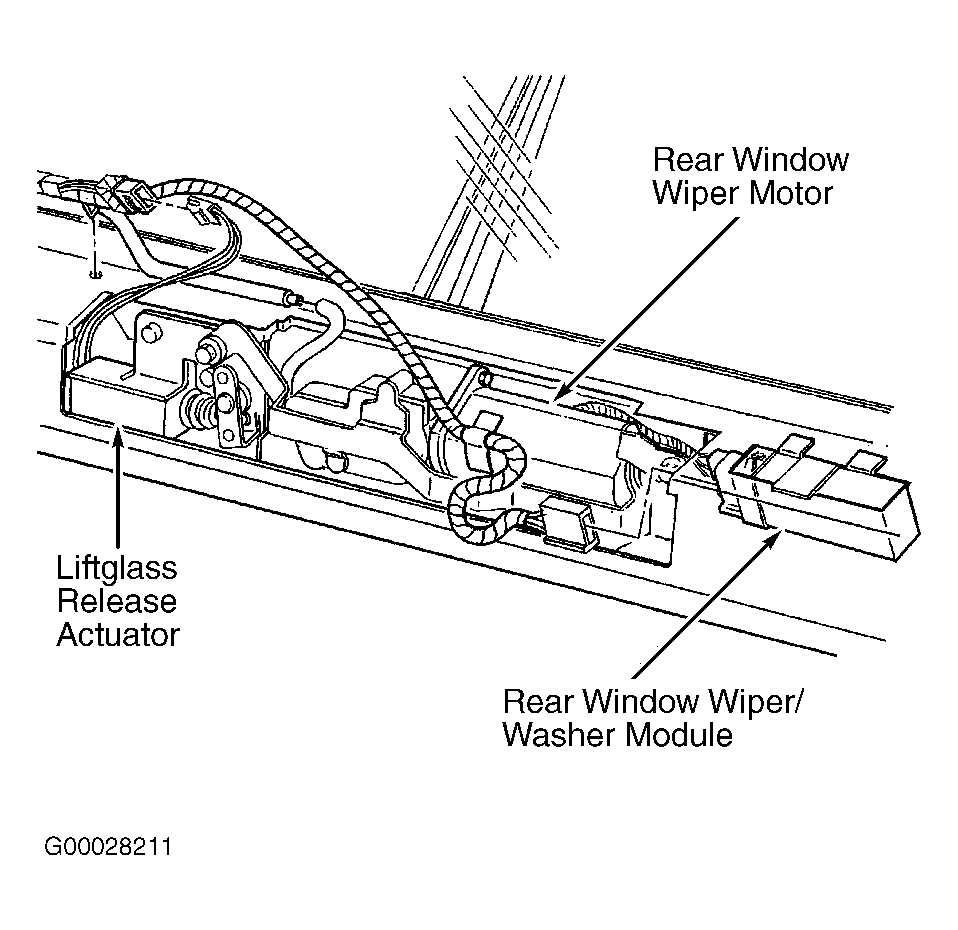

| Liftglass Release Actuator | In center of liftgate. See Figure . |

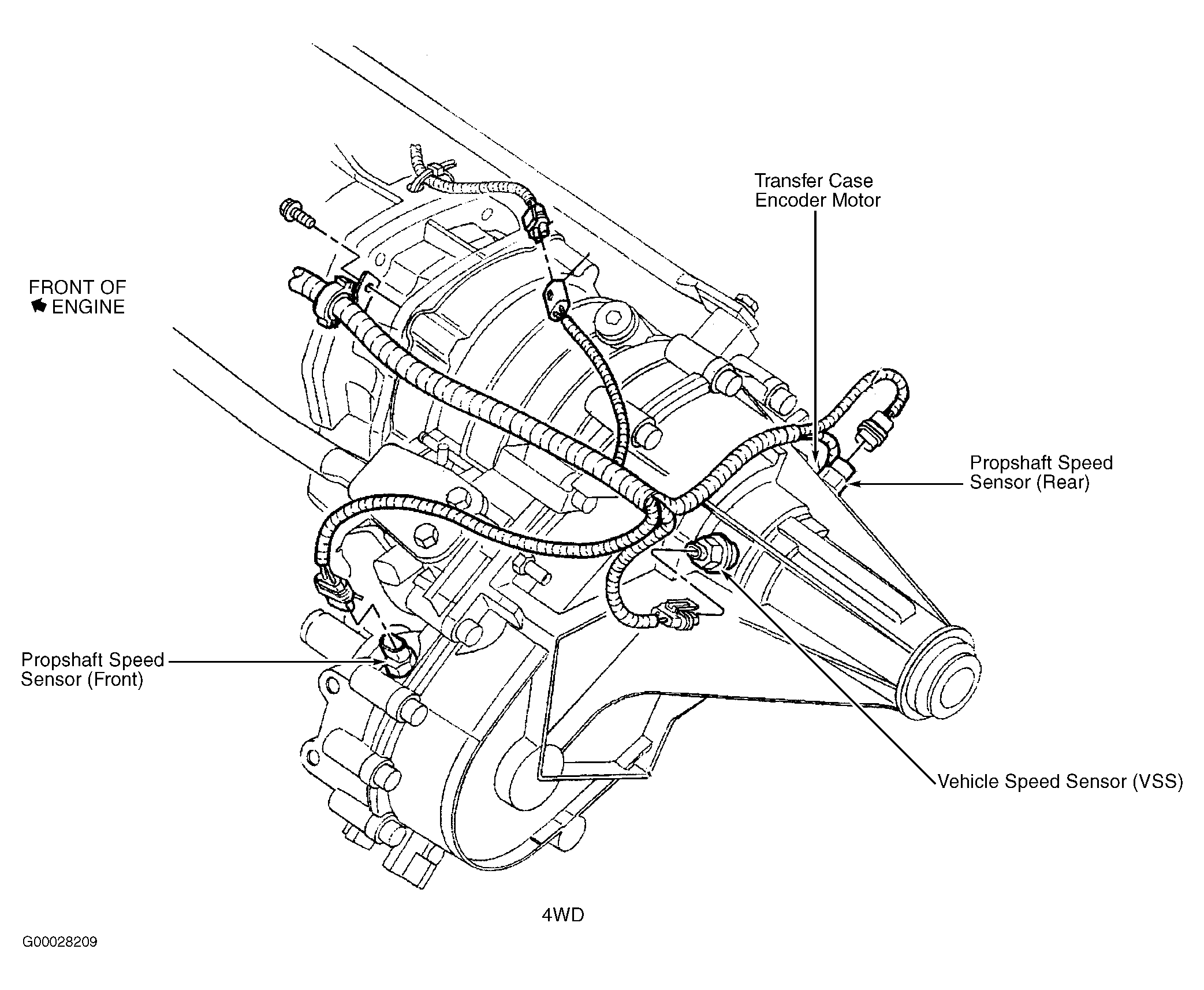

| Transfer Case Encoder Motor | Inside transfer case. See Figure . |
| Rear Window Washer Fluid Pump | In windshield washer reservoir. |
| Rear Window Wiper Motor | In center of liftgate. See Figure . |
| Rear Window Wiper/Washer Module | In left side of liftgate. See Figure . |
| Windshield Washer Fluid Pump | In windshield washer reservoir. |
| Windshield Wiper Motor & Module | On center of firewall, next to cruise control module. See Figure . |
