Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spare tire from the tire carrier.

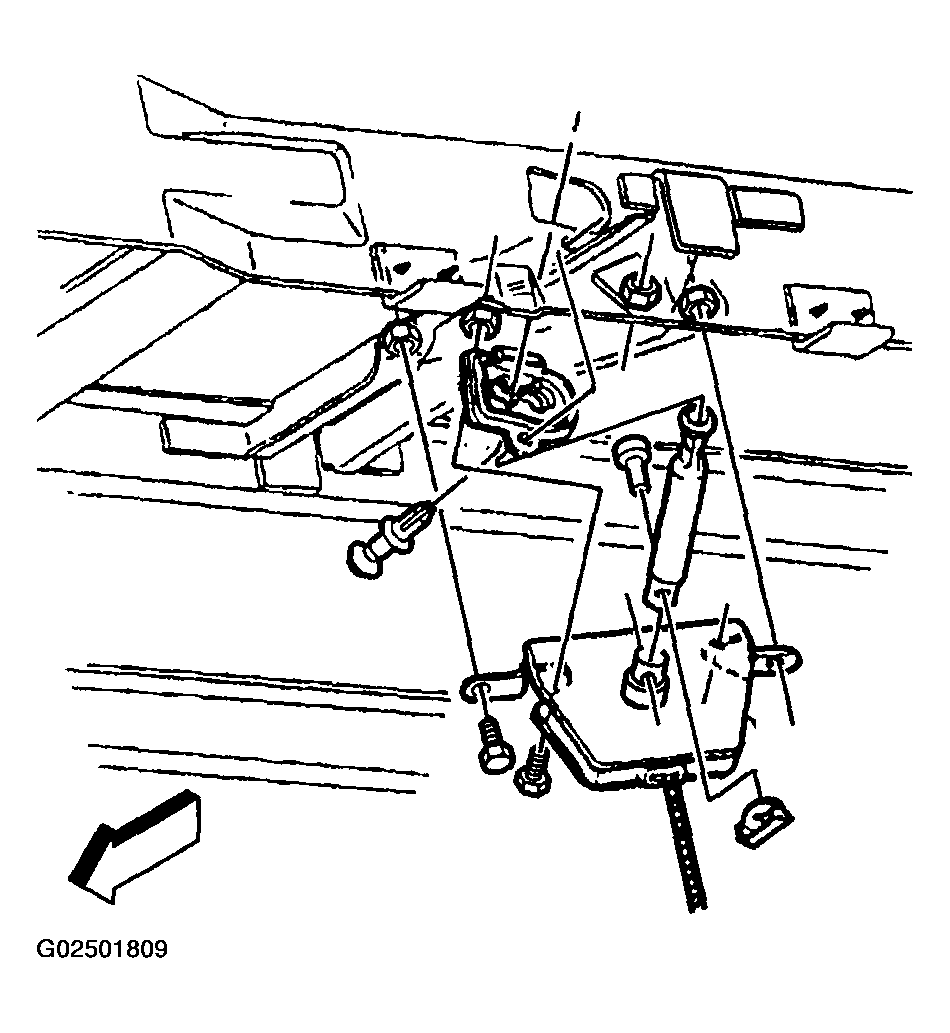

    2. Fig 1: Spare Tire Carrier
    G02501809Courtesy of GENERAL MOTORS CORP.
  2. Raise and suitably support the vehicle.
  3. Remove the pin and retainer from the shaft.
  4. Remove the shaft from the hoist.
  5. Remove the hoist mounting bolts.
  6. Remove the hoist from the rear crossmember.
