Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the tire and the wheel.
  3. Remove the brake drum.
  4. Remove the wheel stud from the axle flange using J 43631  .

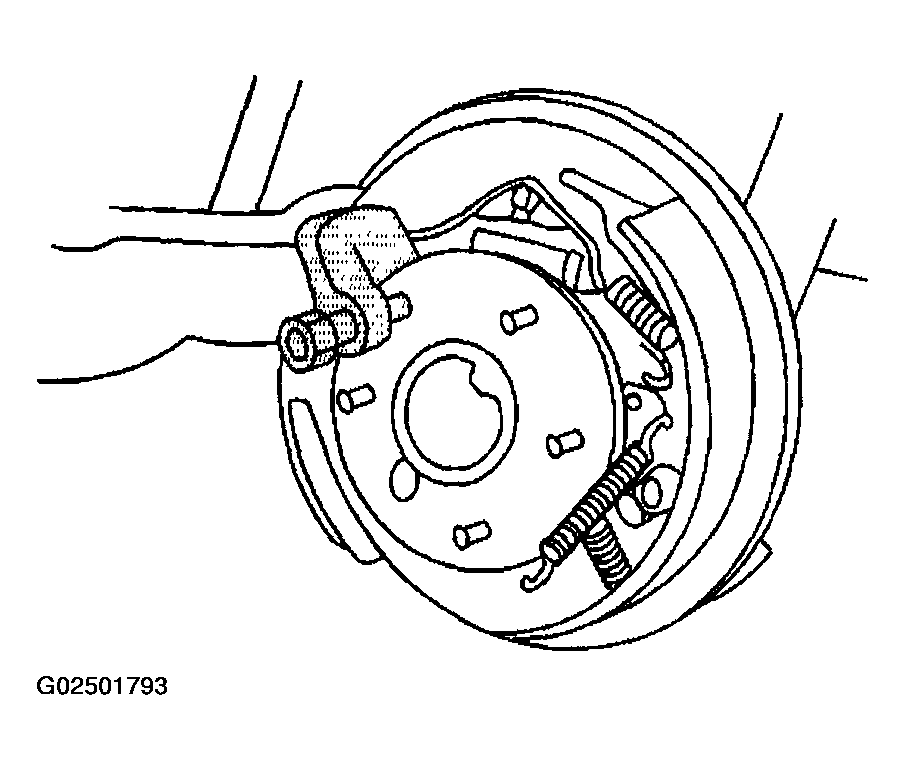

    Fig 1: Removing Wheel Stud
    G02501793Courtesy of GENERAL MOTORS CORP.
