Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 41602  to the hoist and raise and support the vehicle.
  2. Support the rear axle.
  3. Remove the lower shock absorber mounting bolt and nut.
  4. Remove the muffler.
  5. Remove the fuel tank. Refer to FUEL TANK .
  6. Remove the leaf spring to hanger mounting bolt and nut (left side only).

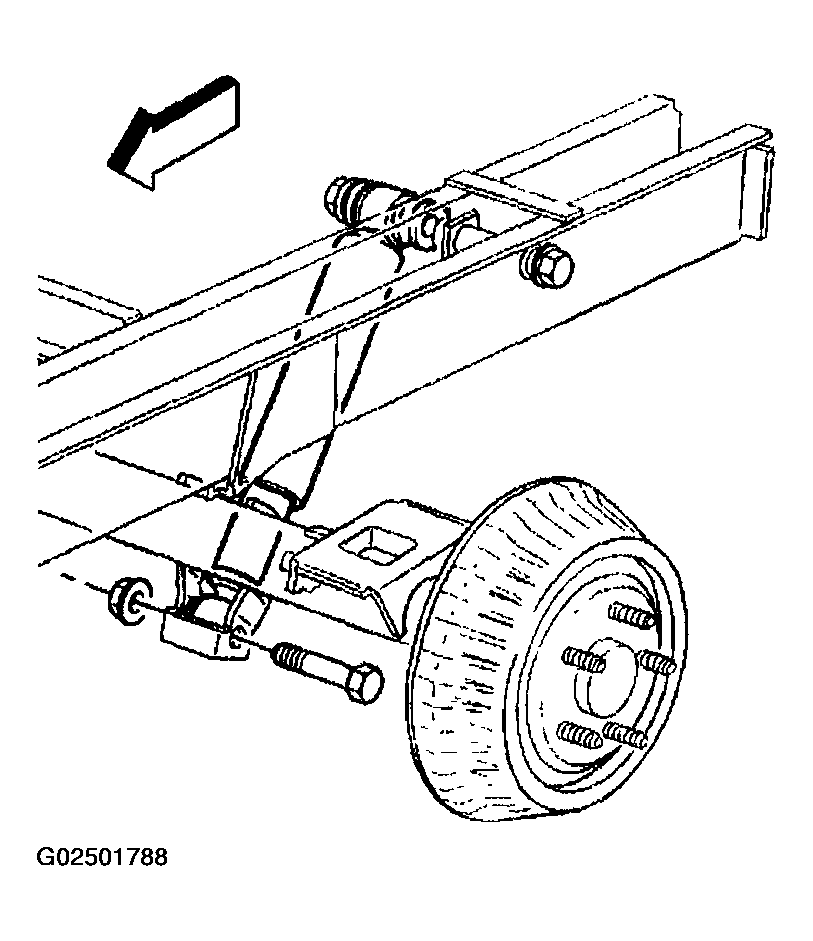

    Fig 1: Leaf Spring To Hanger Mounting Bolt & Nut
    G02501788Courtesy of GENERAL MOTORS CORP.
  7. Lower the rear axle.
  8. Remove the hanger mounting nuts.
  9. Remove the hanger mounting bolts.
  10. Remove the hanger from the frame.

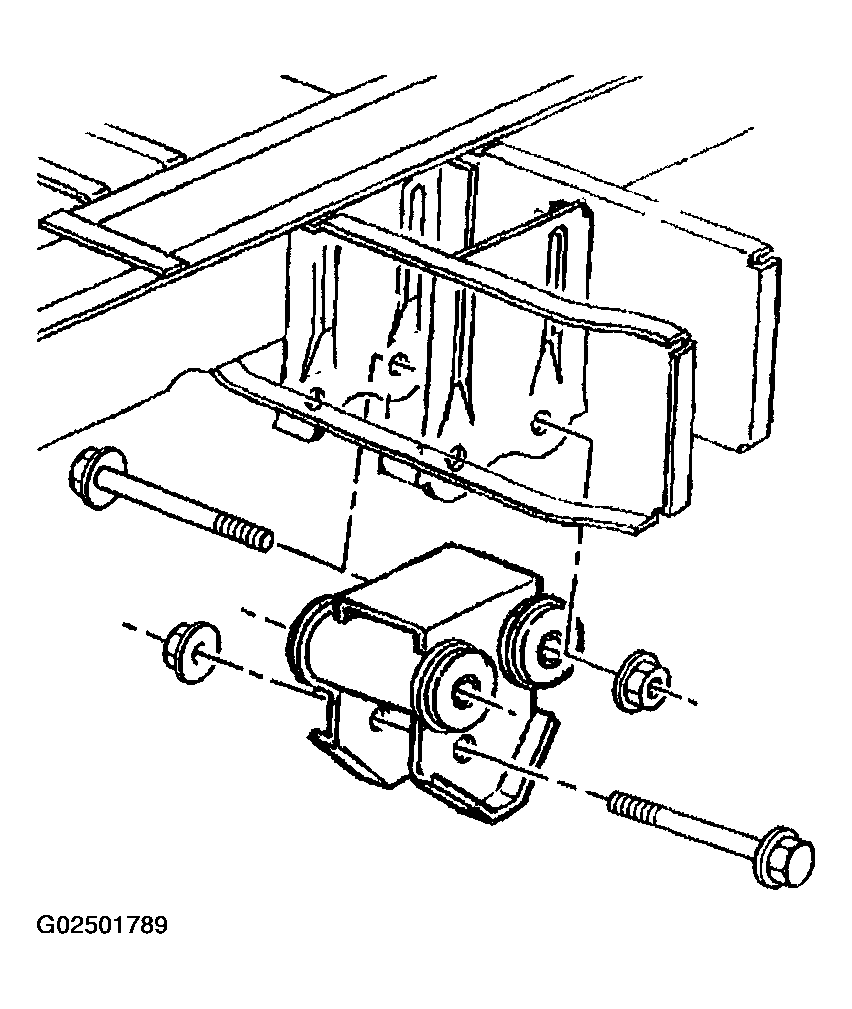

    Fig 2: Hanger
    G02501789Courtesy of GENERAL MOTORS CORP.
