Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rotor. Refer to Wheel Hub, Bearing & Seal Replacement (AWD)  or Wheel Hub, Bearing & Seal Replacement (RWD)  .
  2. Remove the wheel stud.
    • Press the stud out using an arbor press.
    • Do not damage the wheel mounting surface on the wheel hub flange.

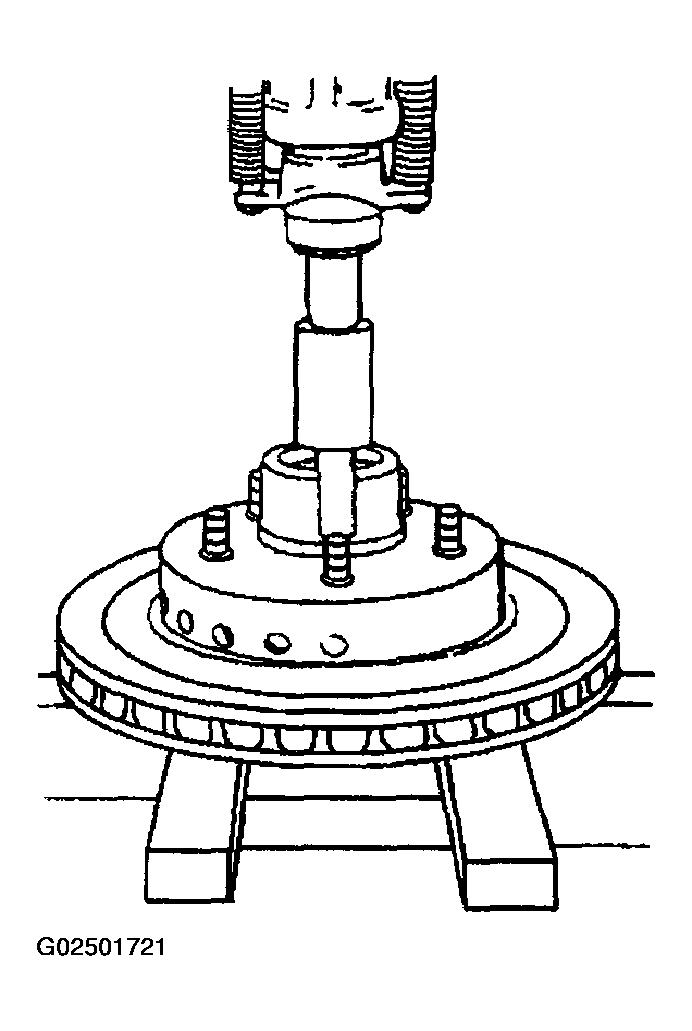

    Fig 1: Removing Wheel Stud
    G02501721Courtesy of GENERAL MOTORS CORP.
