Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands.
  2. Remove the tire and the wheel.
  3. Remove the rotor. Refer to FRONT BRAKE ROTOR .

    Important:  Do not hammer on a wheel stud.

  4. Remove the wheel stud using J 43631  .

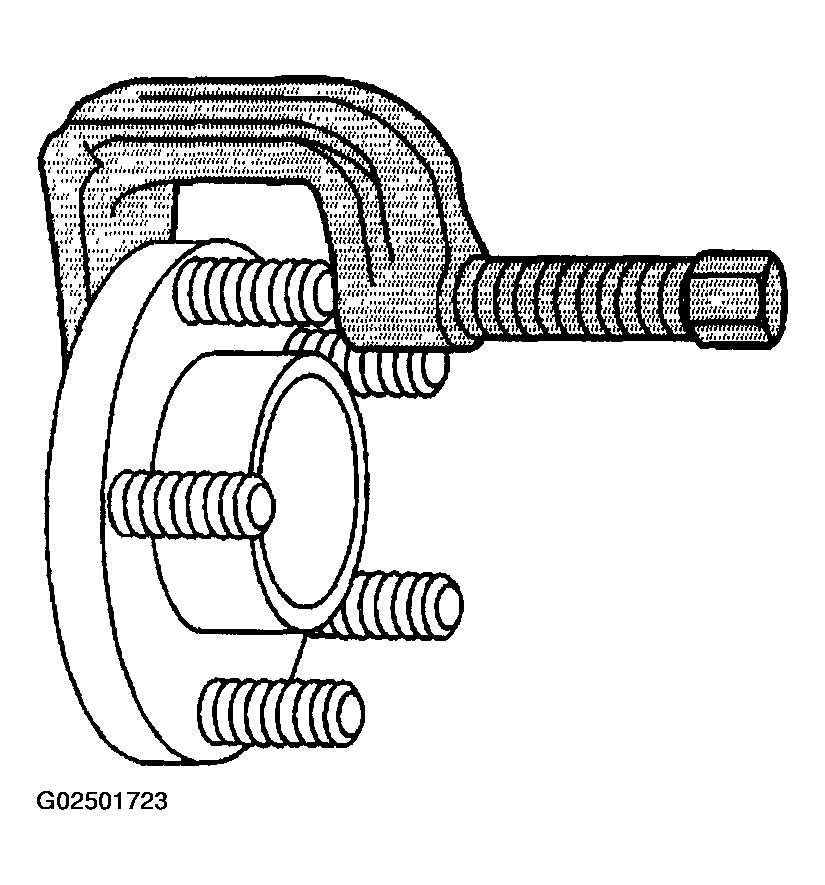

    Fig 1: Removing Wheel Stud
    G02501723Courtesy of GENERAL MOTORS CORP.
