Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Support the lower control arm with safety stands.
  3. Remove the tire and wheel.
  4. Remove the brake hose bracket retaining nut and bolt.

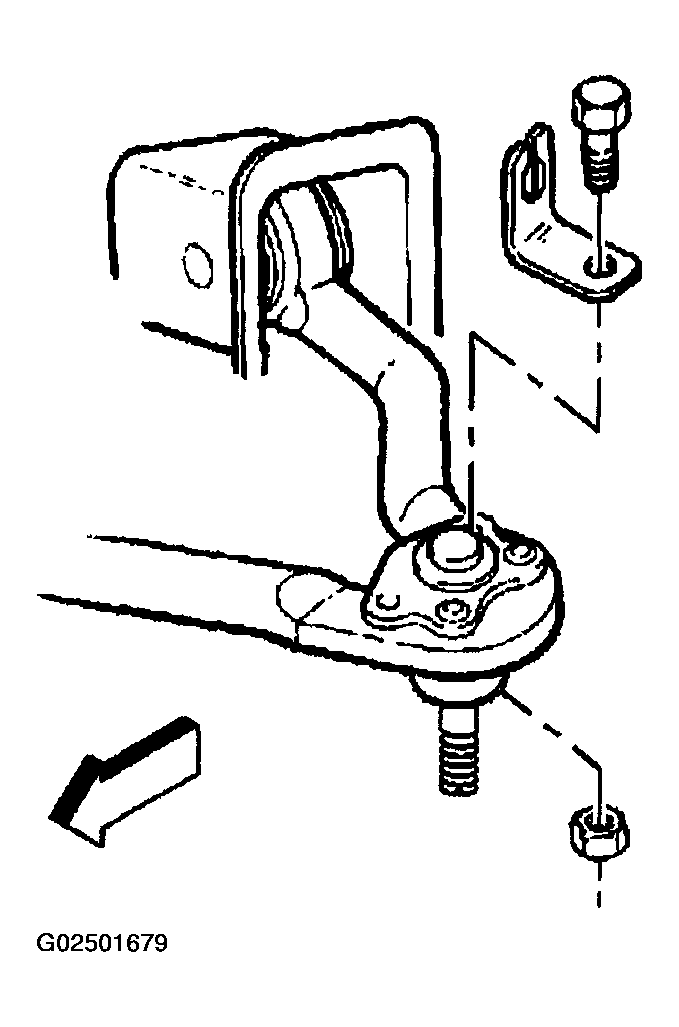

    Fig 1: Brake Hose Bracket
    G02501679Courtesy of GENERAL MOTORS CORP.
  5. Remove the speed sensor bracket retaining nut and bolt.

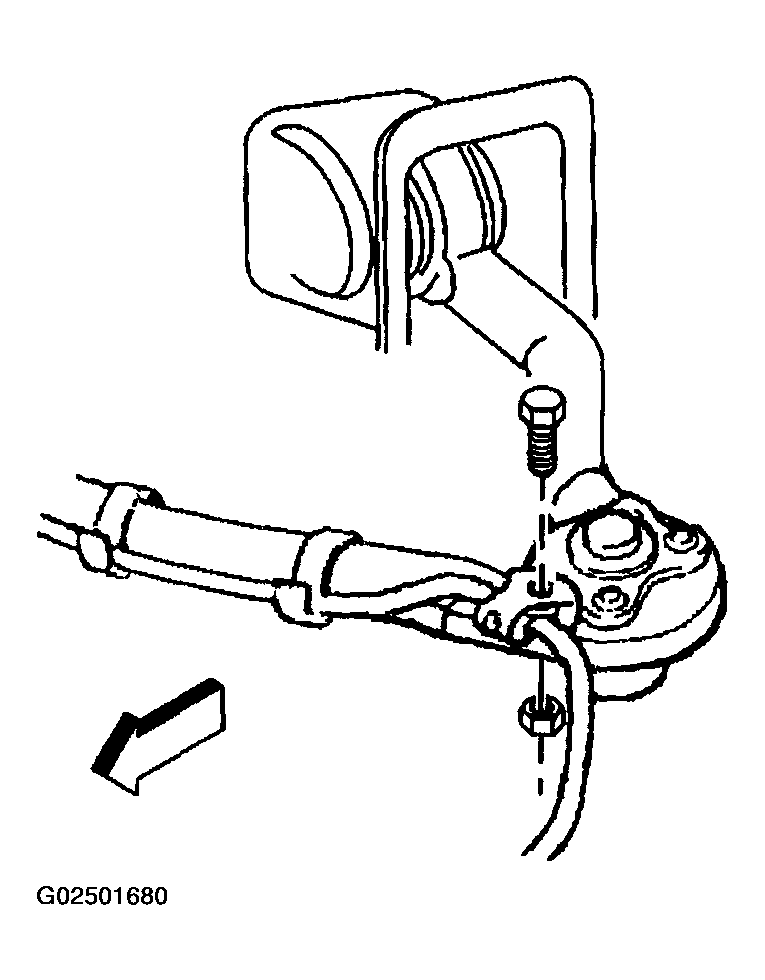

    Fig 2: Speed Sensor Bracket
    G02501680Courtesy of GENERAL MOTORS CORP.
  6. Remove upper ball joint cotter pin and retaining nut.

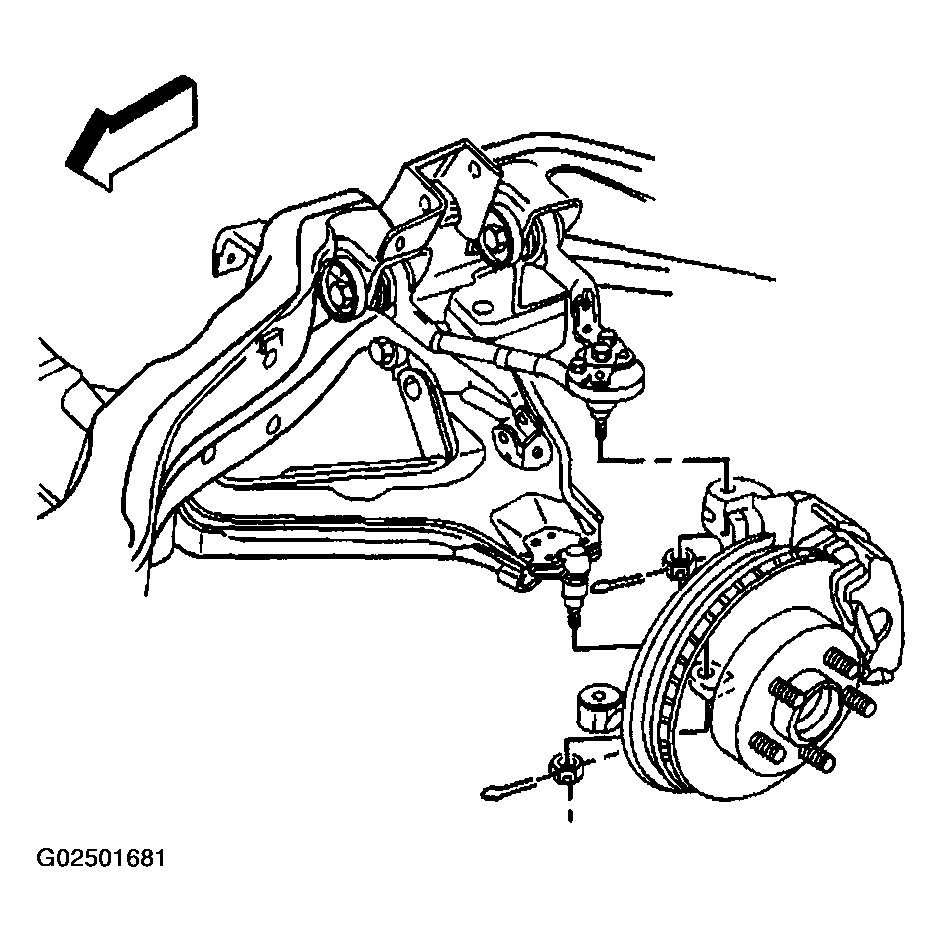

    Fig 3: Upper Ball Joint Cotter Pin & Retaining Nut
    G02501681Courtesy of GENERAL MOTORS CORP.
  7. Install the J 36607  to the upper ball joint and steering knuckle.
  8. Disconnect the upper ball joint from the steering knuckle using J 36607.

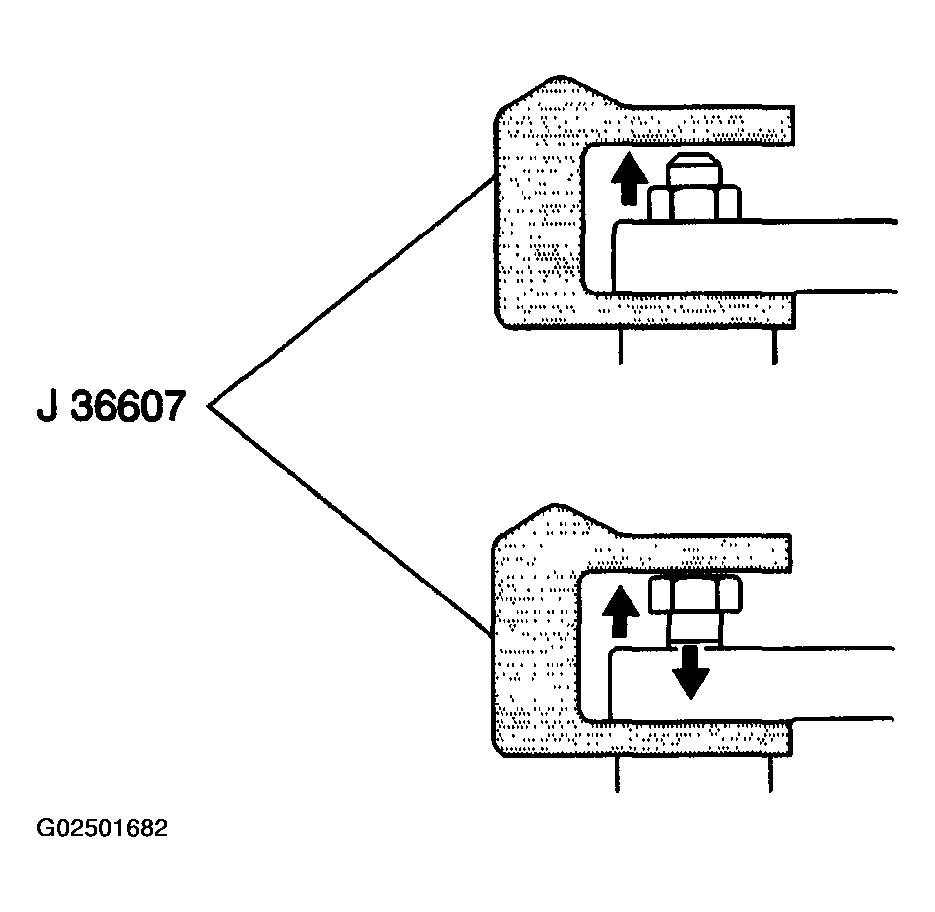

    Fig 4: Disconnecting Upper Ball Joint From Steering Knuckle
    G02501682Courtesy of GENERAL MOTORS CORP.
  9. Remove the upper control arm nuts, the cams, and the mounting bolts.

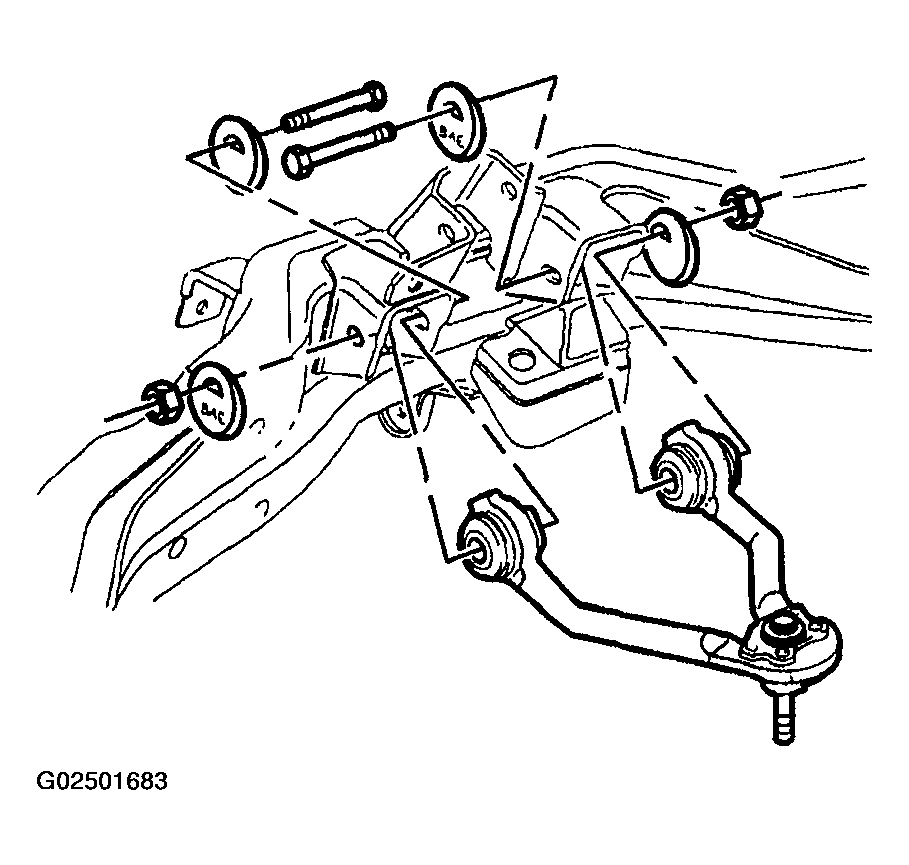

    10. Fig 5: Upper Control Arm Nuts, Cams & Mounting Bolts
    G02501683Courtesy of GENERAL MOTORS CORP.
  10. Remove the upper control arm.
