Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the tire and wheel.
  3. Remove the stabilizer shaft link nut.
  4. Remove the retainer and insulator from the stabilizer shaft link bolt.

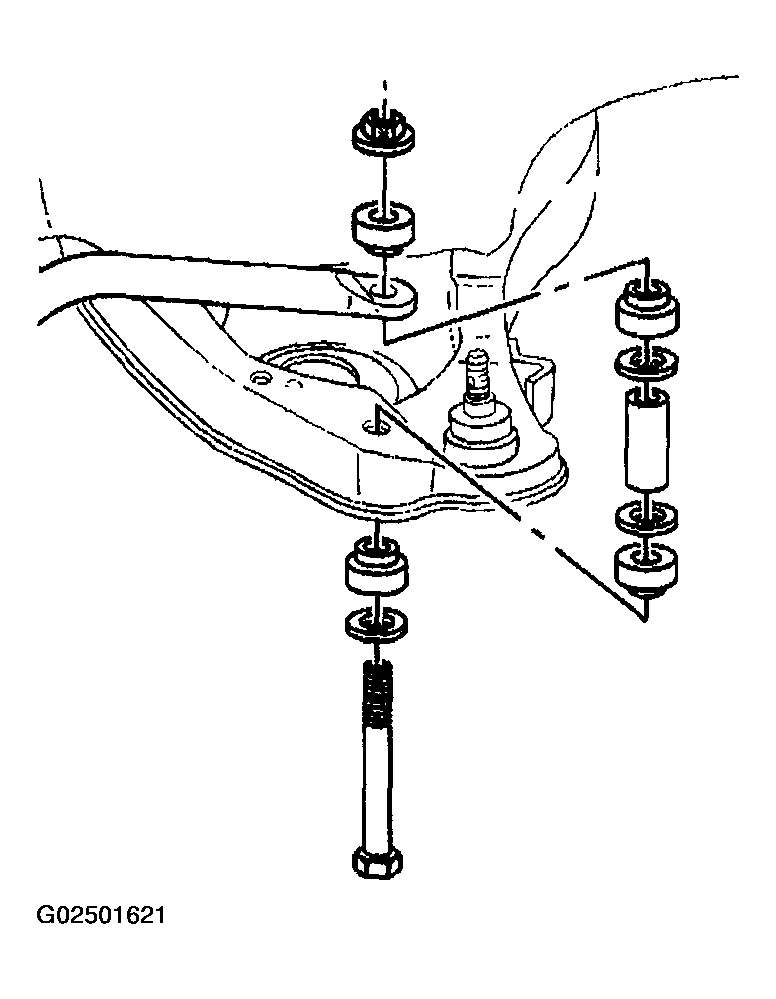

    5. Fig 1: Stabilizer Shaft Link Bolt
    G02501621Courtesy of GENERAL MOTORS CORP.
  5. Remove the stabilizer shaft link bolt, retainers, insulators, and stabilizer shaft link by pulling the bolt down through the stabilizer shaft and lower control arm.
