Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the tire and wheel.
  3. Remove the stabilizer shaft link nut.
  4. Remove the stabilizer shaft link bolt.
    1. 4.1. Pull the stabilizer shaft link bolt up through the retainers, the insulators, and the link spacer.
    2. 4.2. These components will come free, along with the end of the stabilizer shaft.

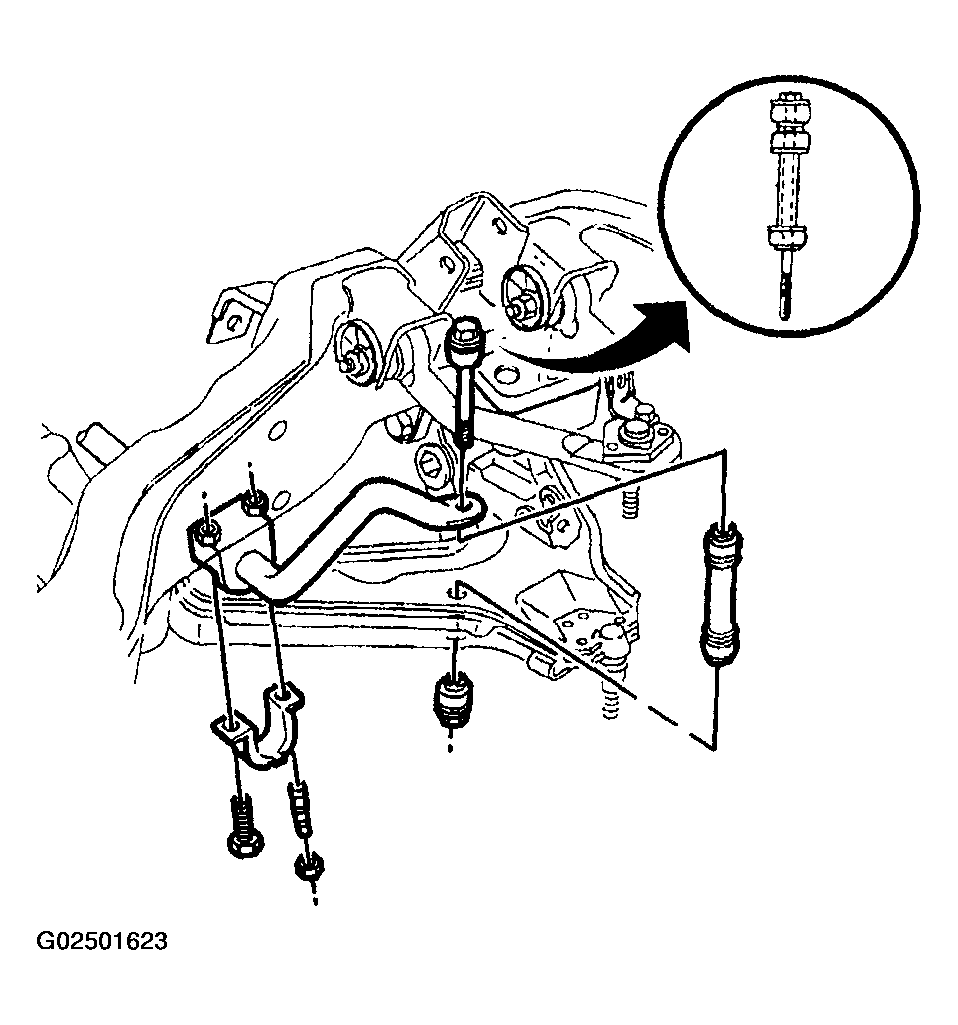

    Fig 1: Stabilizer Shaft Link Bolt
    G02501623Courtesy of GENERAL MOTORS CORP.
