Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the stabilizer shaft insulator bracket bolts.

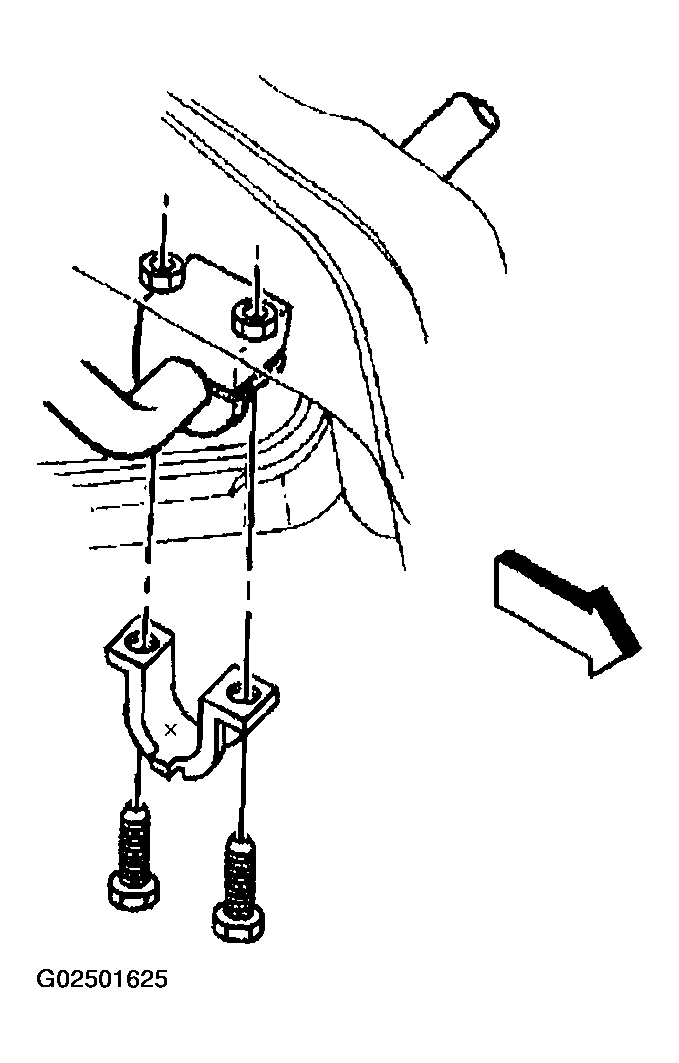

    3. Fig 1: Stabilizer Shaft Insulator Bracket
    G02501625Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft insulator bracket.
  4. Using a pry bar, lower the stabilizer shaft.
  5. Remove the stabilizer shaft insulator.
