Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Support the lower control arm.
  3. Remove the tire and wheel.
  4. Remove the wheelhouse splash shield.
  5. Remove the shock absorber lower mounting nut, the washer, and the bolt.
  6. Remove the shock absorber upper mounting nut, the washer, and the bolt.
  7. Remove the shock absorber.

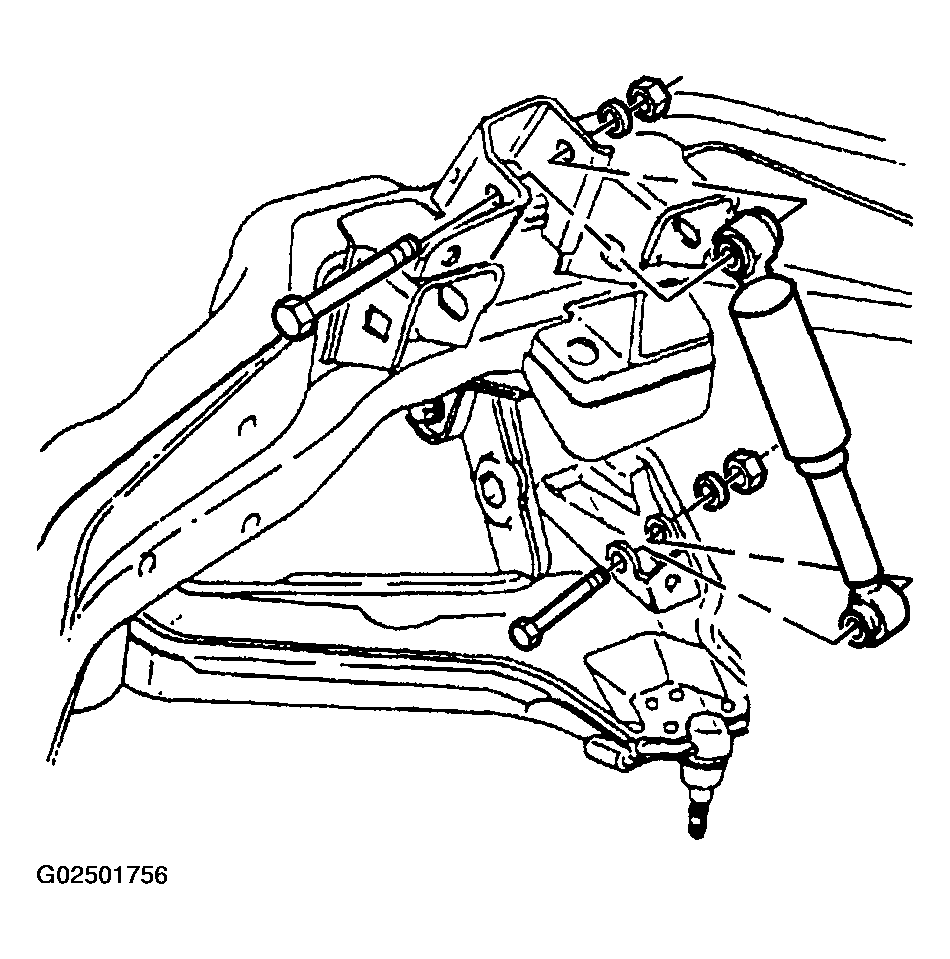

    Fig 1: Removing Shock Absorber
    G02501756Courtesy of GENERAL MOTORS CORP.
