Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Floor jack must remain under the lower control arm during removal and Installation to retain the lower control arm in position. Failure to do so could result in personal injury.
  1. Raise the vehicle.
  2. Support the lower control arm with a safety stand.

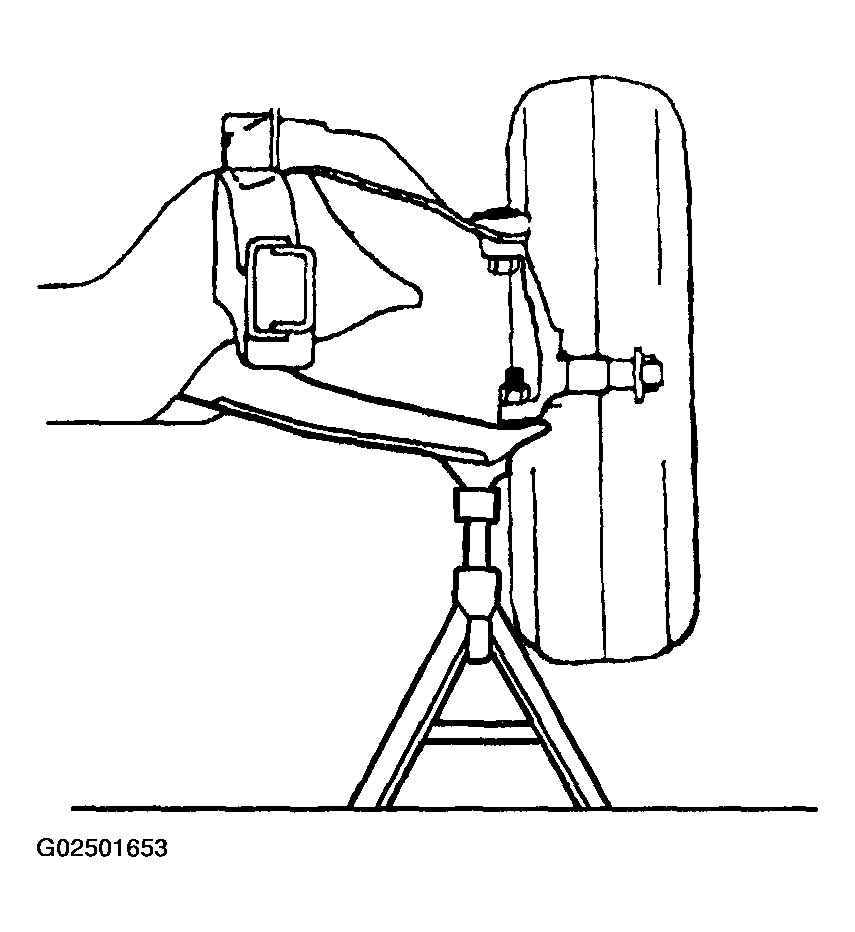

    3. Fig 1: Supporting Lower Control Arm With A Safety Stand
    G02501653Courtesy of GENERAL MOTORS CORP.
  3. Remove the tire and wheel.
  4. Remove the lower ball joint cotter pin and the retaining nut.
  5. Break the lower ball joint loose from the steering knuckle using J 23742  .

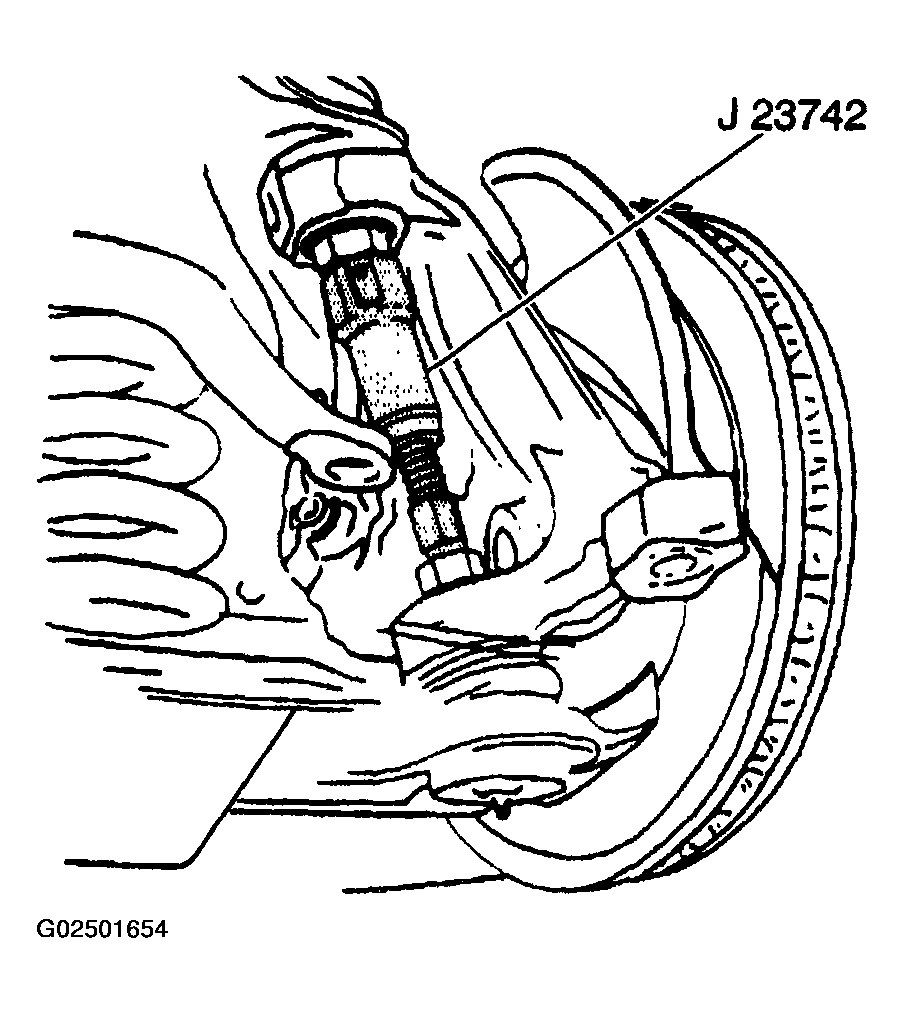

    6. Fig 2: Breaking Lower Ball Joint Loose From Steering Knuckle
    G02501654Courtesy of GENERAL MOTORS CORP.
  6. Remove J 23742  .
  7. Pull the steering knuckle free from the lower ball joint.
  8. Support the steering knuckle in order to prevent the steering knuckle weight from damaging the brake hose.
  9. Remove the rubber grease seal from the lower ball joint.
  10. Remove the lower ball joint grease fitting.
  11. Remove the lower ball joint from the lower control arm using J9519-E  .

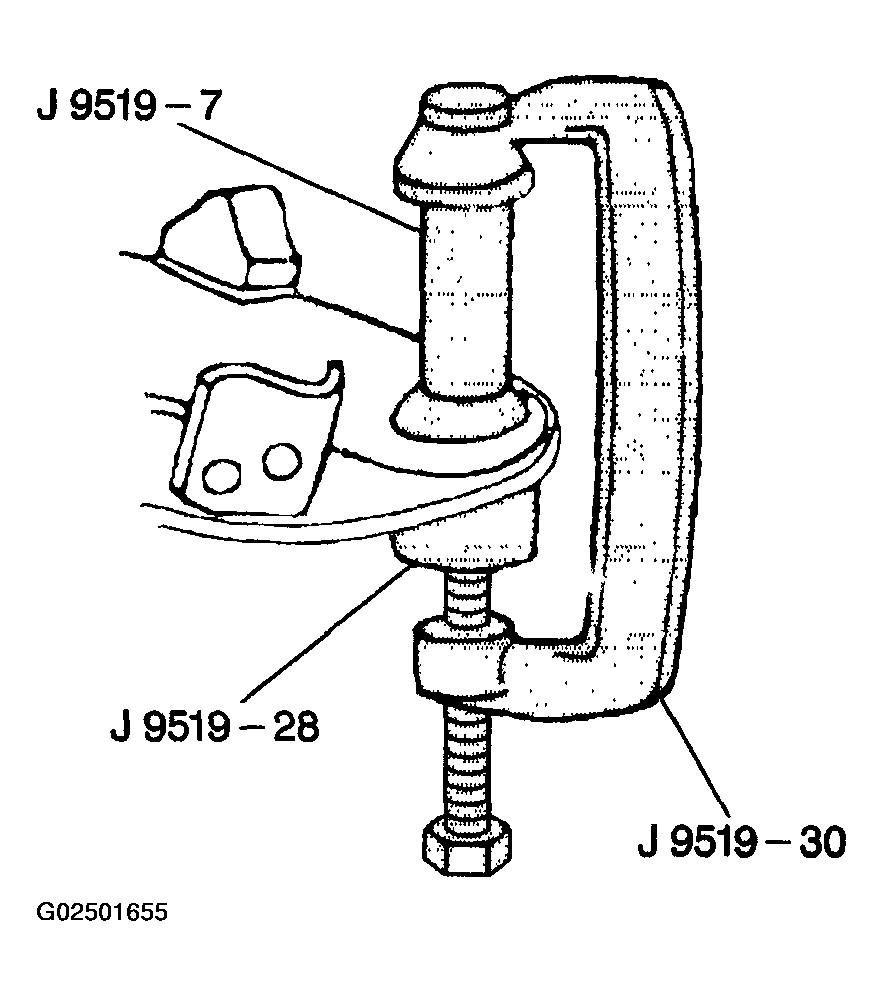

    Fig 3: Removing Lower Ball Joint From Lower Control Arm
    G02501655Courtesy of GENERAL MOTORS CORP.
