Trim Height Specifications

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

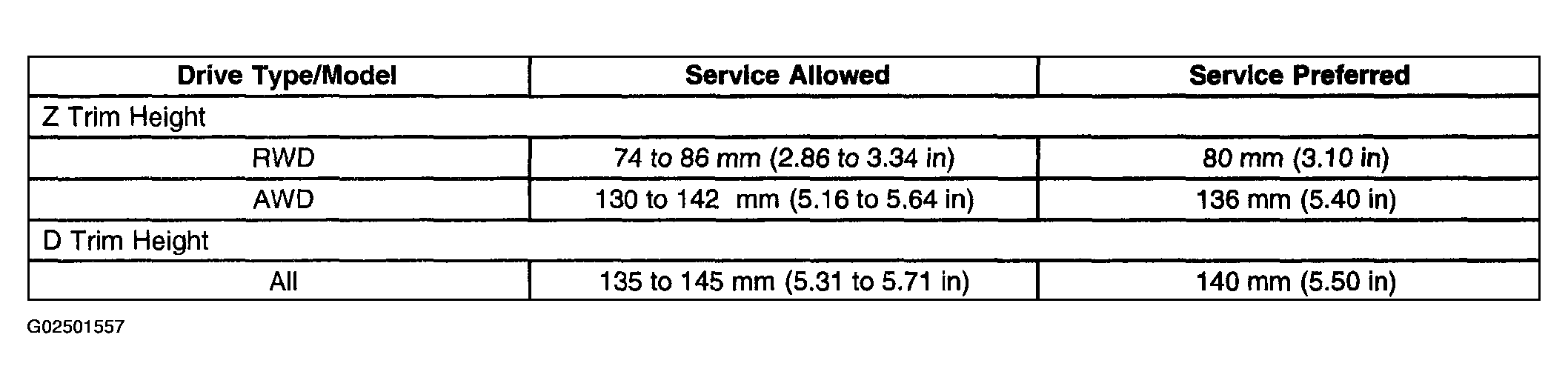

Fig 1: Trim Height Specifications
G02501557Courtesy of GENERAL MOTORS CORP.
