Cracked Inner Race

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

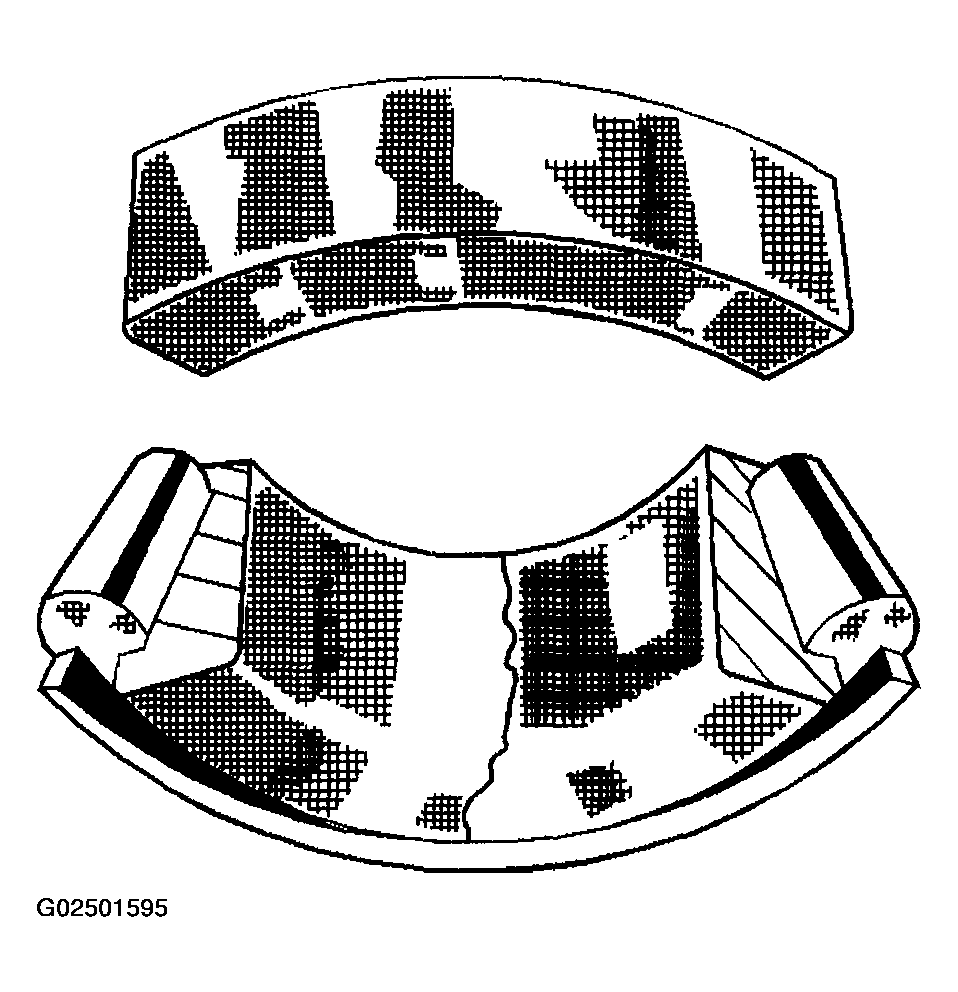

Fig 1: Identifying Cracked Inner Race Pattern
G02501595Courtesy of GENERAL MOTORS CORP.

The race is cracked due to improper fit, cocking, or poor bearing seats.

  1. Clean all the parts and the housings.
  2. Ensure the races are properly seated.
  3. Replace the bearing. Refer to WHEEL HUB, BEARING & SEAL REPLACEMENT (AWD) or WHEEL HUB, BEARING & SEAL REPLACEMENT (RWD) .
