Cage Wear

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

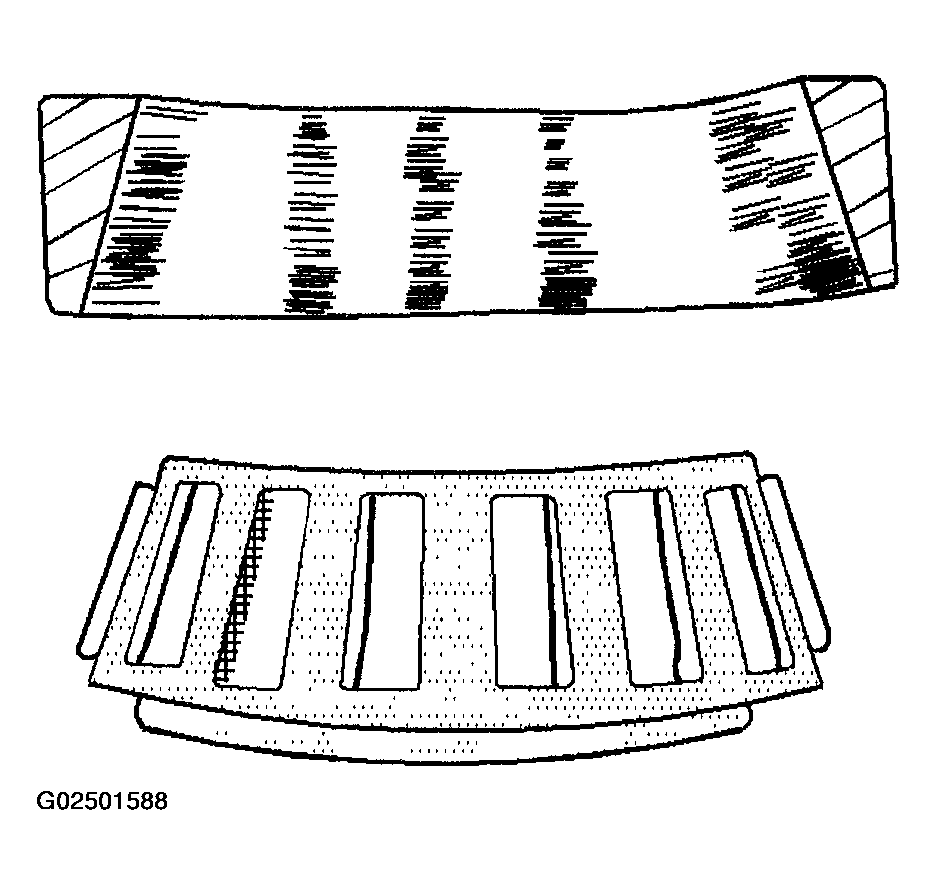

Fig 1: Identifying Cage Wear Pattern
G02501588Courtesy of GENERAL MOTORS CORP.

The wear around the outside diameter of the cage and the roller pockets is caused by abrasive material or inefficient lubrication.

  1. Check the seals.
  2. Clean all the parts and the housings.
  3. Replace the bearings. Refer to WHEEL HUB, BEARING & SEAL REPLACEMENT (AWD) or WHEEL HUB, BEARING & SEAL REPLACEMENT (RWD) .
