Wheel Bearings Diagnosis (Tapered): Brinelling

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

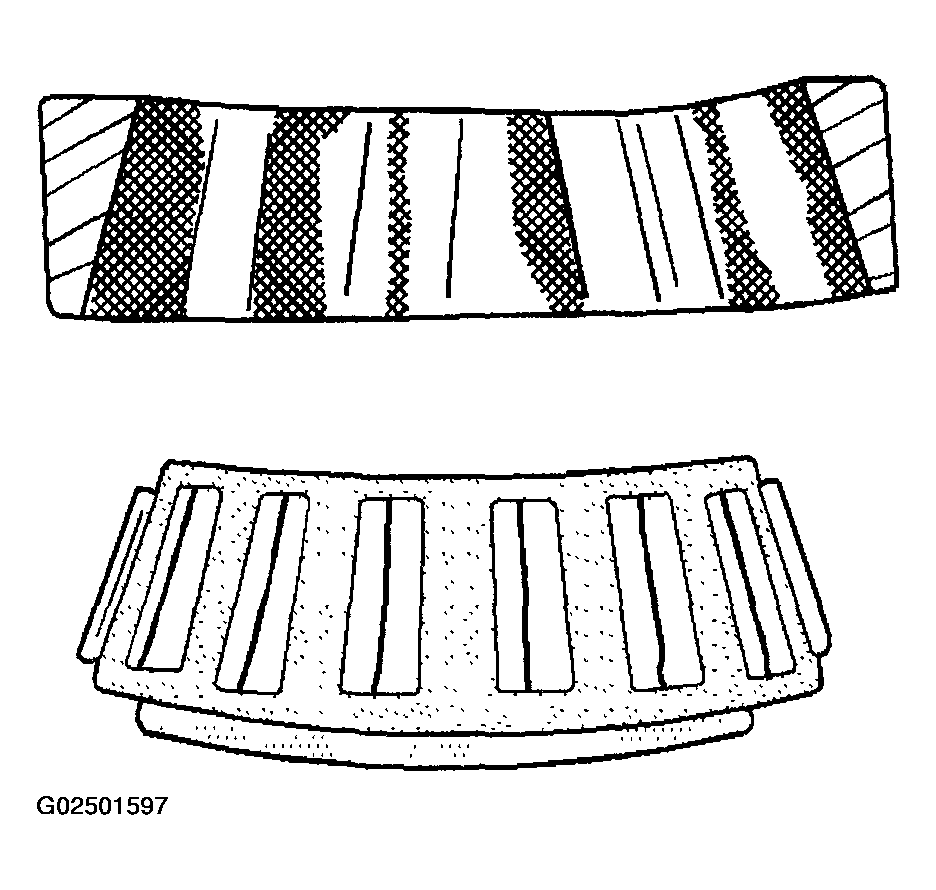

Fig 1: Identifying Brinelling Pattern
G02501597Courtesy of GENERAL MOTORS CORP.

The surface indentations in the race way are caused by the rollers under impact loading or from vibration while the bearing is not rotating.

  1. Clean all the parts and the housings.
  2. Replace the bearing. Refer to WHEEL HUB, BEARING & SEAL REPLACEMENT (AWD) or WHEEL HUB, BEARING & SEAL REPLACEMENT (RWD) .
