Bent Cage (2)

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

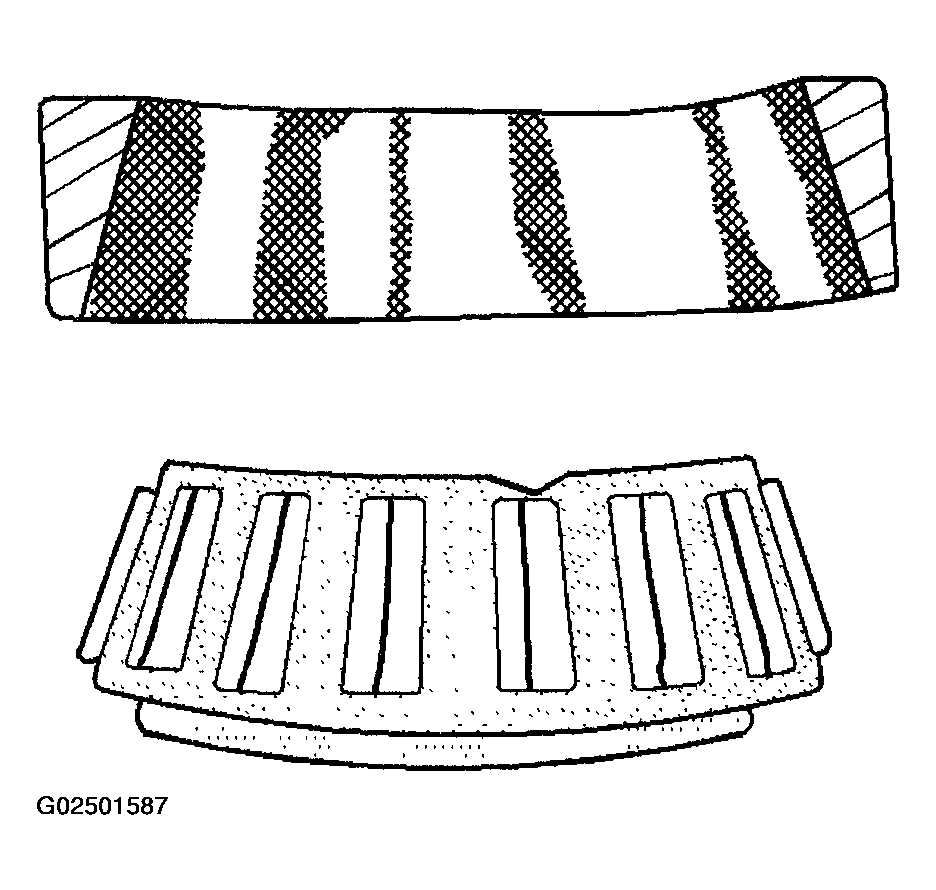

Fig 1: Identifying Bent Cage Pattern
G02501587Courtesy of GENERAL MOTORS CORP.

The cage may be damaged due to improper handling or improper tool usage. Replace the bearing. Refer to WHEEL HUB, BEARING & SEAL REPLACEMENT (AWD) or WHEEL HUB, BEARING & SEAL REPLACEMENT (RWD) .
