Vehicle Leads/Pulls

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

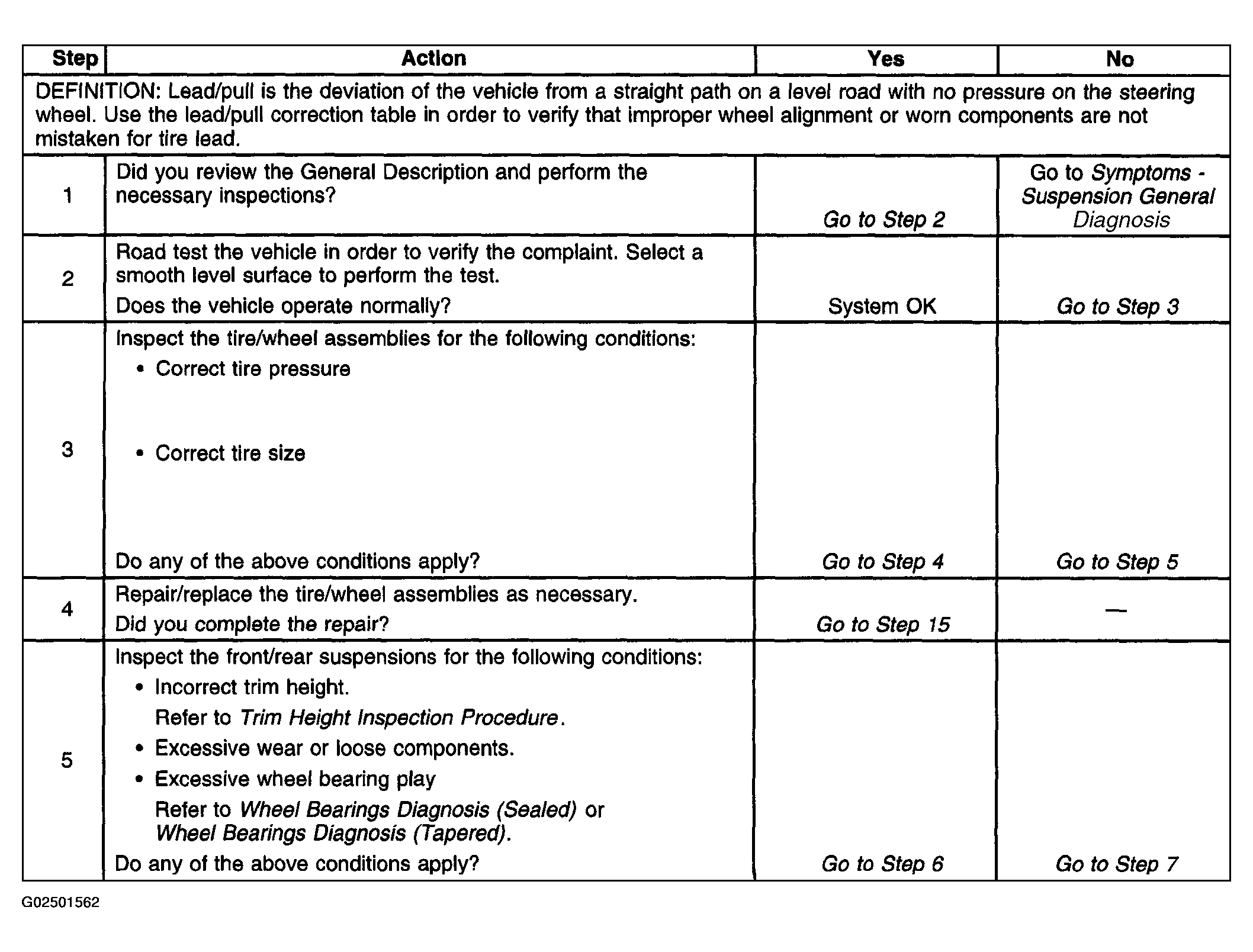

Fig 1: Identifying Vehicle Leads/Pulls Diagnosis (Steps 1-5)

Courtesy of GENERAL MOTORS CORP.

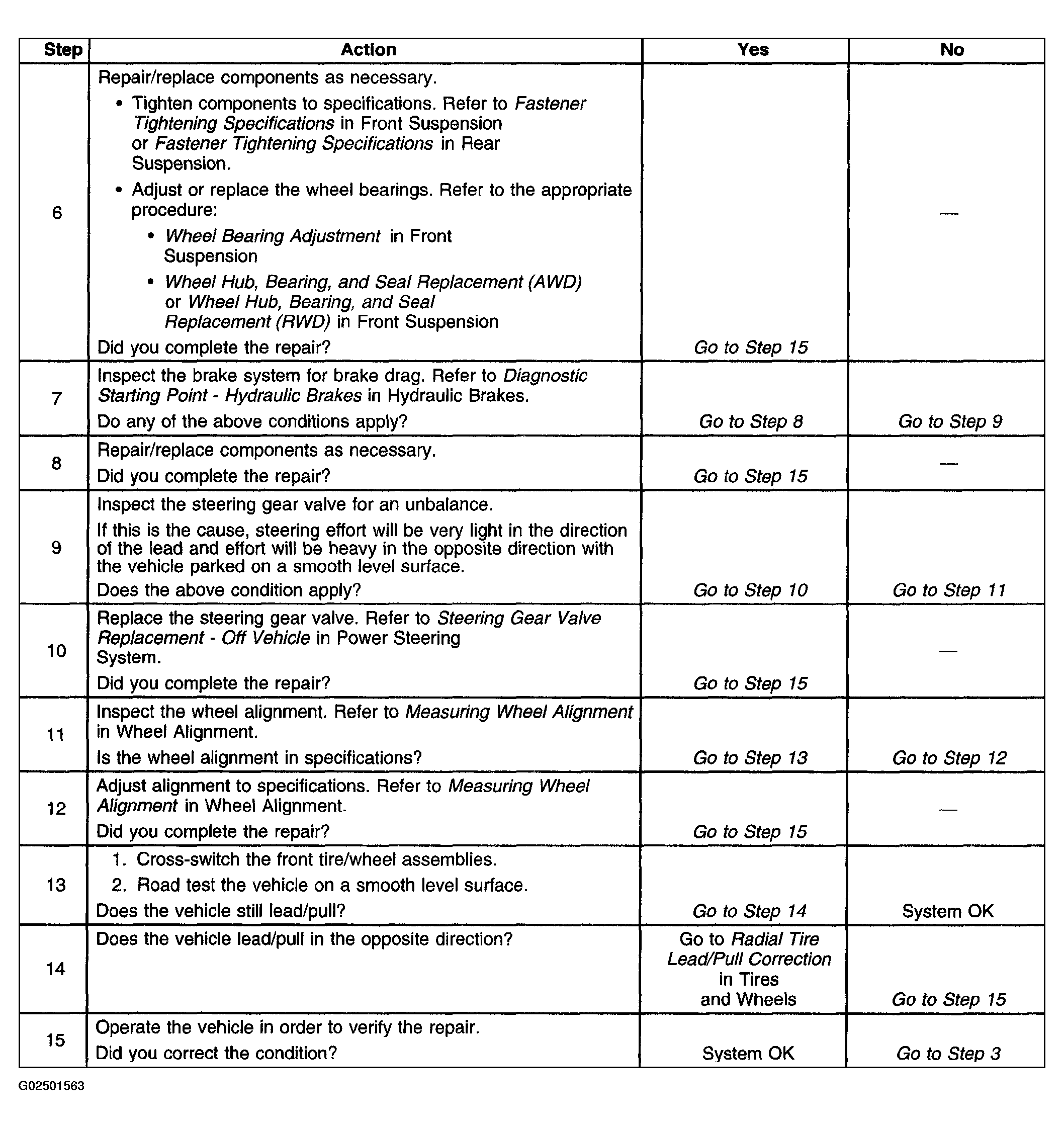

Fig 2: Identifying Vehicle Leads/Pulls Diagnosis (Steps 6-15)

Courtesy of GENERAL MOTORS CORP.
