WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

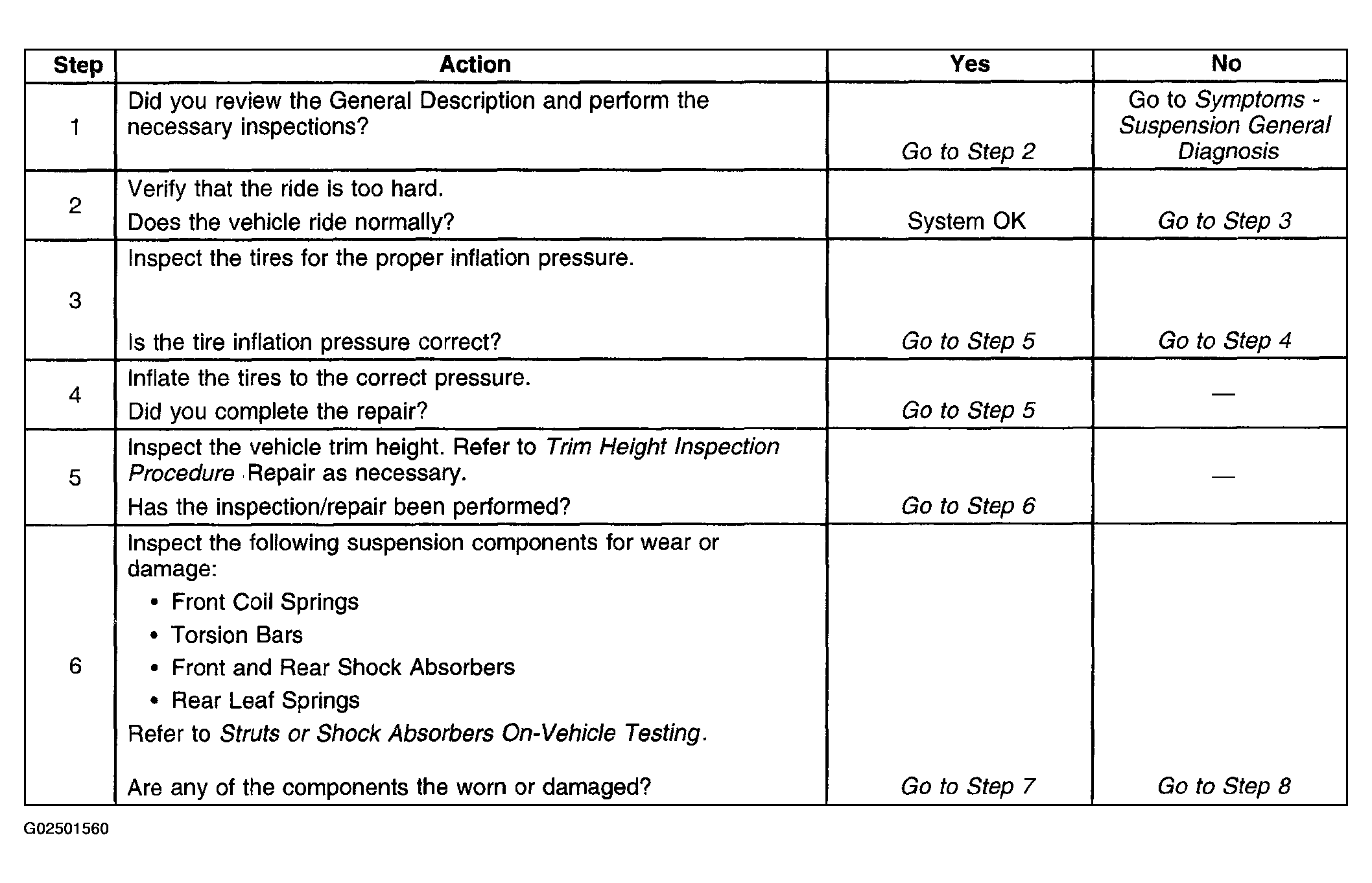

Fig 1: Identifying Ride Diagnosis - Too Hard (Steps 1-6)
Courtesy of GENERAL MOTORS CORP.

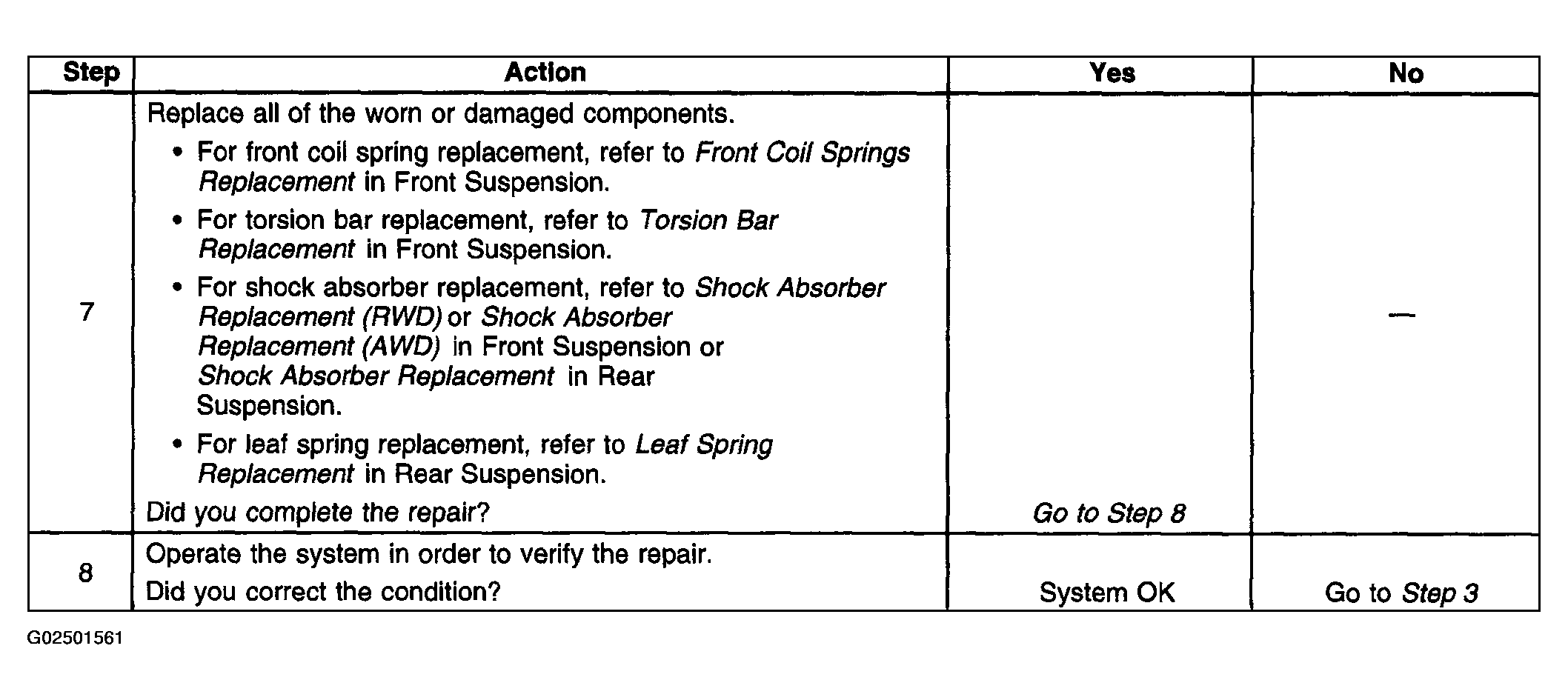

Fig 2: Identifying Ride Diagnosis - Too Hard (Steps 7-8)
