Body Leans Or Sways In Corners

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

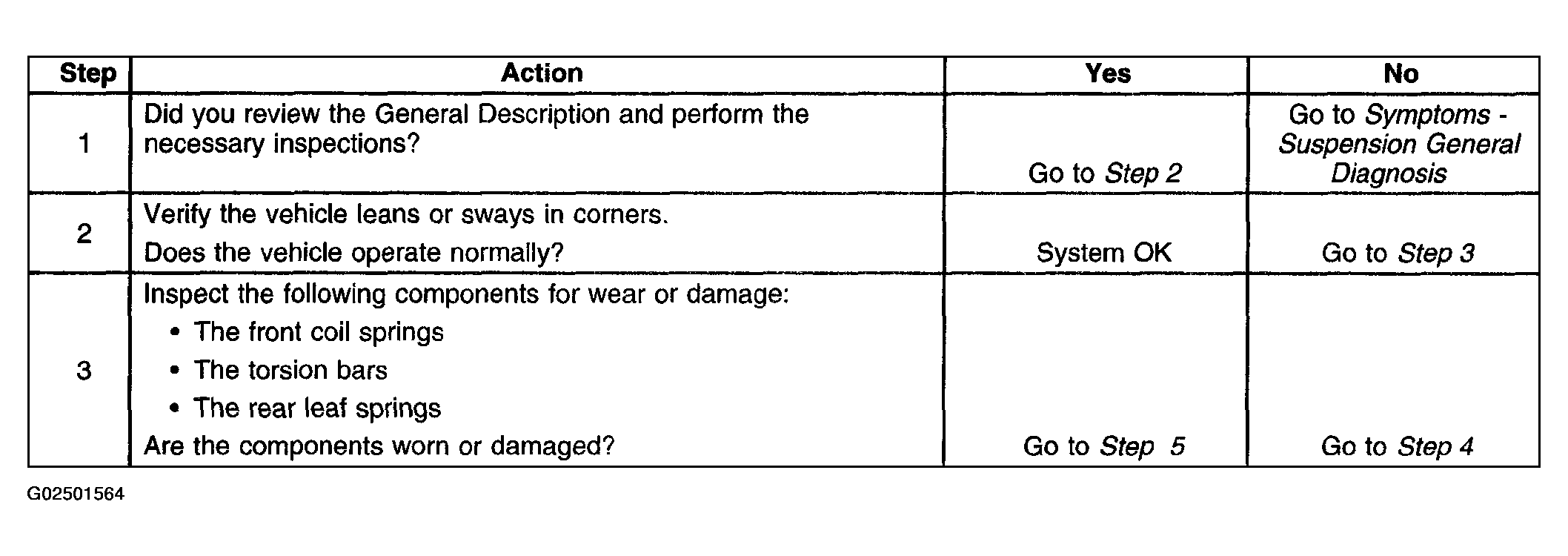

Fig 1: Identifying Body Leans Or Sways In Corners Diagnosis (Steps 1-3)
G02501564Courtesy of GENERAL MOTORS CORP.

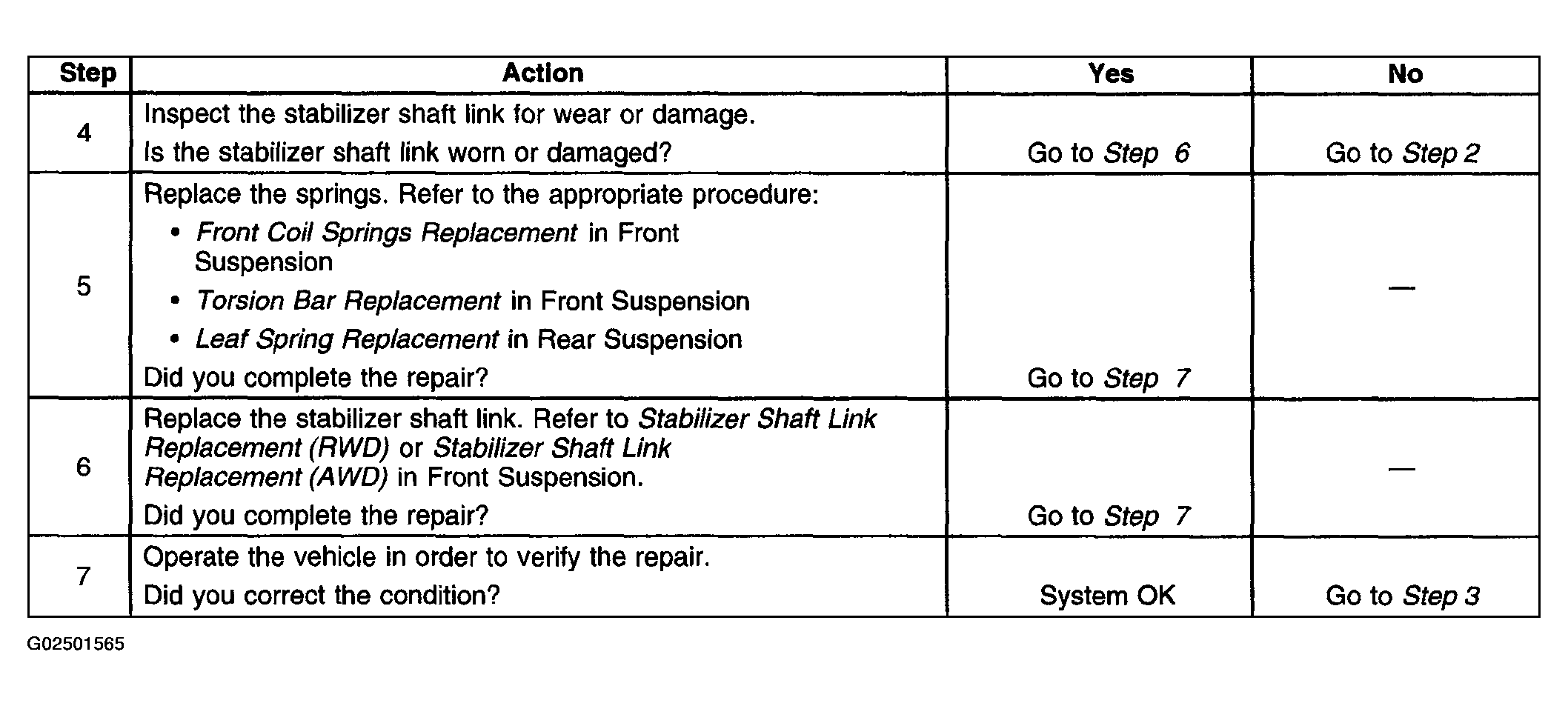

Fig 2: Identifying Body Leans Or Sways In Corners Diagnosis (Steps 4-7)
G02501565Courtesy of GENERAL MOTORS CORP.
