Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel. Refer to Steering Wheel Replacement  .
  2. Remove the steering wheel rear trim cover mounting screws.
  3. Remove the steering wheel rear trim cover.

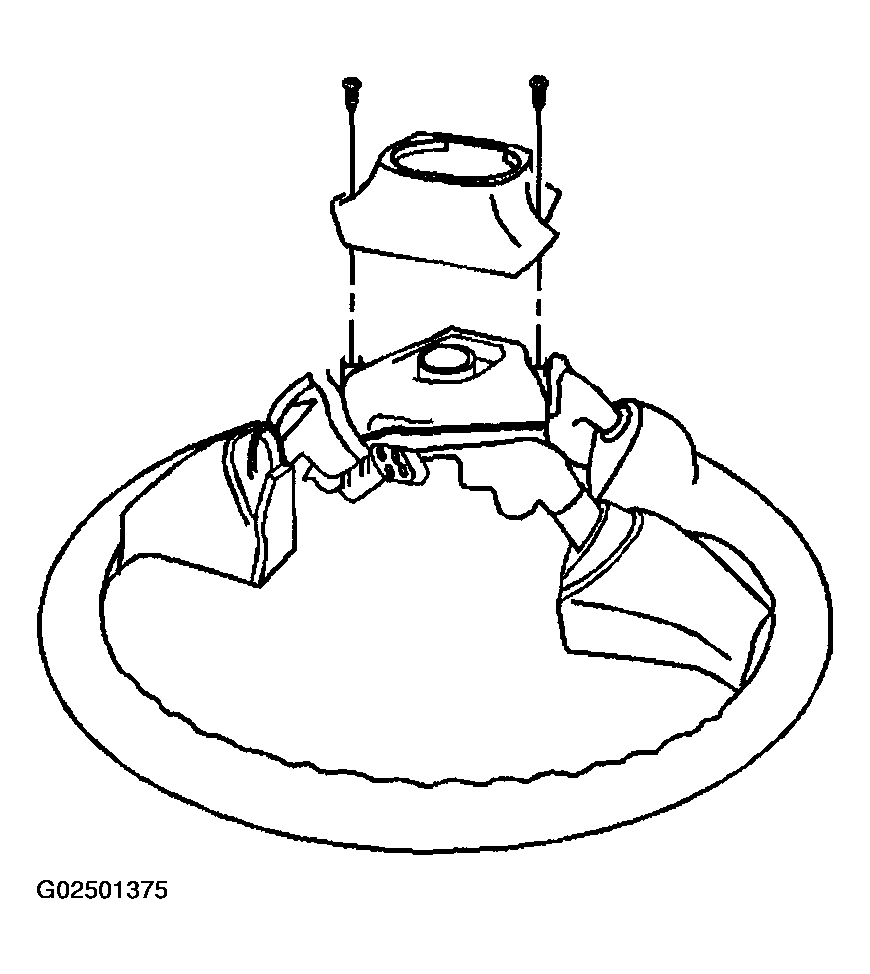

    Fig 1: Steering Wheel Rear Trim Cover
    G02501375Courtesy of GENERAL MOTORS CORP.
