Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower trim cover. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  2. Roll the shift lever boot back until the shift lever mounting screw is exposed.
  3. Remove the shift lever mounting screw.
  4. Remove the shift lever wiring from the retainer clips and tie strap.
  5. Disconnect the shift lever electrical connector.
  6. Remove the shift lever.

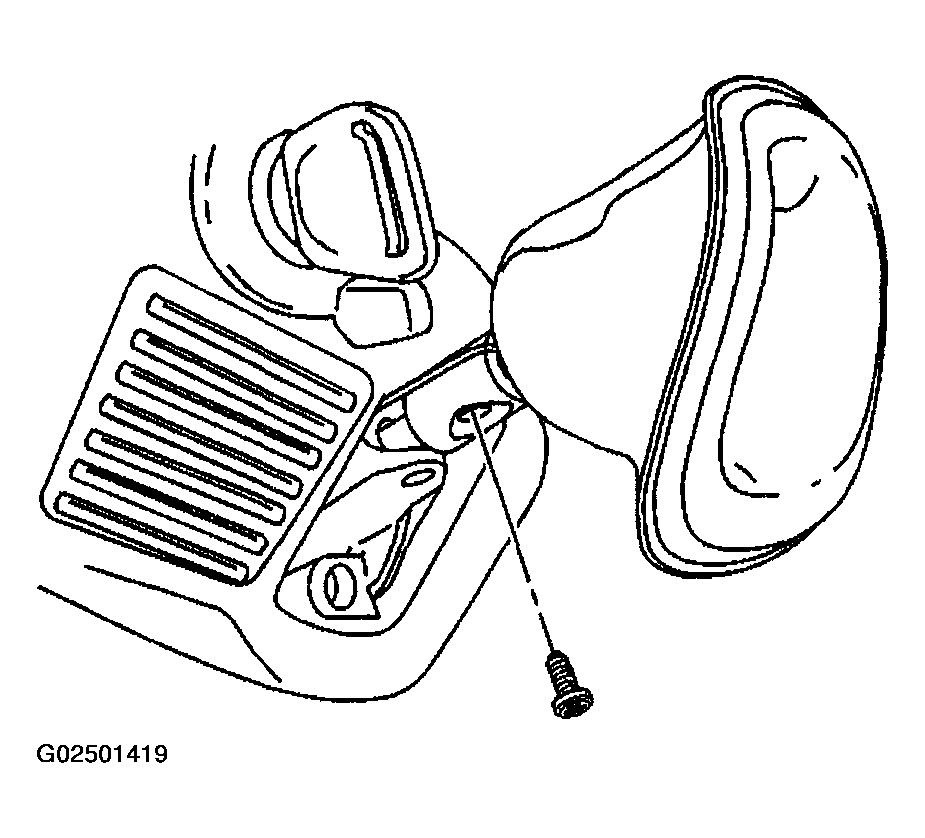

    Fig 1: Identifying Shift Lever
    G02501419Courtesy of GENERAL MOTORS CORP.
