Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering column trim cover. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  3. Disconnect the steering column electrical connectors.

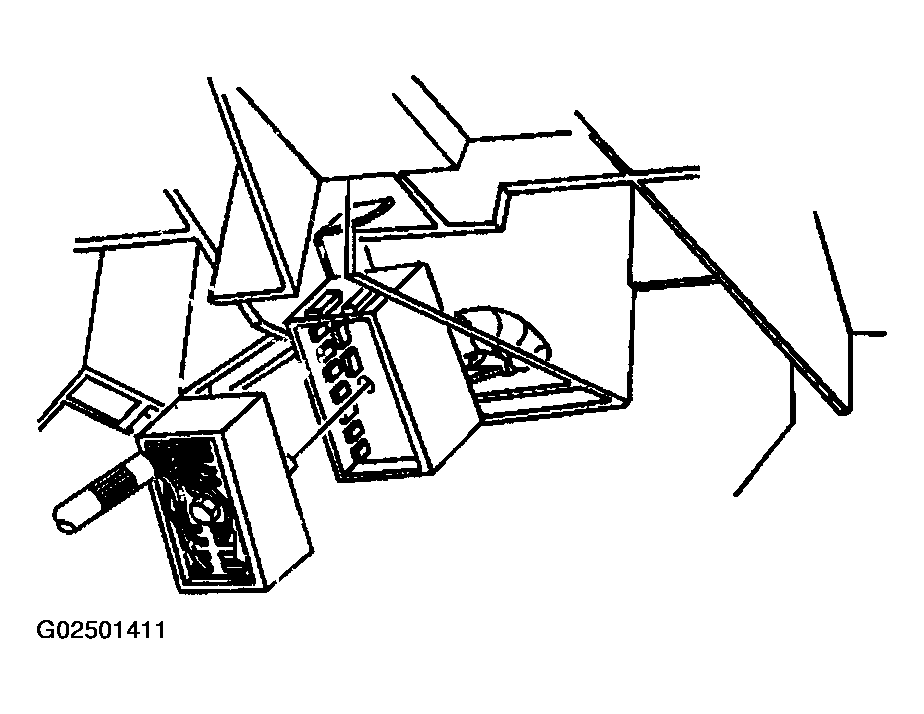

    Fig 1: Identifying Steering Column Electrical Connectors
    G02501411Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the multifunction switch connectors (2) from the steering column electrical connector (1).

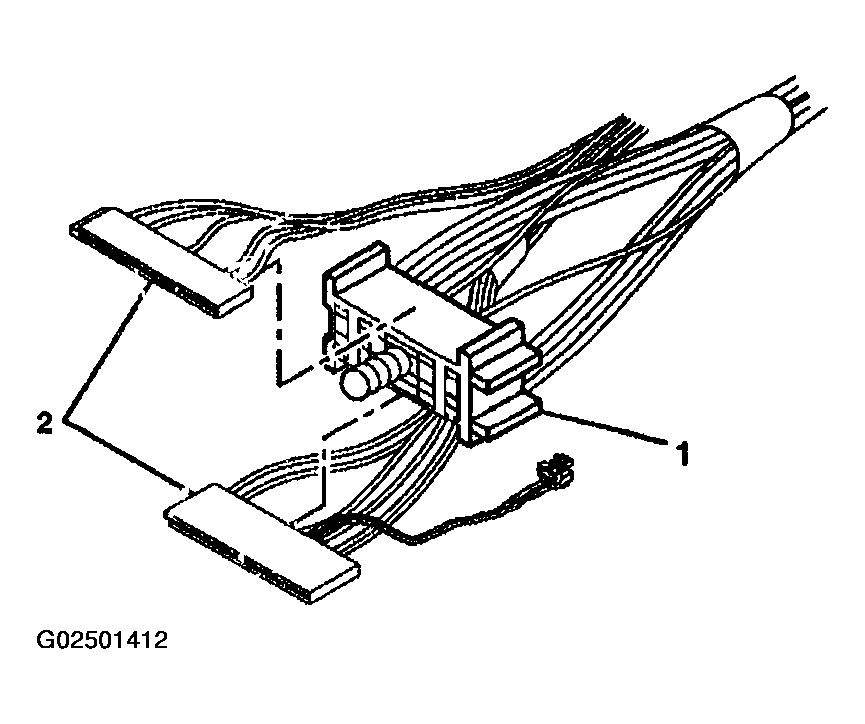

    Fig 2: Identifying Multifunction Switch Connectors
    G02501412Courtesy of GENERAL MOTORS CORP.
  5. Remove the steering column wiring harness from the wiring harness strap.
    Fig 3: Identifying Steering Column Wiring Harness
    G02501413Courtesy of GENERAL MOTORS CORP.
  6. Remove the wire harness straps from the steering column wire harness.
  7. Remove the multifunction switch mounting screws.
  8. Remove the multifunction switch.

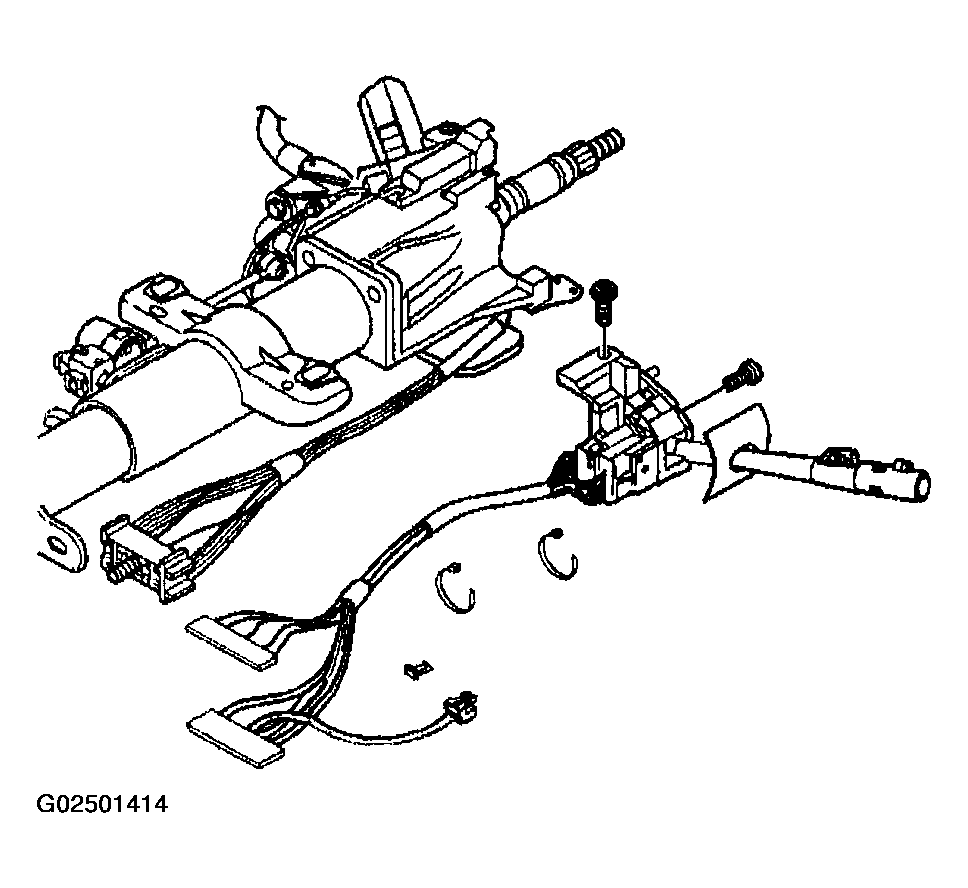

    Fig 4: Identifying Multifunction Switch
    G02501414Courtesy of GENERAL MOTORS CORP.
