Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  3. Disconnect the automatic transmission shift lock control actuator from the linear shift assembly.
    Fig 1: Identifying Automatic Transmission Shift Lock Control Actuator
    G02501403Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the shift cable from the linear shift assembly.

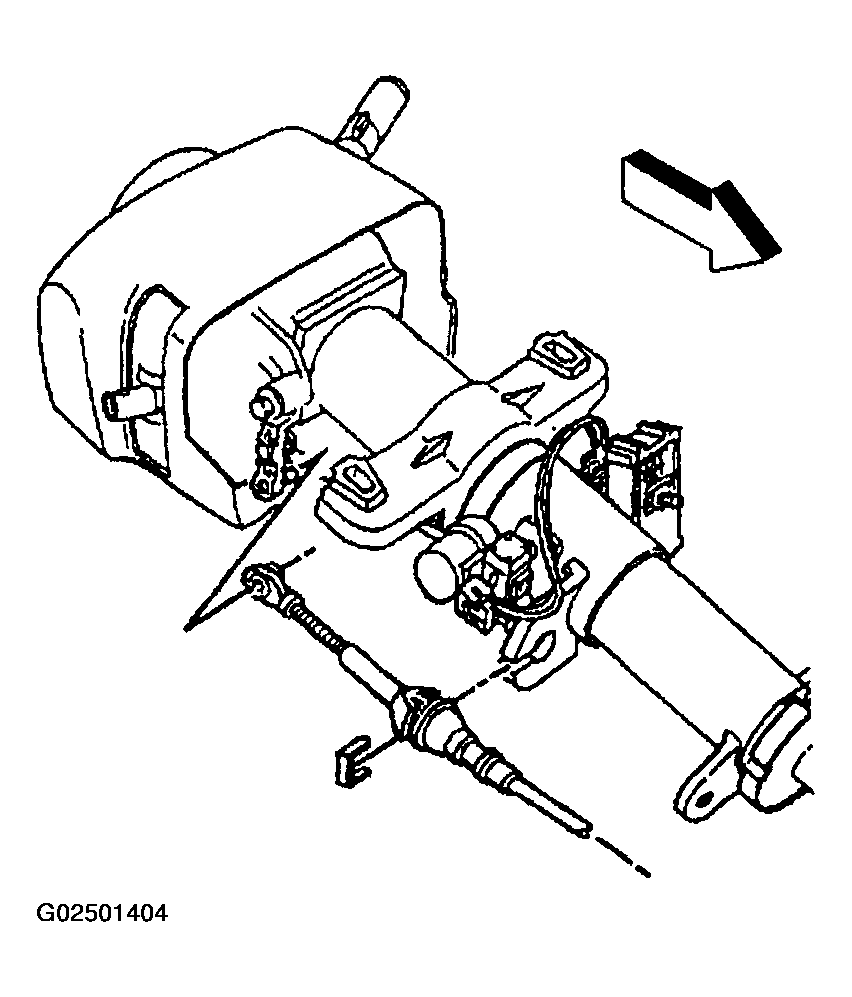

    5. Fig 2: Shift Cable & Linear Shift Assembly
    G02501404Courtesy of GENERAL MOTORS CORP.
  5. Remove the shift lever. Refer to Shift Lever Replacement - On Vehicle  .
  6. Disconnect the park lock cable assembly (1).
    Fig 3: Identifying Park Lock Cable Assembly
    G02501405Courtesy of GENERAL MOTORS CORP.
  7. Remove the linear shift assembly mounting screws.
  8. Remove the linear shift assembly from the steering column.

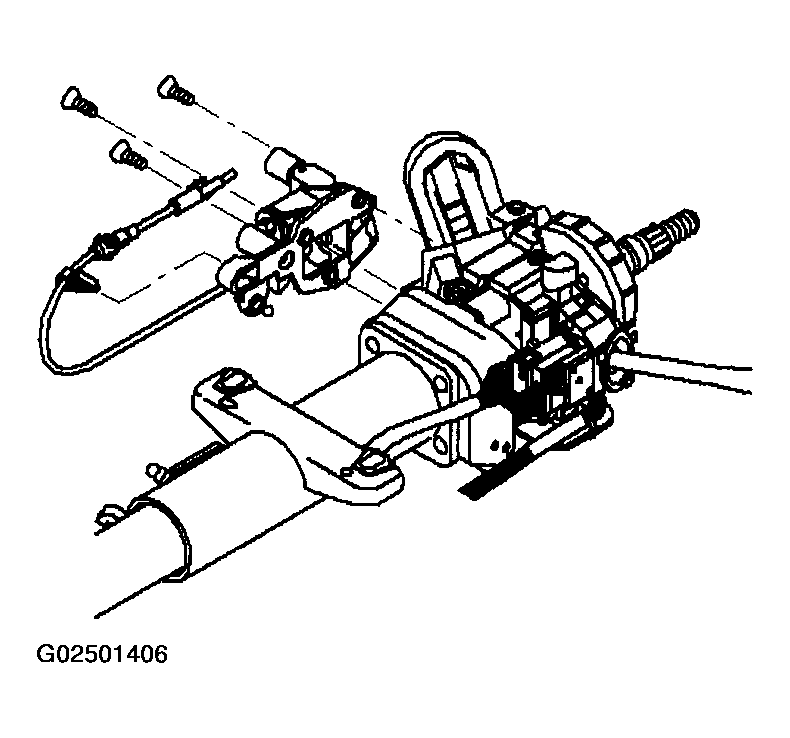

    9. Fig 4: Identifying Linear Shift Assembly
    G02501406Courtesy of GENERAL MOTORS CORP.
  9. In order to disassemble the linear shift assembly, refer to Linear Shift Assembly - Disassemble - Off Vehicle  .
