Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering wheel inflator module. Refer to AIR BAG MODULES .
  3. Remove the horn plunger contact from the steering wheel.
  4. Remove the horn switch to steering wheel mounting screws.
  5. Remove the horn switch.

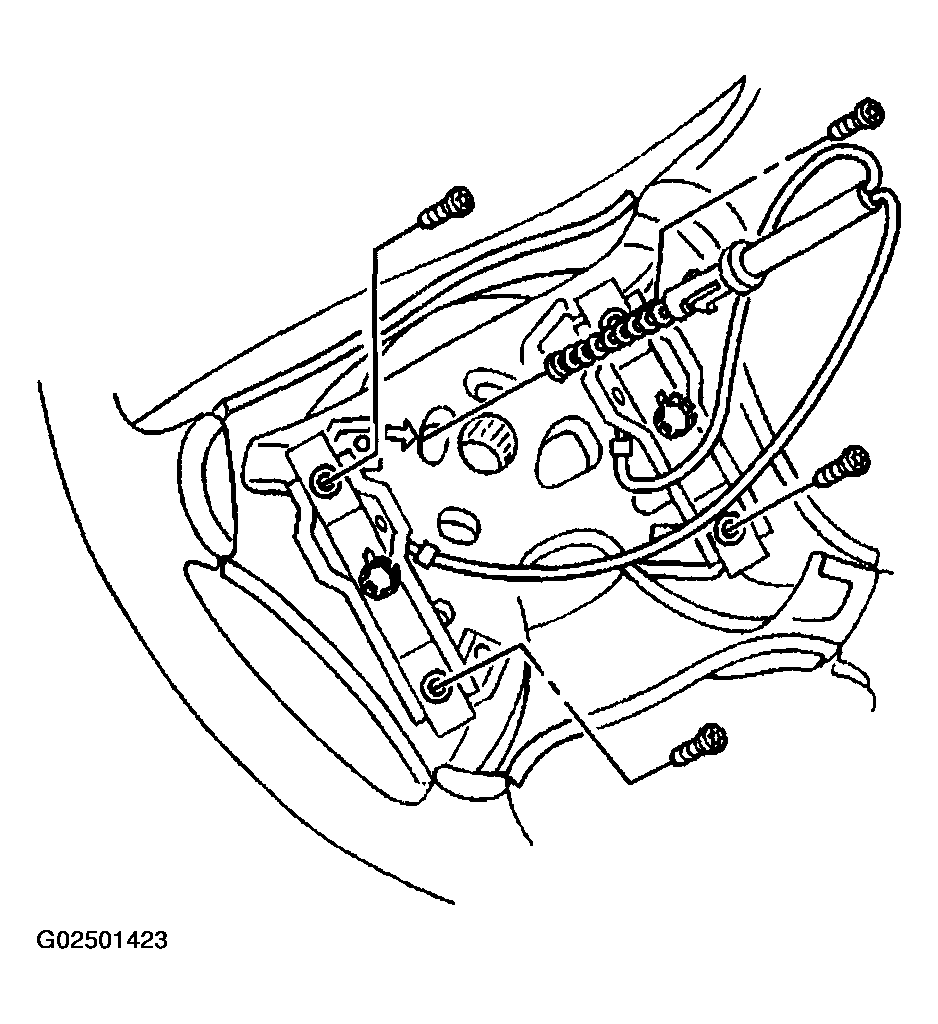

    Fig 1: Identifying Horn Switch
    G02501423Courtesy of GENERAL MOTORS CORP.
