Disassembly Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the stub shaft back and forth to drain the fluid.
  2. Insert a punch into the housing access hole to unseat the retaining ring (1).
  3. Remove the plug (2).
  4. Remove the O-ring seal (3).

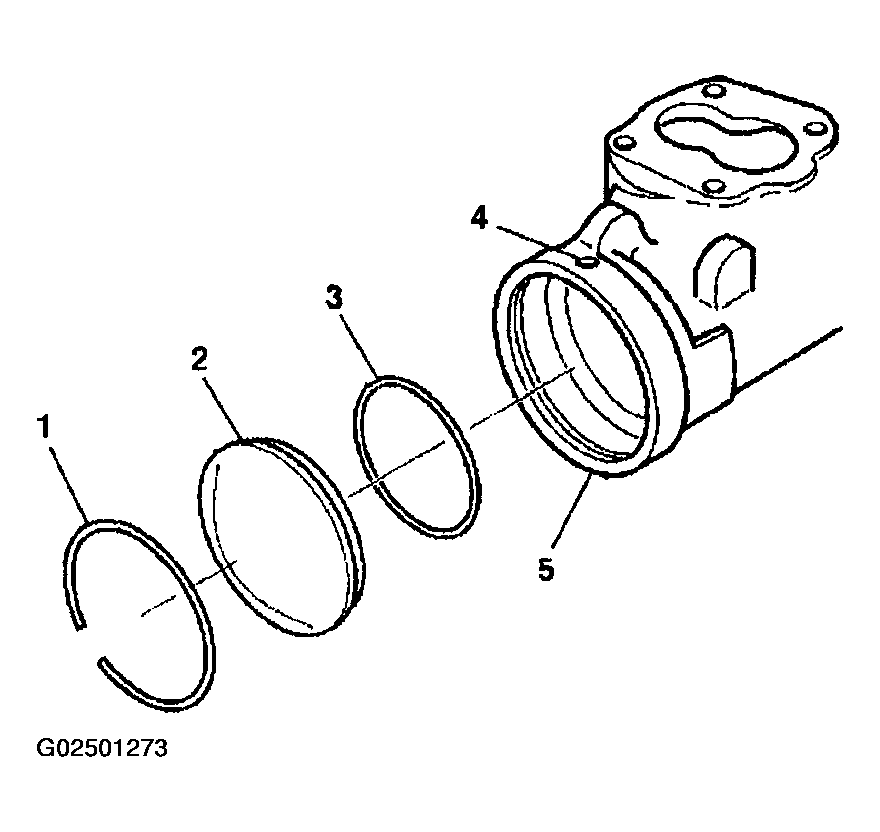

    Fig 1: Identifying Steering Gear Housing End Plug & O-Ring Seal
    G02501273Courtesy of GENERAL MOTORS CORP.
